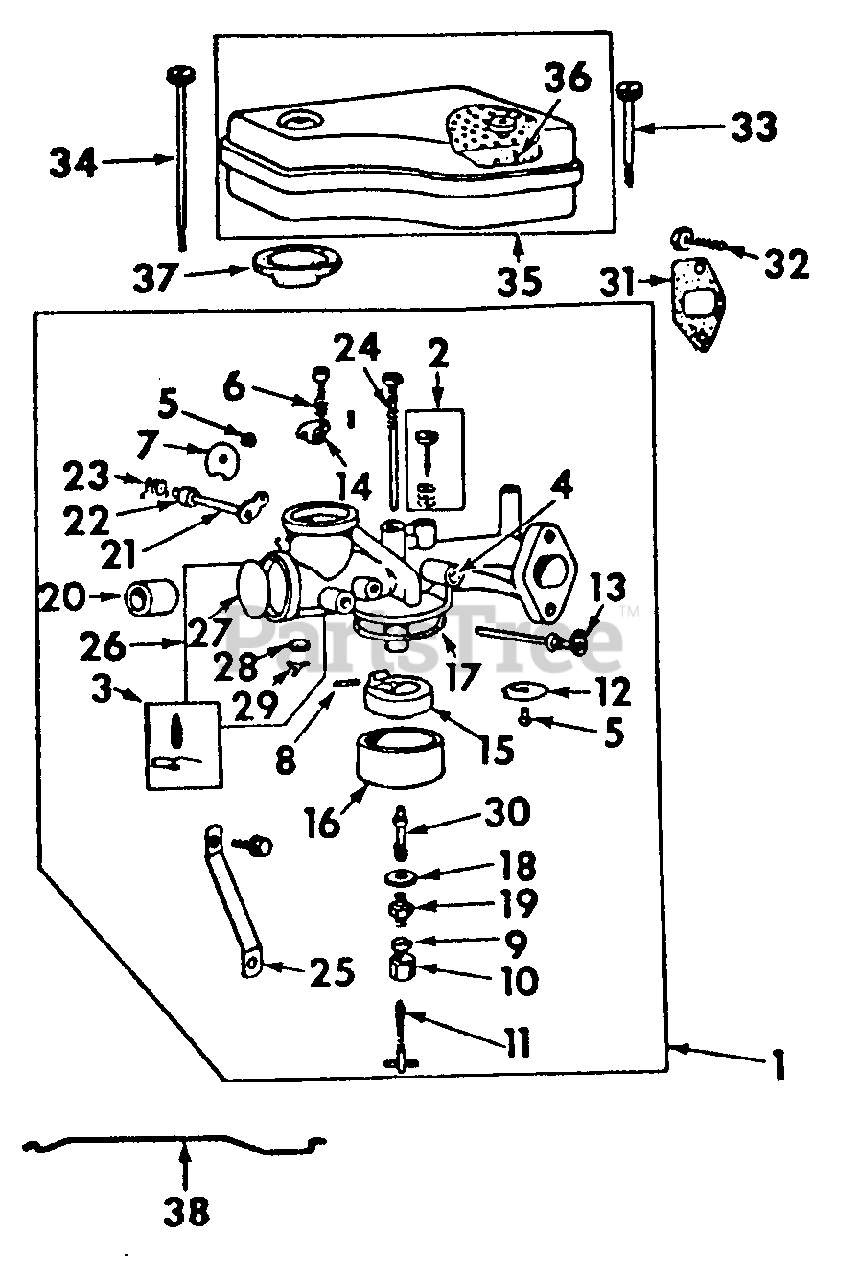

76 (0350010) - Cub Cadet Lawn Tractor Fuel System Parts Diagram

Lawn Tractor

Fuel System Parts Diagram

  • Title

1

Cub Cadet BS-491590

Carburetor Assy

$249.99

$

Usually ships in 2-12 days

0

2

Valve Assy, Idle

Note: (Order kit BS-394698)

$

$

Not available

3

Valve Assy, Float

Note: (Order kit BS-394698)

$

$

Not available

4

Bushing, Throttle Shaft

Note: (Discontinued for service)

$

$

Not available

5

Screw, Choke Valve

Note: (Discontinued for service)

$

$

Not available

6

Spring, Throttle Adj

Note: (Discontinued for service)

$

$

Not available

Cub Cadet BS-91920

Screw, 8-32 X 5/8 Znd Fil Hd Mach

$

$

Currently unavailable

~NLA

Pin, Throttle Stop

$

$

Not available

7

Valve, Choke

Note: (Discontinued for service)

$

$

Not available

8

Pin, Float

Note: (Order kit BS-394698)

$

$

Not available

9

Packing, Needle Jet

Note: (Discontinued for service)

$

$

Not available

10

Nut, Needle Jet Packing

Note: (Order kit BS-394698)

$

$

Not available

11

Valve, Needle

Note: (Order kit BS-394698)

$

$

Not available

12

Valve, Throttle

Note: (Discontinued for service)

$

$

Not available

13

Shaft & Lever Assy Throttle

Note: (Discontinued for service)

$

$

Not available

14

Stop, Throttle

Note: (Discontinued for service)

$

$

Not available

15

Float

Note: (Discontinued for service)

$

$

Not available

16

Bowl, Float

Note: (Discontinued for service)

$

$

Not available

17

Gasket, Bowl

Note: (Order kit BS-394698)

$

$

Not available

18

Washer, Float Bowl

Note: (Order kit BS-394698)

$

$

Not available

19

Retainer, Needle Jet

Note: (Order kit BS-394698)

$

$

Not available

20

Venturi

Note: (Discontinued for service)

$

$

Not available

21

Shaft & Lever Assy Choke

Note: (Discontinued for service)

$

$

Not available

22

~NLA

Washer, Choke Shaft Felt

$

$

Not available

23

Spring, Choke Return

Note: (Discontinued for service)

$

$

Not available

24

Jet, Idle Needle

Note: (Order kit BS-394698)

$

$

Not available

25

Bracket

Note: (Discontinued for service)

$

$

Not available

Cub Cadet 710-0432

Screw, 10-32 X 3/8 Hex Hd Tap

$

$

Not available

26

Body Assy

Note: (Discontinued for service)

$

$

Not available

27

Plug, Expansion

Note: (Discontinued for service)

$

$

Not available

28

~NLA

Filter, Drain

Note: (Discontinued for service)

$

$

Not available

29

Retainer

Note: (Discontinued for service)

$

$

Not available

30

Screw, Jet

Note: (Order kit BS-394698)

$

$

Not available

31

Cub Cadet BS-270824

Gasket, Carburetor
(Superseded to BS-272554S)

$5.49

$

In Stock, only 4 left!

0

32

Cub Cadet BS-93357

Screw, Carburetor Mtg

$

$

Not available

33

Cub Cadet BS-93622

Screw, Air Cleaner

$6.49

$

In Stock, Qty 10

0

34

Cub Cadet BS-93323

Screw, Air Cleaner

$7.49

$

In Stock, only 1 left!

0

35

Cub Cadet BS-391399

Cleaner Assy, Air

$

$

Not available

36

Cub Cadet BS-270528

Element
(Superseded to BS-270528S)

$15.99

$

In Stock, Qty 13

0

Cub Cadet BS-280111

Support, Air Cleaner Element

$

$

Currently unavailable

37

Cub Cadet BS-270539

Gasket, Air Cleaner

$8.99

$

In Stock, only 1 left!

0

38

Cub Cadet BS-261117

Link, Choke

$6.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394698

Kit, Carburetor Overhaul Valve Assy

$32.99

$

In Stock, Qty 14

0
