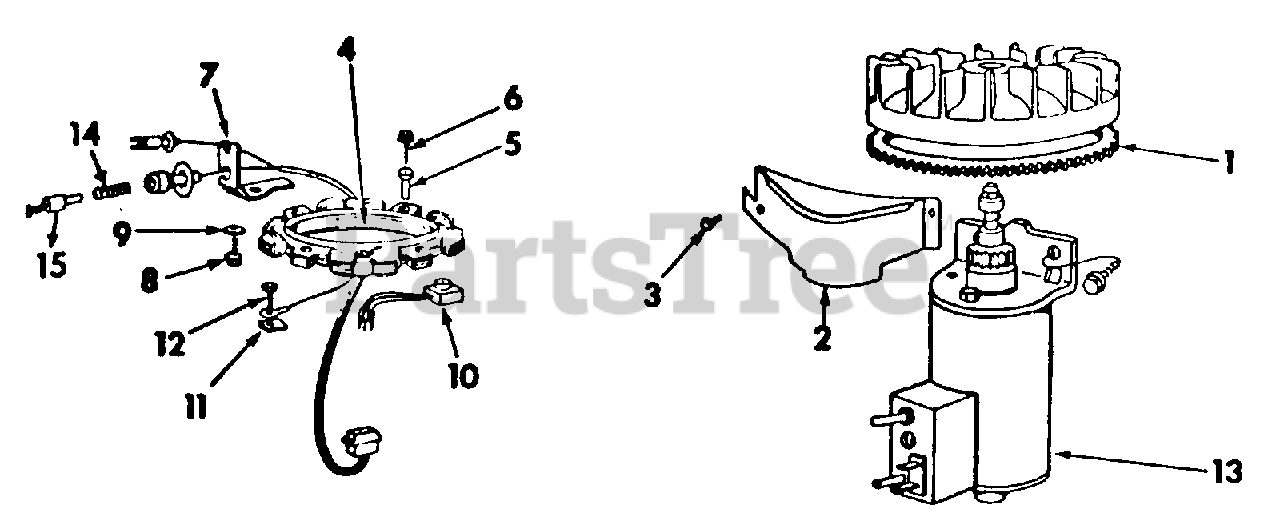

76 (0350010) - Cub Cadet Lawn Tractor Electrical & Starting Parts Diagram

Lawn Tractor

Electrical & Starting Parts Diagram

  • Title

1

Cub Cadet BS-391246

Gear, Flywheel Ring

$

$

Currently unavailable

Cub Cadet IH-549448-R1

Screw, 10-32 X 1-3/4 Slt F Hd Mach

$

$

Currently unavailable

~NLA

Nut, 10-32 Esna Stop

$

$

Not available

2

Cub Cadet BS-395405

Guard, Ring Gear

$

$

Not available

3

Cub Cadet BS-93410

Screw, Guard Mounting

$7.99

$

In Stock, only 1 left!

0

4

Cub Cadet BS-391529

Stator w/Bracket, Alternator
(Superseded to BS-696578)

$124.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-230976

Bushing, Stator

$4.49

$

Usually ships in 2-12 days

0

6

Cub Cadet BS-93621

Screw, Stator Mounting
(Superseded to BS-691183)

$

$

Not available

7

Cub Cadet BS-222211

Bracket, Fuse

$6.49

$

Usually ships in 2-12 days

0

8

Cub Cadet BS-93394

Screw, Bracket Mounting
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

Washer, .203 X .500 X .041 Znd

Note: (Common Hardware, Purchase Locally)

$

$

Not available

9

Washer, Bracket

Note: (Discontinued for service)

$

$

Not available

10

Cub Cadet BS-390892

Rectifier

$21.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-222095

Retainer

$

$

Currently unavailable

12

Cub Cadet BS-93705

Screw, 8-32 X 3/8 Hex Hd
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 8

0

13

Motor Assy, Starter

Note: (For list of components, see starter motor)

$

$

Not available

14

Cub Cadet BS-261269

Spring, Diode

$2.49

$

Usually ships in 2-12 days

0

15

Cub Cadet BS-391507

Diode

$17.99

$

Usually ships in 2-12 days

0
