76 (0350001U) - Cub Cadet Lawn Tractor Front Axle & Connections Parts Diagram

Lawn Tractor

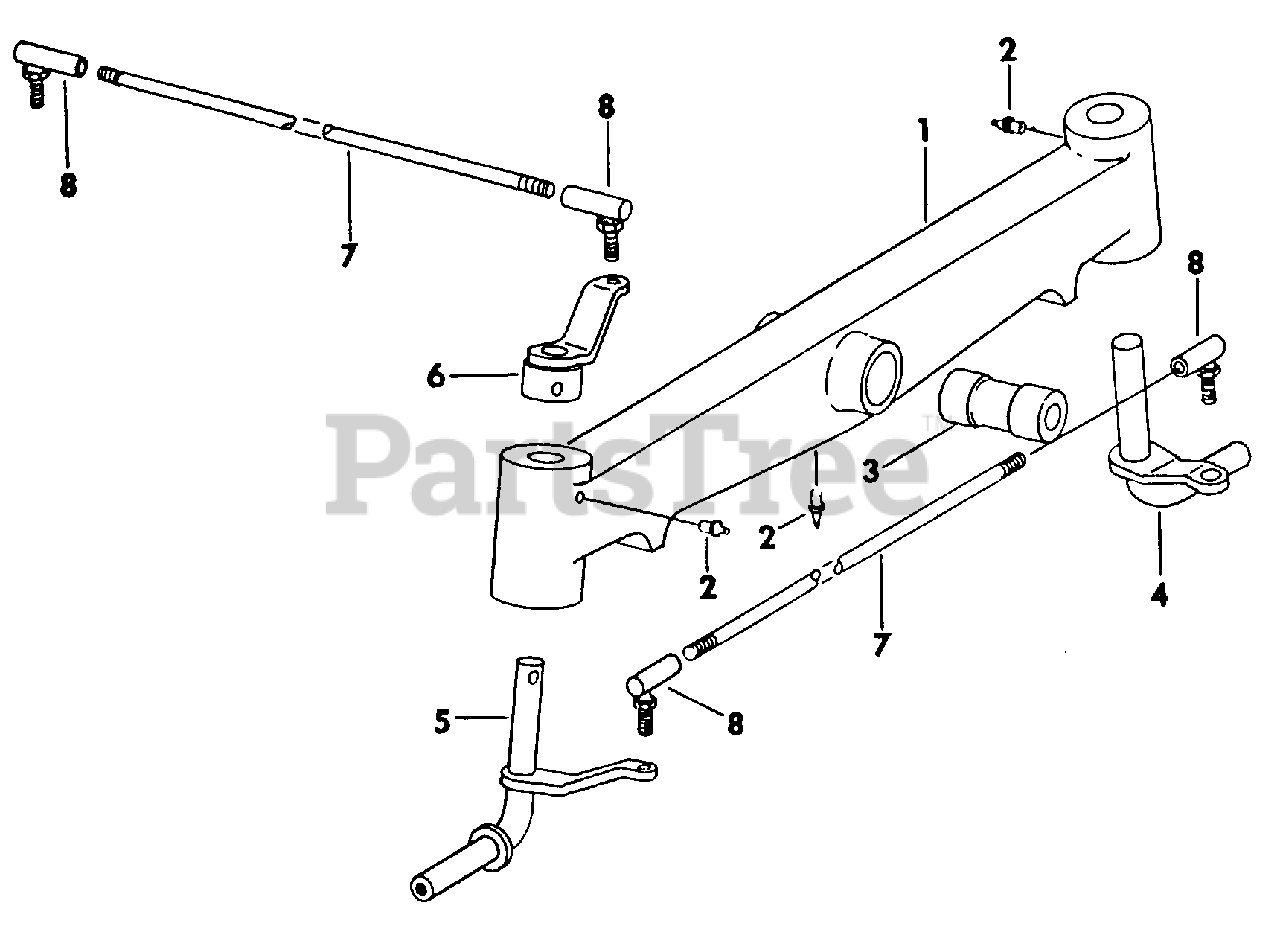

Front Axle & Connections Parts Diagram

  • Title

1

Cub Cadet 759-3268

Axle, Front

$

$

Not available

Screw, 1/2-13 X 3-3/4 Znd Hex Hd

Note: (Common Hardware, Purchase Locally)

$

$

Not available

2

Cub Cadet 737-3000

Fitting, 3/16 Drive Type Str Lube
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

3

Cub Cadet 711-3063

Bushing, Axle Pivot
(Superseded to 911-3063)

$

$

Not available

Screw, 1/2-13 X 4 Znd Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

4

Cub Cadet 703-0355

Knuckle Assy, LH

$

$

Not available

Washer, 13/32 X 1-1/2 X 11 Ga Flat

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Screw, 3/8-16 X 3/4 Hex Hd Cap

Note: (Common Hardware, Purchase Locally)

$

$

Not available

5

Cub Cadet 703-0357

Knuckle Assy, RH

$

$

Not available

6

Cub Cadet 703-0358

Arm Assy, Drag Link

Variations

Cub Cadet 703-0358-0637

LINK ASSEMBLY-DRAG - POWDER BLACK (0637)

$

$

Not available

$

$

Cub Cadet 715-3009

Pin, 5/16 X 2 Hv Coiled Spring

$9.99

$

In Stock, only 1 left!

0

7

Cub Cadet 711-3057

Link, Drag

$

$

Not available

Cub Cadet 712-3001

Nut, 3/8-24 Hex Jam
(Superseded to 912-3001)

$6.99

$

In Stock, Qty 17

0

8

Cub Cadet 723-3000

Joint Assy, Drag Link Ball
(Superseded to 923-3000)

$21.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3002

Nut, 3/8-24 C-Z Slt Hex Hd
(Superseded to 912-3002)

$6.99

$

In Stock, Qty 8

0

Cub Cadet 714-0507

Pin, 3/32 X 3/4 C-Z Cotter

$4.49

$

In Stock, Qty 12

0
