75969 TE (6000) - Toro 132cm Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 400000000 - 402079999) CONSOLE AND CONTROL PANEL ASSEMBLY Parts Diagram

132cm Z Master Zero-Turn Mower, Side-Discharge Deck

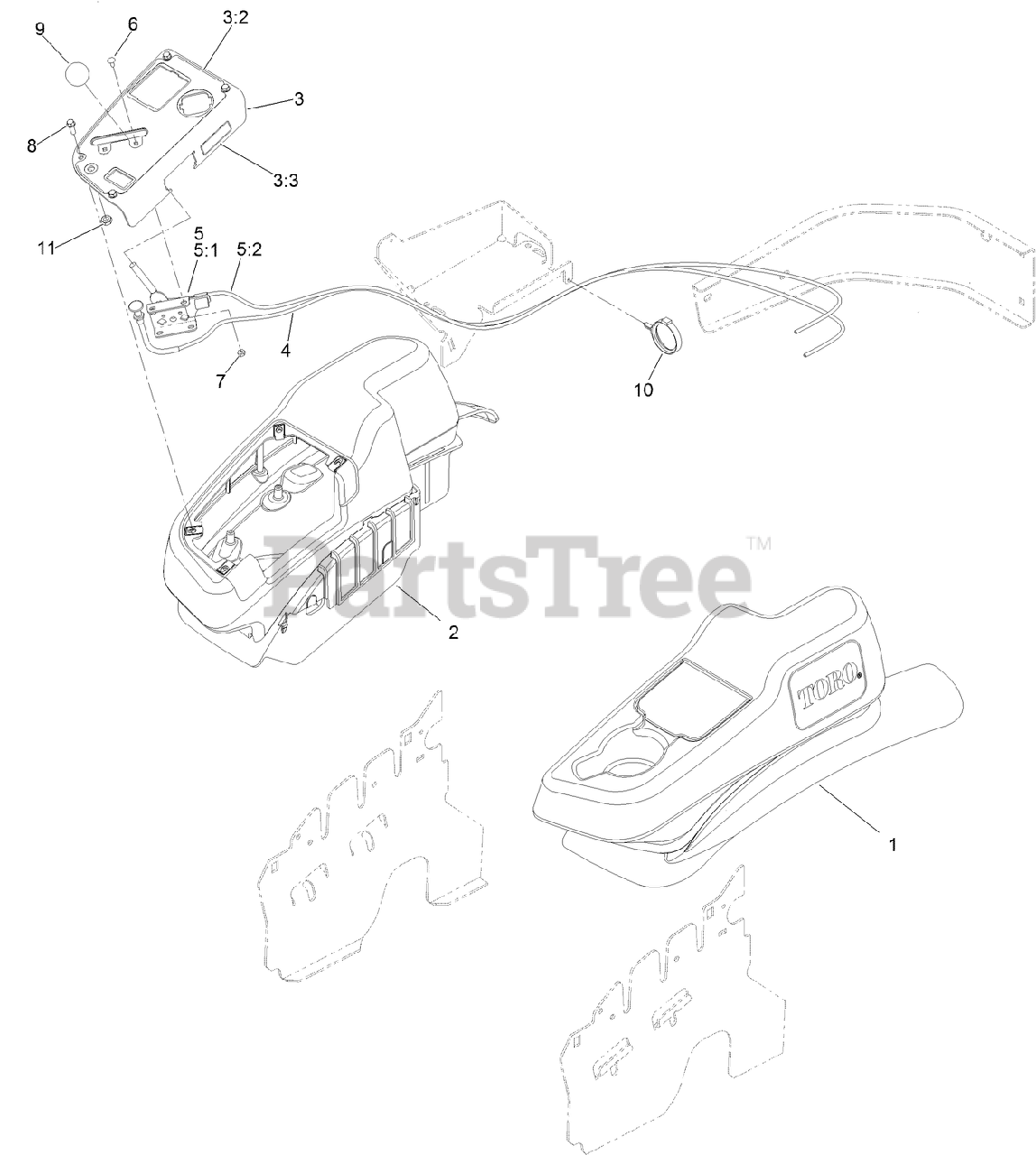

CONSOLE AND CONTROL PANEL ASSEMBLY Parts Diagram

  • Title

1

Toro 115-7403

LH NARROW FENDER/CONSOLE ASM

$298.99

$

Usually ships in 3-6 days

0

2

Toro 115-7402

RH NARROW FENDER/CONSOLE ASM

$298.99

$

Usually ships in 3-6 days

0

3

Toro 114-9837

CONTROL PANEL ASM

$125.99

$

Usually ships in 3-6 days

0

3:2

Toro 120-5898

DECAL-CONTROL PANEL

$41.99

$

Usually ships in 3-6 days

0

3:3

Toro 114-4466

DECAL-FUSES

$6.49

$

In Stock, only 1 left!

0

4

Toro 115-2753

CONTROL-CHOKE

$66.99

$

In Stock, only 1 left!

0

5

Toro 110-5727

THROTTLE CONTROL ASM

$88.99

$

In Stock, only 3 left!

0

5:1

Toro 112-2334

LEVER-THROTTLE

$82.99

$

Usually ships in 3-6 days

0

5:2

Toro 110-5728

CABLE-THROTTLE
(Superseded to 110-5727)

$88.99

$

In Stock, only 3 left!

0

6

Toro 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 14

0

9

Toro 1-603175

KNOB-BALL

$11.99

$

In Stock, Qty 6

0

10

Toro 117-7817

CLAMP-HARNESS

$7.99

$

Usually ships in 3-6 days

0

11

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0
