75967 (6000) - Toro 60" Z Master Zero-Turn Mower, Side-Discharge Deck (SN: 400000000 - 402079999) SUSPENSION PLATFORM ASSEMBLY Parts Diagram

60" Z Master Zero-Turn Mower, Side-Discharge Deck

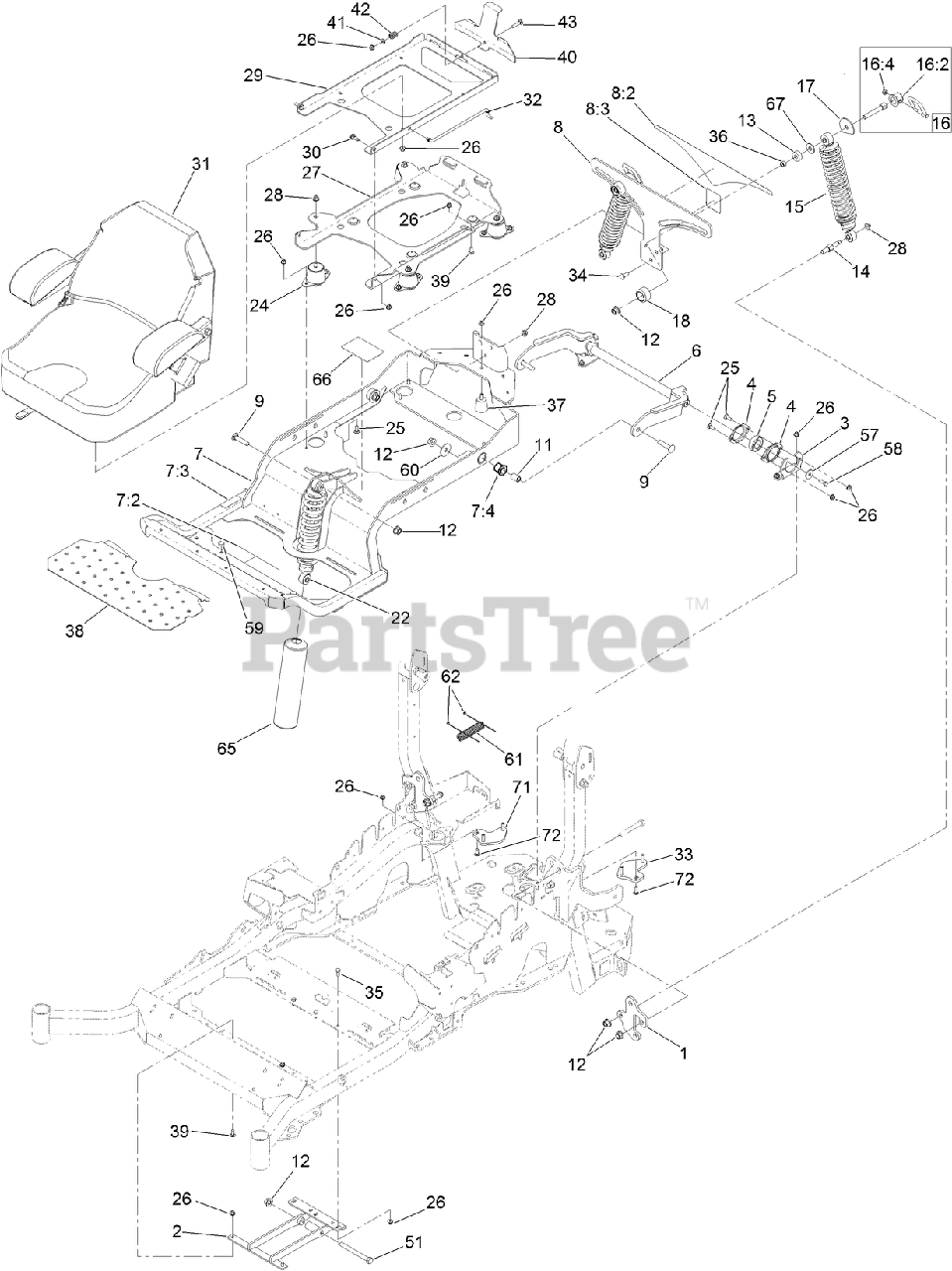

SUSPENSION PLATFORM ASSEMBLY Parts Diagram

  • Title
1

Toro 136-1674-01

PLATE-MOUNT, SHOCK

$23.99

$

Usually ships in 3-6 days

0

2

Toro 131-6327-01

MOUNT-LOWER

$139.99

$

Usually ships in 3-6 days

0

3

Toro 127-6759-03

BRACKET-BEARING

$23.99

$

Usually ships in 3-6 days

0

4

Toro 127-6743

HOUSING-BEARING, FLANGE

$5.49

$

Usually ships in 3-6 days

0

5

Toro 1-653346

BEARING

$71.99

$

In Stock, Qty 20+

0

6

Toro 127-6754-03

ARM-TRAILING

$270.99

$

Usually ships in 3-6 days

0

7

Toro 132-5057

SUBFRAME ASM

$995.99

$

Usually ships in 3-6 days

0

7:2

Toro 132-0871

DECAL-DANGER

$9.49

$

In Stock, only 2 left!

0

7:3

Toro 115-9625

DECAL-BRAKE, PARKING

$5.49

$

Usually ships in 3-6 days

0

7:4

Toro 127-6745

BUSHING-FLANGE

$11.99

$

Usually ships in 3-6 days

0

8

Toro 133-1808

BRACKET-MOUNTING

$203.99

$

Usually ships in 3-6 days

0

8:2

Toro 132-5067

DECAL-ADJUSTMENT, RIDE

$25.99

$

Usually ships in 3-6 days

0

8:3

Toro 132-5063

DECAL-LOCK, CAM

$5.99

$

Usually ships in 3-6 days

0

9

Toro 127-6768

SCREW-CARR

$3.49

$

Usually ships in 3-6 days

0

11

Toro 127-6751

SPACER-ALUMINUM

$9.49

$

Usually ships in 3-6 days

0

12

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

13

Toro 131-8801

SPACER

$8.99

$

Usually ships in 3-6 days

0

14

Toro 131-6348

BOLT-SHOULDER

$16.99

$

Usually ships in 3-6 days

0

15

Toro 133-1815

SHOCK/SPRING ASM

$131.99

$

In Stock, only 2 left!

0

16

Toro 131-8843

CAM LOCK ASM

$34.99

$

Usually ships in 3-6 days

0

16:2

Toro 107-1644

CAP-LOCK

$40.99

$

In Stock, only 2 left!

0

16:4

Toro 119-4038

NUT-HEX

$2.99

$

In Stock, Qty 20+

0

17

Toro 131-4646

PLATE-STOP

$5.49

$

Usually ships in 3-6 days

0

18

Toro 131-4647

KNOB-FRONT

$18.99

$

Usually ships in 3-6 days

0

22

Toro 136-8956

SHOCK/SPRING ASM
(Superseded to 136-1719)

$131.99

$

Usually ships in 3-6 days

0

24

Toro 109-9034

ISOLATOR-SEAT

$68.99

$

In Stock, Qty 6

0

25

Toro 3230-10

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

26

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

27

Toro 131-6324-03

PLATE-SUPPORT, ISO SEAT

$218.99

$

Usually ships in 3-6 days

0

28

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 116-3859-03

PLATE-FRAME, SEAT

$133.99

$

Usually ships in 3-6 days

0

30

Toro 116-1297

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

31

Toro 116-0035

SEAT-STANDARD

$1287.99

$

Usually ships in 3-6 days

0

32

Toro 116-0070

ROD-PROP

$21.99

$

Usually ships in 3-6 days

0

33

Toro 127-6766

LH PLATE ASM (W/STUDS)

$44.99

$

Usually ships in 3-6 days

0

34

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

35

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

36

Toro 47-7270

BEARING-NEEDLE

$30.99

$

In Stock, only 4 left!

0

37

Toro 132-5058

BUMPER-RUBBER

$12.99

$

Usually ships in 3-6 days

0

38

Toro 132-5089-01

FLOORPAN

$115.99

$

Usually ships in 3-6 days

0

39

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

40

Toro 132-5088-03

PLATE-LATCH,SEAT

$37.99

$

Usually ships in 3-6 days

0

41

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

42

Toro 107-3017

SPRING-COMPRESSION

$2.99

$

In Stock, only 1 left!

0

43

Toro 3230-4

BOLT-CARR

$3.99

$

In Stock, Qty 13

0

51

Toro 325-19

SCREW-HH

$8.49

$

In Stock, only 4 left!

0

57

Toro 105-3048

Washer-Flat

$1.49

$

In Stock, Qty 20+

0

58

Toro 116-0648

SCREW-HH, THREAD LOCKING

$1.49

$

In Stock, Qty 20+

0

59

Toro 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

60

Toro 86-1990

WASHER-THRUST

$3.99

$

In Stock, Qty 20+

0

61

Toro 131-8846

COVER-HOSE

$2.99

$

Usually ships in 3-6 days

0

62

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

65

Toro 132-5068

COVER-SHOCK

$10.99

$

Usually ships in 3-6 days

0

66

Toro 125-9383

DECAL-SERVICE AID

$26.99

$

Usually ships in 3-6 days

0

67

Toro 3256-6

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

71

Toro 127-6765

RH PLATE ASM (W/STUDS)

$44.99

$

Usually ships in 3-6 days

0

72

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0
