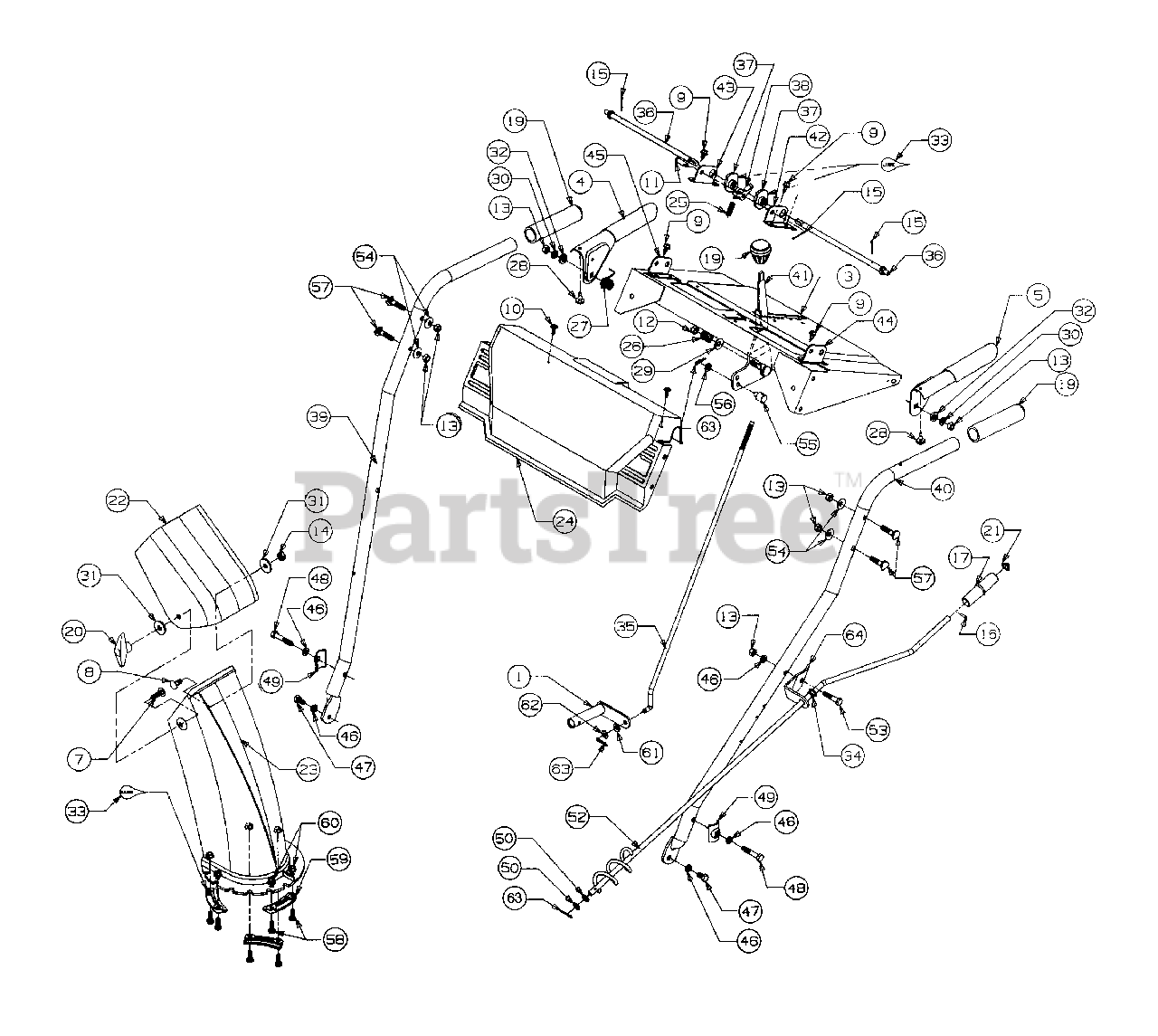

75903 (317E640F033) - MTD Snow Thrower (1997) (Ace Hardware) Handle Assembly Parts Diagram

Snow Thrower

Handle Assembly Parts Diagram

  • Title

1

MTD 684-0008

Arm-Shift
(Superseded to 684-0008A-0637)

Variations

MTD 684-0008-0637

Shift Arm Assembly - POWDER BLACK (0637)

$50.99

$

Usually ships in 3-6 days

0

MTD 684-0008-0638

Shift Arm Assembly - MTD/TROY-BILT RED (0638)

$50.99

$

Usually ships in 3-6 days

0

$50.99

$

Usually ships in 3-6 days

0

?2

MTD 684-0022

Crank-Chute
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

3

MTD 684-0033A

Panel-Handle

Variations

MTD 684-0033A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0033A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0033A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 684-0033A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0033A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 684-0033A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0033A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

MTD 684-0036

Handle-Engagement-R.H.
(Superseded to 684-0036A)

$44.99

$

Usually ships in 3-6 days

0

5

MTD 684-0037

Handle-Engagement-L.H.
(Superseded to 684-0037B)

$38.99

$

In Stock, only 2 left!

0

7

MTD 710-0276

Screw

$3.99

$

In Stock, Qty 20+

0

8

MTD 710-0451

Bolt-Carriage

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0896

Screw

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-1003

Screw
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

11

MTD 711-0653

Pin-Clevis

$3.99

$

Usually ships in 3-6 days

0

12

MTD 712-0116

Nut-Hex

$4.99

$

In Stock, Qty 6

0

13

MTD 712-0267

Nut-Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

MTD 712-3068

Nut-Lock
(Superseded to 912-3009)

$

$

Not available

15

MTD 714-0507

Pin-Cotter

$4.49

$

In Stock, Qty 12

0

16

MTD 715-0138

Pin-Roll
(Superseded to 915-0138)

$4.99

$

In Stock, only 1 left!

0

17

MTD 720-0201A

Knob

$10.99

$

In Stock, Qty 5

0

?18

MTD 720-0232

Knob-Shift
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

19

MTD 720-0274

Grip

$11.99

$

In Stock, Qty 11

0

20

MTD 720-0284

Knob

$6.99

$

In Stock, Qty 20+

0

21

MTD 726-0100

Cap-Push

$4.49

$

In Stock, Qty 19

0

22

MTD 731-0921

Chute-Upper
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 14

0

23

MTD 731-1300A

Chute-Lower
(Superseded to 731-1300E)

$56.99

$

In Stock, Qty 8

0

24

MTD 731-1391

Panel-Handle

$43.99

$

Usually ships in 3-6 days

0

25

MTD 732-0145

Spring

$4.49

$

Usually ships in 3-6 days

0

26

MTD 732-0193

Spring

$4.99

$

In Stock, Qty 6

0

27

MTD 732-0746

Spring

$4.49

$

In Stock, Qty 13

0

28

MTD 735-0199A

Bumper

$7.99

$

In Stock, only 4 left!

0

29

MTD 736-0105

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

MTD 736-0231

Washer

$4.99

$

In Stock, Qty 20+

0

32

MTD 736-0509

Washer

$6.99

$

In Stock, only 1 left!

0

33

MTD 737-0133

Lubricant
(Superseded to 737-0300A)

$34.99

$

In Stock, Qty 20+

0

34

MTD 741-0475

Bushing-Plastic
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

35

MTD 747-0798A

Rod-Shift

$38.99

$

Usually ships in 3-6 days

0

36

MTD 747-0877

Rod-Cam

$22.99

$

Usually ships in 3-6 days

0

37

MTD 748-0362

Cam-Handle Lock

$7.99

$

Usually ships in 3-6 days

0

38

MTD 748-0363

Pawl-Handle Lock
(Superseded to 948-0363)

$16.99

$

Usually ships in 3-6 days

0

?39

MTD 749-0910A

Handle-R.H.
(Superseded to 749-0910C-0637)

Variations

MTD 749-0910A-0637

HANDLE-RH - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 749-0911A

Handle-L.H.

Variations

MTD 749-0911A-0637

No Longer Available HANDLE-LH - POWDER BLACK (0637)

$

$

Not available

$

$

41

MTD 784-5619

Handle-Shift
(Superseded to 753-05395)

$

$

Not available

42

MTD 784-5679

Bracket-Handle Support-L.H.
(Superseded to 784-5679-0637)

Variations

MTD 784-5679-0637

BRACKET-HANDLE-LH - POWDER BLACK (0637)

$8.99

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

43

MTD 784-5680

Bracket-Handle Support-R.H.
(Superseded to 784-5680-0637)

Variations

MTD 784-5680-0637

BRACKET-HDL SUP-RH - POWDER BLACK (0637)

$12.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

44

MTD 784-5681

Bracket-Handle Support-L.H.

Variations

MTD 784-5681-0637

BRACKET-HANDLE SUP - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

45

MTD 784-5682

Bracket-Handle Support-R.H.
(Superseded to 784-5682-0637)

Variations

MTD 784-5682-0637

Handle Support Bracket - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

46

MTD 736-0119

Washer-Lock
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

47

MTD 710-0118

Screw
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

48

MTD 710-3180

Screw

$5.49

$

In Stock, Qty 20+

0

49

MTD 784-5599

Tab-Handle
(Superseded to 984-5599)

$4.49

$

In Stock, Qty 20+

0

50

MTD 736-0140

Washer-Flat

$7.49

$

In Stock, Qty 7

0

52

MTD 684-0022

Crank-Chute
(Superseded to 984-0022)

$99.99

$

In Stock, only 3 left!

0

53

MTD 710-0442

Screw
(Superseded to 710-0805A)

$4.49

$

In Stock, Qty 20+

0

54

MTD 736-0242

Washer-Bell

$4.49

$

In Stock, Qty 20+

0

55

MTD 711-0677

Ferrule
(Superseded to 911-0677)

$17.99

$

In Stock, only 4 left!

0

56

MTD 736-0264

Washer-Flat

$6.99

$

In Stock, only 1 left!

0

57

MTD 710-1250

Bolt-Carriage

$4.99

$

In Stock, Qty 5

0

58

MTD 710-3015

Screw

$3.99

$

In Stock, Qty 20+

0

59

MTD 731-0851A

Keeper-Chute Flange

$4.49

$

In Stock, Qty 20+

0

60

MTD 712-3027

Not-Lock
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

61

MTD 736-0271

Washer-Spring
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

62

MTD 736-0264

Washer-Flat

$6.99

$

In Stock, only 1 left!

0

63

MTD 714-0104

Pin-Cotter

$4.49

$

In Stock, Qty 20+

0

64

MTD 784-5678

Bracket

Variations

MTD 784-5678-0637

No Longer Available BRACKET-CH - POWDER BLACK (0637)

$

$

Not available

$

$
