75841 - Toro 42" eTimeCutter Zero-Turn Mower (SN: 416499999 - 417399999) Frame Assembly Parts Diagram

42" eTimeCutter Zero-Turn Mower

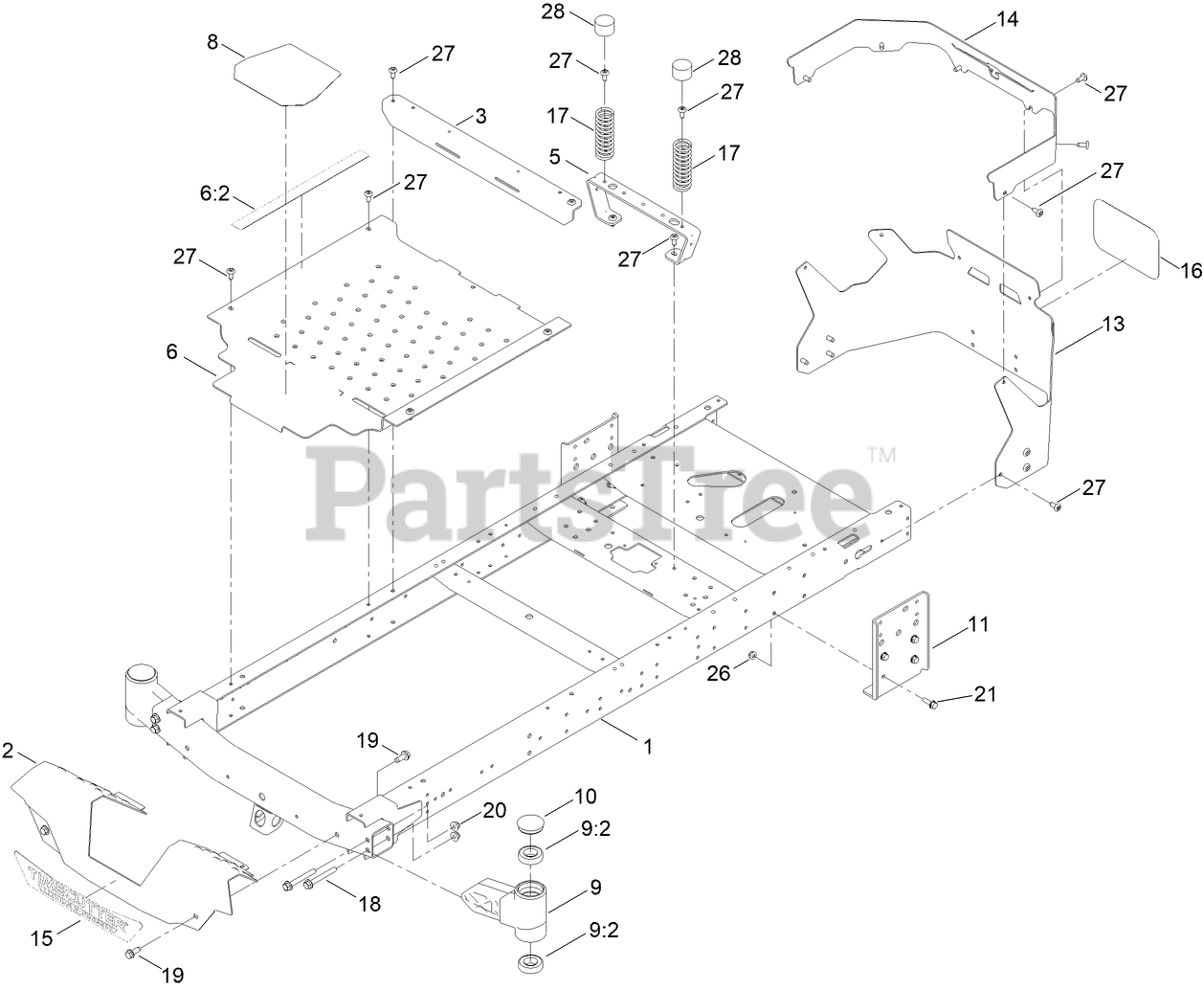

Frame Assembly Parts Diagram

  • Title

1

Toro 147-3005-01

FRAME ASM [RED]

$

$

Currently unavailable

2

Toro 138-9827-07

FOOTREST

$

$

Currently unavailable

3

Toro 138-9791-01

BRACE-CROSS

$29.99

$

Usually ships in 3-6 days

0

5

Toro 138-6036-03

SUPPORT-SEAT

$20.99

$

Usually ships in 3-6 days

0

6

Toro 161-4457

PAN-FLOOR ASM

$

$

Currently unavailable

6:2

Toro 147-7617

DECAL - WARNING

$

$

Currently unavailable

8

Toro 139-3220

TREAD-STEP

$8.49

$

Usually ships in 3-6 days

0

9

Toro 140-2098

AXLE STUB ASM

$59.99

$

Usually ships in 3-6 days

0

9:2

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

10

Toro 138-7200

CAP-GREASE

$5.49

$

In Stock, only 2 left!

0

11

Toro 145-0415-01

PLATE-MOUNT, DRIVE

$

$

Currently unavailable

13

Toro 147-5205-07

GUARD-REAR

$

$

Currently unavailable

14

Toro 147-7579-01

GUARD-REAR, UPPER

$

$

Currently unavailable

15

Toro 147-8705

DECAL-TIMECUTTER

$

$

Currently unavailable

16

Toro 145-1978

DECAL-LOGO, SILVER

$8.49

$

Usually ships in 3-6 days

0

17

Toro 138-2548

SPRING-COMPRESSION

$7.99

$

Usually ships in 3-6 days

0

18

Toro 139-2429

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

19

Toro 139-2428

SCREW-HWH

$1.49

$

Usually ships in 3-6 days

0

20

Toro 139-2430

NUT-HF, NI

$1.49

$

Usually ships in 3-6 days

0

21

Toro 139-2596

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

26

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 15

0

27

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 9

0

28

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 13

0
