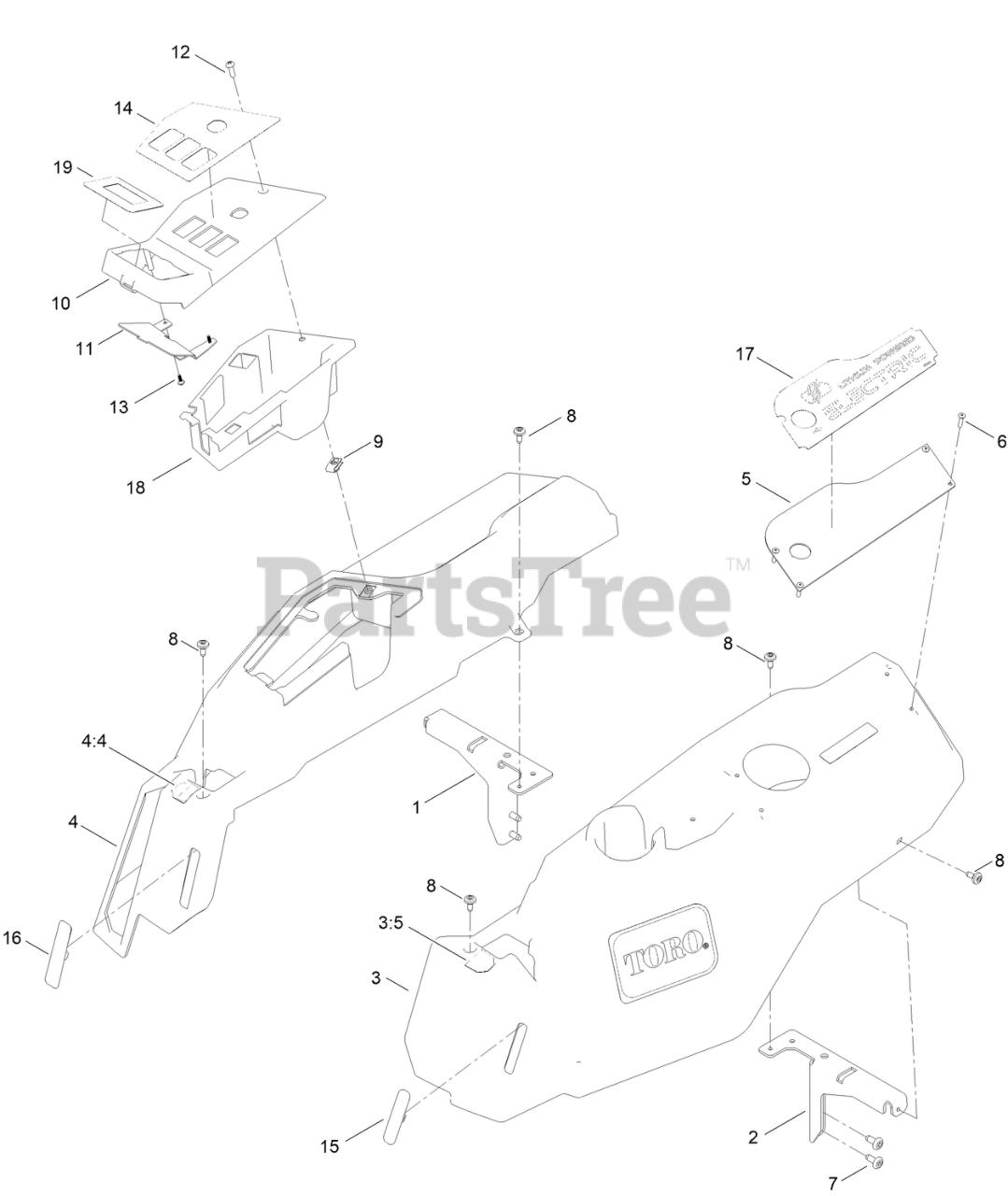

75841 - Toro 42" eTimeCutter Zero-Turn Mower (SN: 400000000 - 416399999) Pod Assembly Parts Diagram

42" eTimeCutter Zero-Turn Mower

Pod Assembly Parts Diagram

  • Title

1

Toro 138-6070-03

SUPPORT-POD, RH

$19.99

$

Usually ships in 3-6 days

0

2

Toro 138-6071-03

SUPPORT-POD, LH

$19.99

$

Usually ships in 3-6 days

0

3

Toro 145-0501

POD-LH

$68.99

$

Usually ships in 0 days

0

3:5

Toro 147-7620

DECAL - CONTROL LEVER, LH

$2.99

$

Usually ships in 0 days

0

4

Toro 147-8768

POD-RH

$68.99

$

Usually ships in 0 days

0

4:4

Toro 147-7619

DECAL - CONTROL LEVER, RH

$2.99

$

Usually ships in 0 days

0

5

Toro 145-0502-03

PLATE-COVER, POD

$15.99

$

Usually ships in 0 days

0

6

Toro 130-8451

RIVET-TRIFOLD

$1.49

$

Usually ships in 3-6 days

0

7

Toro 138-9753

SCREW

$1.49

$

In Stock, only 3 left!

0

8

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

9

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

10

Toro 147-7576

POD-CONTROL

$14.99

$

Usually ships in 0 days

0

11

Toro 147-7577-03

COVER-CONSOLE

$11.99

$

Usually ships in 0 days

0

12

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

13

Toro 145-5837

SCREW-PLASTIC,TBFH

$0.99

$

Usually ships in 0 days

0

14

Toro 147-7614

DECAL-PANEL, CONTROL

$14.99

$

Usually ships in 0 days

0

15

Toro 147-7629

PLUG-POD, LH

$1.49

$

Usually ships in 0 days

0

16

Toro 147-7691

PLUG-SC

$1.49

$

Usually ships in 0 days

0

17

Toro 147-7641

Decal-60V Lithium

$

$

Currently unavailable

18

Toro 147-7666

COVER-SWITCH

$13.99

$

Usually ships in 0 days

0

19

Toro 147-7715

DECAL-GT DISPLAY

$10.99

$

Usually ships in 0 days

0
