75761 TA - Toro 50" TimeCutter MyRide Zero-Turn Mower (SN: 412600000 - 999999999) Engine Assembly Parts Diagram

50" TimeCutter MyRide Zero-Turn Mower

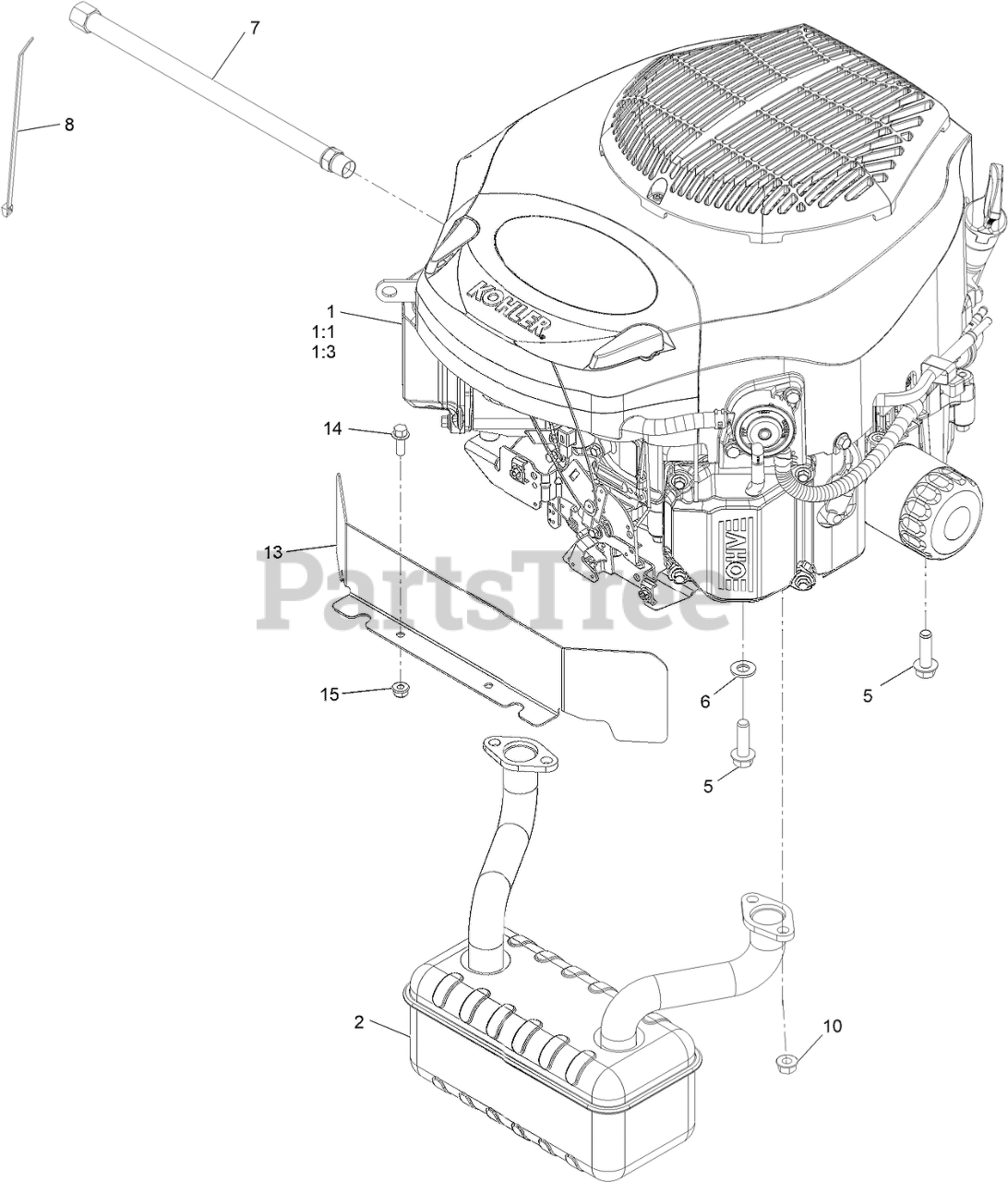

Engine Assembly Parts Diagram

  • Title

1

ENGINE-KOHLER, KT735

Note: This is a Kohler part. Please use the Kohler Engine catalog.

$

$

Not available

1

ENGINE-KOHLER, KT735

Note: Not serviced separately

$

$

Not available

1:1

Toro 110-6697

GASKET-EXHAUST

Note: Not illustrated

$

$

Not available

1:3

Toro 281-2

PLUG-PIPE, SQH

Note: Not illustrated

$2.99

$

Usually ships in 3-6 days

0

2

Toro 147-5194

MUFFLER

$113.99

$

Usually ships in 0 days

0

5

Toro 32144-109

SCREW-THD

$4.99

$

In Stock, Qty 7

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Toro 117-1261

HOSE-DRAIN, OIL

$29.99

$

In Stock, only 1 left!

0

8

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

10

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 11

0

13

Toro 147-5195-03

SHIELD-HEAT

$23.99

$

Usually ships in 3-6 days

0

14

Toro 120-9678

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

15

Toro 119-4040

NUT-FLANGE, NI

$0.99

$

In Stock, Qty 11

0
