75760 (6000) - Toro 60" TimeCutter Zero-Turn Mower (SN: 411585274 - 412563619) Traction Drive Assembly Parts Diagram

60" TimeCutter Zero-Turn Mower

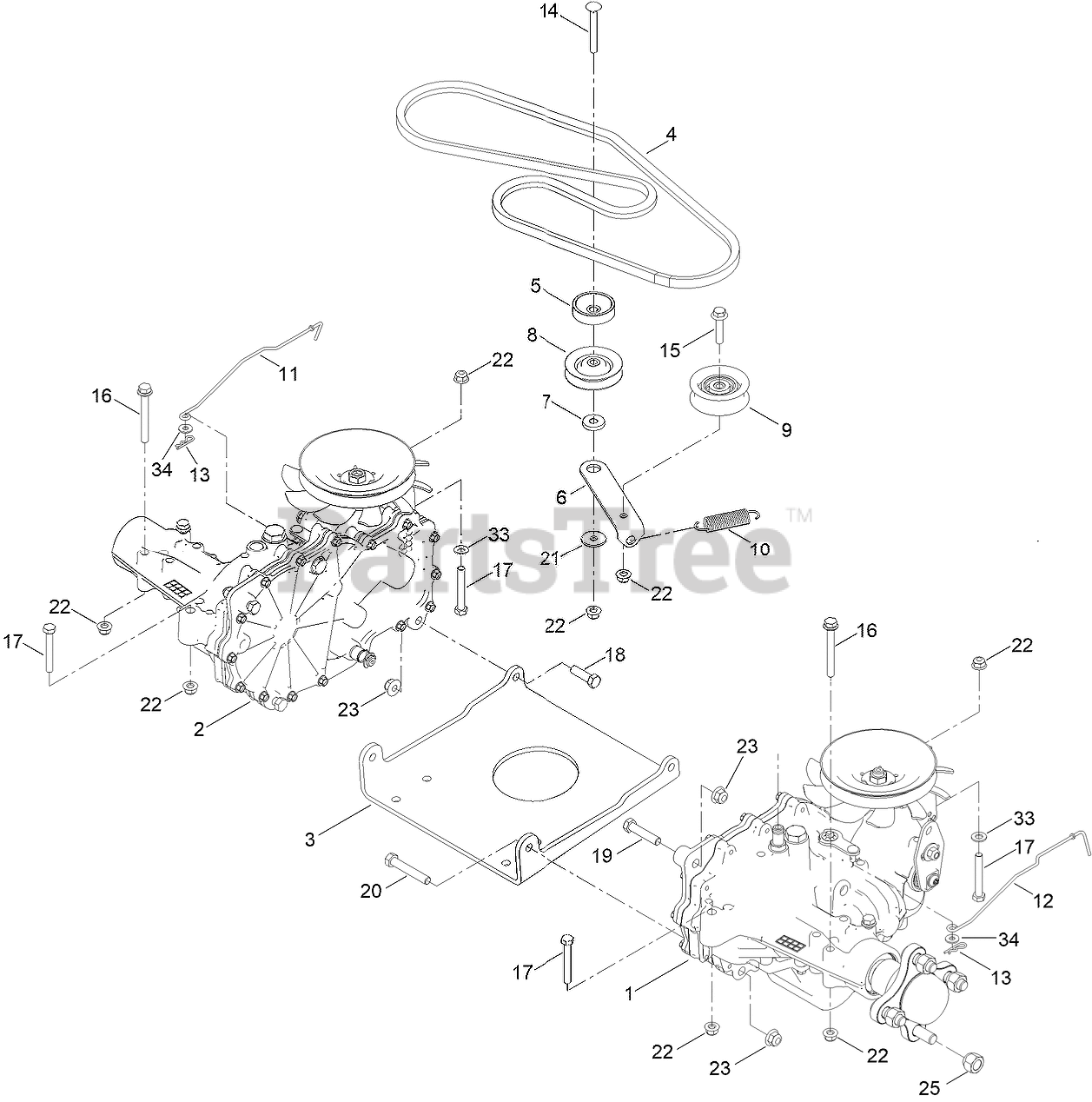

Traction Drive Assembly Parts Diagram

  • Title

1

Toro 140-8300

LH HYDRO TRANSMISSION ASM

$1542.99

$

Usually ships in 3-6 days

0

2

Toro 140-8301

RH HYDRO TRANSMISSION ASM

$1542.99

$

Usually ships in 3-6 days

0

3

Toro 137-7014-01

PLATE- HYDRO

$79.99

$

Usually ships in 3-6 days

0

4

Toro 140-2700

V-BELT

$34.99

$

In Stock, only 4 left!

0

5

Toro 138-9809

SPACER

$6.49

$

In Stock, only 1 left!

0

6

Toro 138-7276

ARM-IDLER

$6.49

$

In Stock, only 1 left!

0

7

Toro 138-7277

SPACER-IDLER ARM

$1.99

$

In Stock, Qty 8

0

8

Toro 68-0030

See Supercession: 68-0030-03
(Superseded to 68-0030-03)

$20.99

$

In Stock, only 1 left!

0

9

Toro 138-7597

PULLEY-IDLER, FLAT

$15.99

$

In Stock, only 3 left!

0

10

Toro 137-7040

SPRING-PEDAL, RETURN

$5.49

$

In Stock, Qty 9

0

11

Toro 130-7047

ROD-BYPASS, RH

$8.99

$

Usually ships in 3-6 days

0

12

Toro 130-7048

ROD-BYPASS, LH

$8.99

$

Usually ships in 3-6 days

0

13

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

14

Toro 3230-8

SCREW-CARR

$4.99

$

In Stock, Qty 13

0

15

Toro 115-1794

SCREW-HHF

$1.99

$

In Stock, Qty 11

0

16

Toro 138-7590

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

17

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

18

Toro 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

19

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

21

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

22

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

23

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

33

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

34

Toro 119-8952

WASHER

$0.99

$

In Stock, Qty 20+

0
