75755 (MX 5075) - Toro 50" TimeCutter Zero-Turn Mower (SN: 406753520 - 406753789) 50 Inch Deck Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

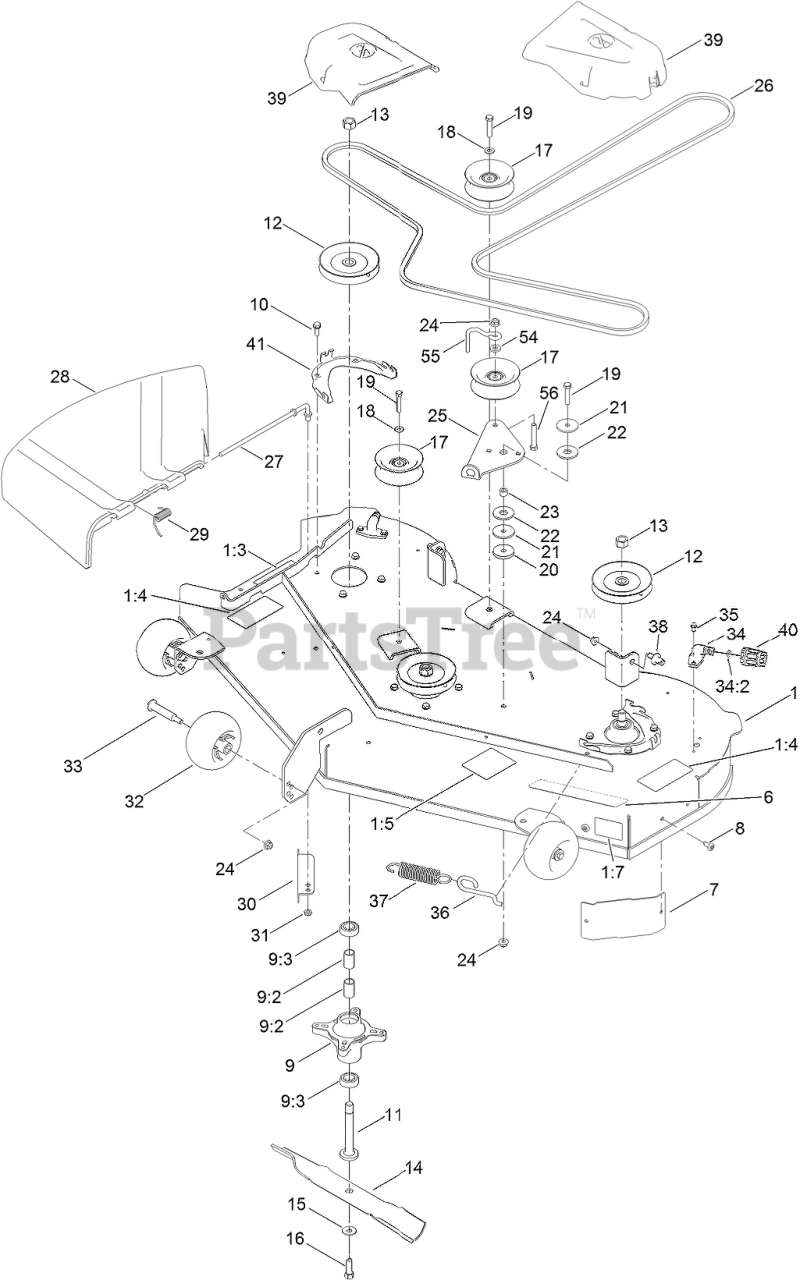

50 Inch Deck Assembly Parts Diagram

  • Title

1

Toro 138-9764

50 INCH DECK AND DECAL ASM

$1033.99

$

Usually ships in 3-6 days

0

1:3

Toro 93-7009

DECAL-DANGER

$7.49

$

In Stock, only 1 left!

0

1:4

Toro 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, Qty 12

0

1:5

Toro 99-3943

DECAL-ROUTING, BELT

$7.99

$

In Stock, only 1 left!

0

1:7

Toro 112-9840

DECAL-SCALP, ANTI

$7.99

$

Usually ships in 3-6 days

0

6

Toro 139-3208

DECAL - DECK

$5.99

$

In Stock, only 1 left!

0

7

Toro 139-2448-03

BAFFLE-CORNER

$23.99

$

Usually ships in 3-6 days

0

8

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

9

Toro 139-3214

SPINDLE ASM

$78.99

$

Usually ships in 3-6 days

0

9:2

Toro 120-7935

SPACER

$2.99

$

In Stock, Qty 9

0

9:3

Toro 138-9770

BEARING-BALL

$7.99

$

In Stock, only 4 left!

0

10

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

11

Toro 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 16

0

12

Toro 139-7454

PULLEY

$19.99

$

In Stock, only 2 left!

0

13

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

14

Toro 115-5059-03

BLADE-HI LIFT
(Superseded to 142-6453-S)

$25.99

$

In Stock, Qty 20+

0

15

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

16

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

17

Toro 132-9420

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

0

18

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

19

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

21

Toro 63-7400

WASHER-REBOUND

$2.99

$

In Stock, Qty 5

0

22

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

0

23

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 5

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 138-7262

ARM-IDLER

$18.99

$

In Stock, only 1 left!

0

26

Toro 119-8820

V-BELT
(Superseded to 119-8820-SL)

$62.99

$

Usually ships in 3-6 days

0

27

Toro 137-2019

ROD-PIVOT

$12.99

$

In Stock, only 1 left!

0

28

Toro 138-7502

DEFLECTOR-DISCHARGE

$64.99

$

In Stock, Qty 13

0

29

Toro 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 9

0

30

Toro 138-9800-03

BAFFLE-CUTOFF

$10.99

$

In Stock, only 3 left!

0

31

Toro 3296-59

See Supercession: 121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

32

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

33

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

34

Toro 133-9289

FITTING-WASHOUT

$6.49

$

In Stock, Qty 5

0

34:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 20+

0

35

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

36

Toro 138-7266

HOOK-RETURN SPRING

$5.49

$

In Stock, only 1 left!

0

37

Toro 138-7264

SPRING-EXTENSION

$7.99

$

In Stock, only 1 left!

0

38

Toro 139-5871

PIN-DECK

$2.99

$

In Stock, only 3 left!

0

39

Toro 139-3293

COVER-BELT
(Superseded to 144-5294)

$25.99

$

In Stock, only 3 left!

0

40

Toro 95-3270

CONNECTOR-HOSE

$23.99

$

In Stock, only 1 left!

0

41

Toro 139-3272-03

BRACKET-COVER, BELT

$12.99

$

In Stock, only 3 left!

0

54

Toro 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 9

0

55

Toro 138-7270

BELT GUIDE - IDLER

$2.99

$

In Stock, Qty 5

0

56

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0
