75750 W (5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400000000 - 407149999) Body Styling and Fuel Pod Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

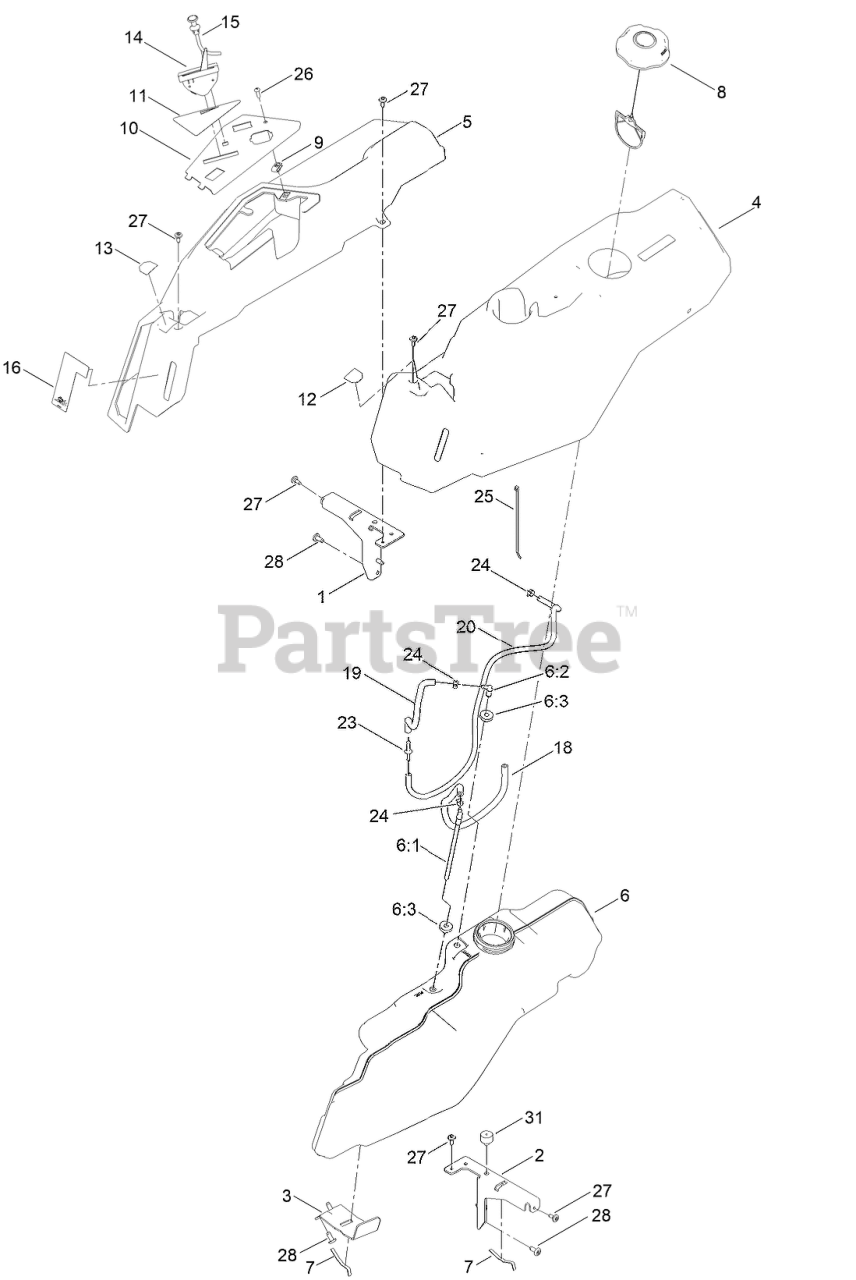

Body Styling and Fuel Pod Assembly Parts Diagram

  • Title

1

Toro 138-6070-03

SUPPORT-POD, RH

$18.99

$

Usually ships in 3-6 days

0

2

Toro 138-6071-03

SUPPORT-POD, LH

$18.99

$

Usually ships in 3-6 days

0

3

Toro 139-3271-03

SUPPORT-TANK, FUEL

$9.49

$

Usually ships in 3-6 days

0

4

Toro 138-6074

POD-LH

$63.99

$

Usually ships in 3-6 days

0

5

Toro 138-6075

POD-RH

$63.99

$

Usually ships in 3-6 days

0

6

Toro 138-6072

FUEL TANK ASM

$172.99

$

In Stock, only 1 left!

0

6:1

Toro 139-1091

CONNECTOR-ELBOW, 90 DEG

$9.49

$

In Stock, only 1 left!

0

6:2

Toro 117-7400

FITTING-PLASTIC

$6.49

$

In Stock, only 4 left!

0

6:3

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 10

0

7

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

8

Toro 137-4119

CAP-FUEL, RATCHETING

$27.99

$

In Stock, only 1 left!

0

9

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

10

Toro 139-2380-03

PANEL - CONTROL

$21.99

$

Usually ships in 3-6 days

0

11

Toro 139-2391

DECAL-PANEL, CONTROL

$5.49

$

In Stock, only 1 left!

0

12

Toro 139-2395

DECAL-CONTROL LEVER, LH

$1.99

$

Usually ships in 3-6 days

0

13

Toro 139-2394

DECAL-CONTROL LEVER, RH

$1.99

$

Usually ships in 3-6 days

0

14

Toro 139-2403

CABLE-THROTTLE

$30.99

$

In Stock, only 1 left!

0

15

Toro 139-2402

CABLE-CHOKE

$22.99

$

Usually ships in 3-6 days

0

16

Toro 139-2388

DECAL-SMART SPEED

$5.49

$

Usually ships in 3-6 days

0

18

Toro 109-0299

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

19

Toro 110-3447

HOSE-FUEL

$9.49

$

Usually ships in 3-6 days

0

20

Toro 110-3958

HOSE-FUEL

Note: Not illustrated

$27.99

$

Usually ships in 3-6 days

0

23

Toro 117-5399

ADAPTOR-ORIFICE

$3.49

$

Usually ships in 3-6 days

0

24

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

25

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

26

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

27

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

28

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 6

0

31

Toro 120-7893

BUMPER-GROMMET

$5.49

$

Usually ships in 3-6 days

0
