75750 (5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 407800000 - 409479950) Engine and Muffler Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

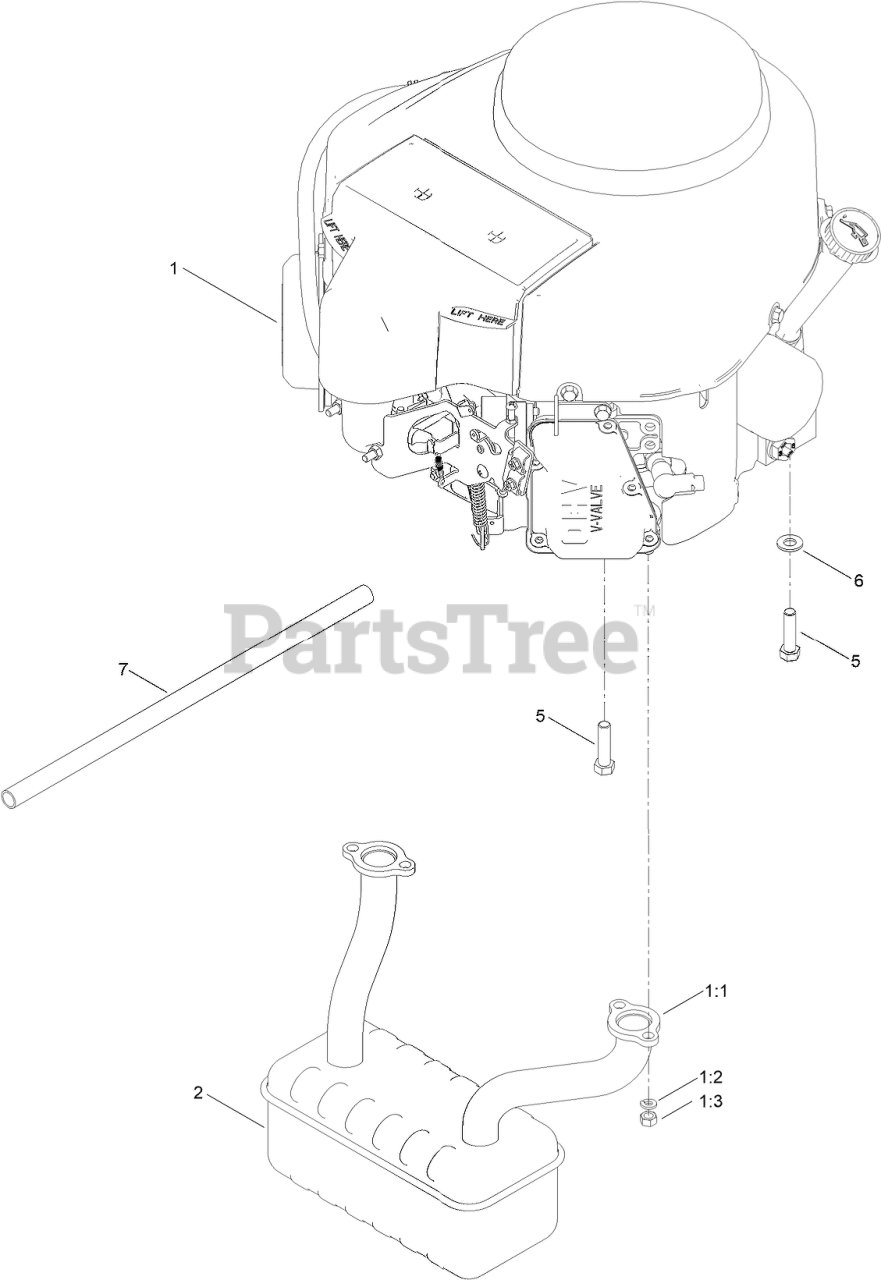

Engine and Muffler Assembly Parts Diagram

  • Title
1

ENGINE-KAWASAKI, FR691V-S07-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FR691V-S07-R

Note: Obtain parts from www.kawpower.com

$

$

Not available

1:1

Toro 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

1:2

$1.99

$

In Stock, Qty 20+

0

1:3

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

2

Toro 139-5867

MUFFLER

$142.99

$

Usually ships in 3-6 days

0

5

Toro 323-50

BOLT-HH

$1.49

$

In Stock, Qty 17

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

7

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

Usually ships in 3-6 days

0
