Toro 75748 - Toro 42" TimeCutter Zero-Turn Mower (SN: 414400000 - 414999999) 42in Deck and Decal Assembly Parts Lookup with Diagrams

1

Toro 138-9761

42 INCH DECK AND DECAL ASM

$722.99

$

Usually ships in 3-6 days

1:2

Toro 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, Qty 5

1:3

Toro 130-0731

DECAL-DANGER

$3.99

$

Usually ships in 3-6 days

1:5

Toro 105-7015

DECAL-ROUTING, BELT

$5.49

$

In Stock, Qty 15

5

Toro 117-1222

DECAL

$10.99

$

In Stock, only 4 left!

6

Toro 139-3214

SPINDLE ASM

$83.99

$

In Stock, Qty 10

6:2

Toro 120-7935

SPACER

$2.49

$

In Stock, Qty 20+

6:3

Toro 138-9770

BEARING-BALL

$8.49

$

In Stock, Qty 20+

7

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

8

Toro 117-7268

SHAFT-SPINDLE

$31.99

$

In Stock, Qty 20+

9

Toro 139-2433

Pulley

$39.99

$

In Stock, Qty 20+

10

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

11

Toro 137-1999-03

BLADE-21.6 IN

$27.99

$

In Stock, Qty 20+

13

Toro 145-0411

BOLT-BLADE, SEMS

$3.99

$

Usually ships in 3-6 days

14

Toro 132-9420

PULLEY-IDLER, FLAT

$36.99

$

In Stock, Qty 20+

15

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

16

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

17

Toro 63-7400

WASHER-REBOUND

$3.49

$

In Stock, Qty 20+

18

Toro 120-2229

WASHER

$2.99

$

In Stock, Qty 20+

19

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

20

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

21

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

22

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

23

Toro 138-7262

ARM-IDLER

$19.99

$

In Stock, only 2 left!

24

Toro 138-7270

BELT GUIDE - IDLER

$2.99

$

In Stock, Qty 20+

25

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

26

Toro 147-2924

V-BELT

(Superseded to 119-8819-SL) 

$45.99

$

Usually ships in 3-6 days

27

Toro 137-2019

ROD-PIVOT

$13.99

$

In Stock, Qty 20+

28

Toro 137-7046

DEFLECTOR

$85.99

$

In Stock, Qty 20+

29

Toro 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

30

Toro 3296-59

See Supercession: 121-4600

(Superseded to 121-4600) 

$1.49

$

In Stock, Qty 20+

31

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

32

Toro 112-3977

BOLT-SHOULDER

$12.99

$

In Stock, Qty 20+

33

Toro 133-9289

FITTING-WASHOUT

$6.99

$

In Stock, Qty 20+

33:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 16

34

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

35

Toro 138-7267

HOOK-RETURN SPRING

$2.99

$

In Stock, Qty 20+

36

Toro 138-7265

SPRING-EXTENSION

$8.49

$

In Stock, Qty 10

37

Toro 108-7889

COVER-BELT

$36.99

$

In Stock, Qty 7

38

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 20+

39

Toro 137-2036-03

BAFFLE-BLOWOUT, REAR

$19.99

$

Usually ships in 3-6 days

40

Toro 137-2037-03

BAFFLE-BLOWOUT, SIDE

$12.99

$

Usually ships in 3-6 days

41

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

42

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

43

Toro 95-3270

CONNECTOR-HOSE

$25.99

$

In Stock, Qty 20+

44

Toro 139-5871

PIN-DECK

$2.99

$

In Stock, Qty 20+

57

Toro 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 6

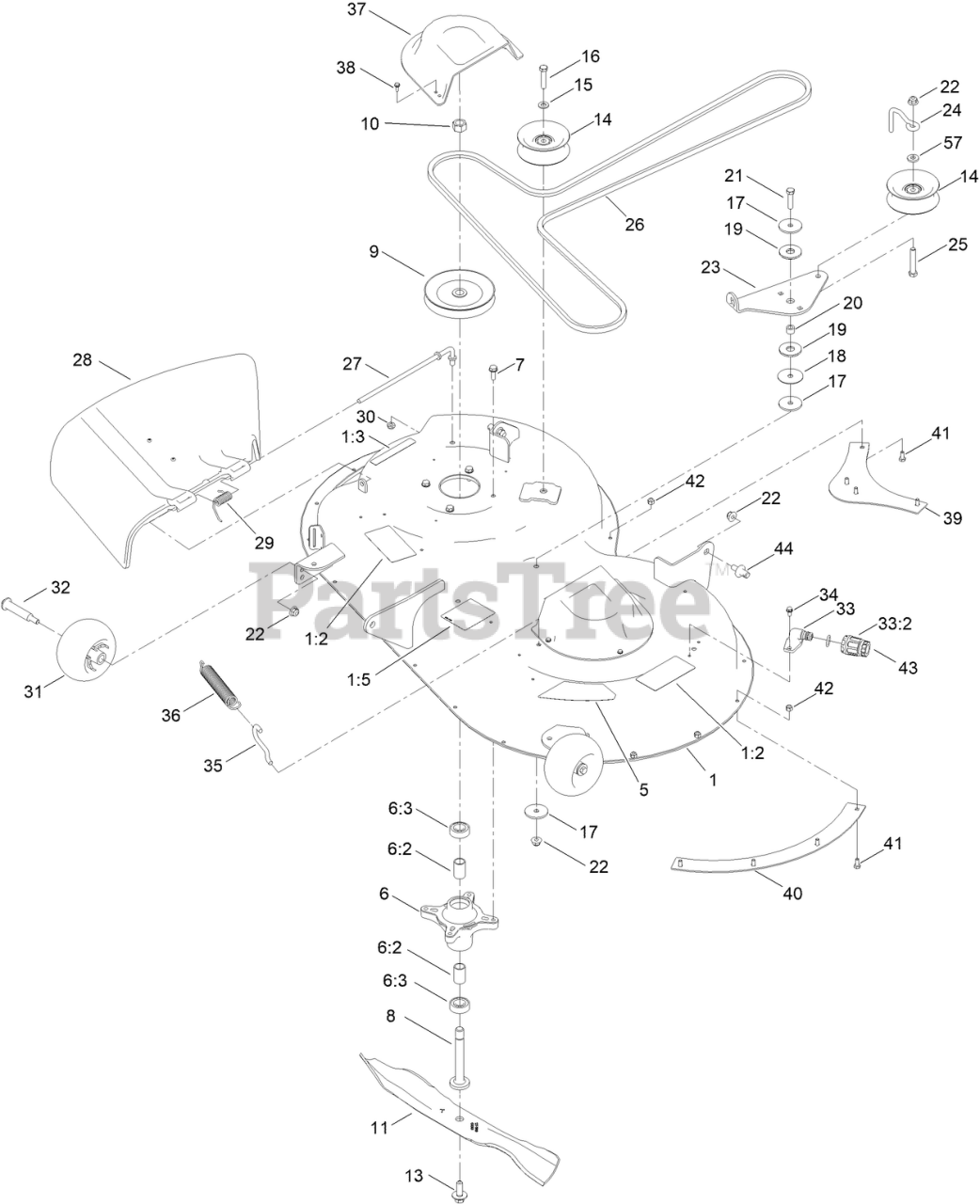

75748 - Toro 42" TimeCutter Zero-Turn Mower (SN: 414400000 - 414999999) 42in Deck and Decal Assembly Parts Diagram

42in Deck and Decal Assembly Parts Diagram
