75748 - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 412489369) Engine and Muffler Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

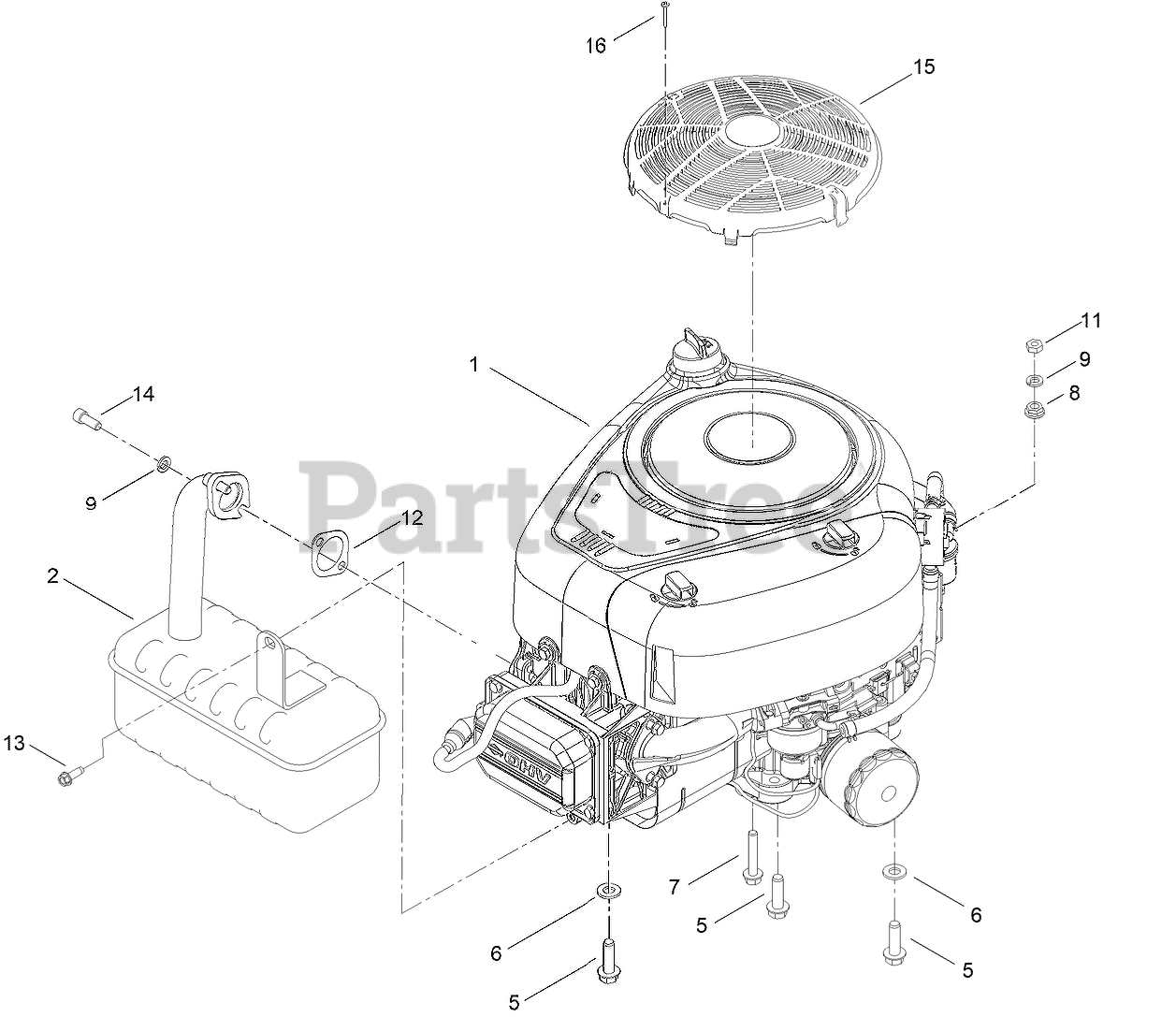

Engine and Muffler Assembly Parts Diagram

  • Title

1

ENGINE-BRIGGS STRATTON PROFESSIONAL

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS STRATTON PROFESSIONAL

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2

Toro 145-4614

MUFFLER

$113.99

$

Usually ships in 3-6 days

0

5

Toro 32144-109

SCREW-THD

$4.99

$

In Stock, Qty 7

0

6

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

7

Toro 94-5780

SCREW-HWH

$8.49

$

In Stock, only 2 left!

0

8

Toro 137-3039

NUT-HF

$1.49

$

Usually ships in 3-6 days

0

9

Toro 136-8682

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

11

Toro 120-9638

NUT-JAM

$

$

Currently unavailable

12

Toro 145-6270

GASKET-EXHAUST, BRIGGS

$

$

Currently unavailable

13

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

14

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 13

0

15

Toro 145-4669

COVER-FAN

$30.99

$

Usually ships in 3-6 days

0

16

Toro 145-4670

SCREW-FAN

$

$

Currently unavailable
