75743 (4275 C) - Toro 42" TimeCutter Zero-Turn Mower (SN: 409330000 - 410199999) Body Styling and Fuel Pod Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

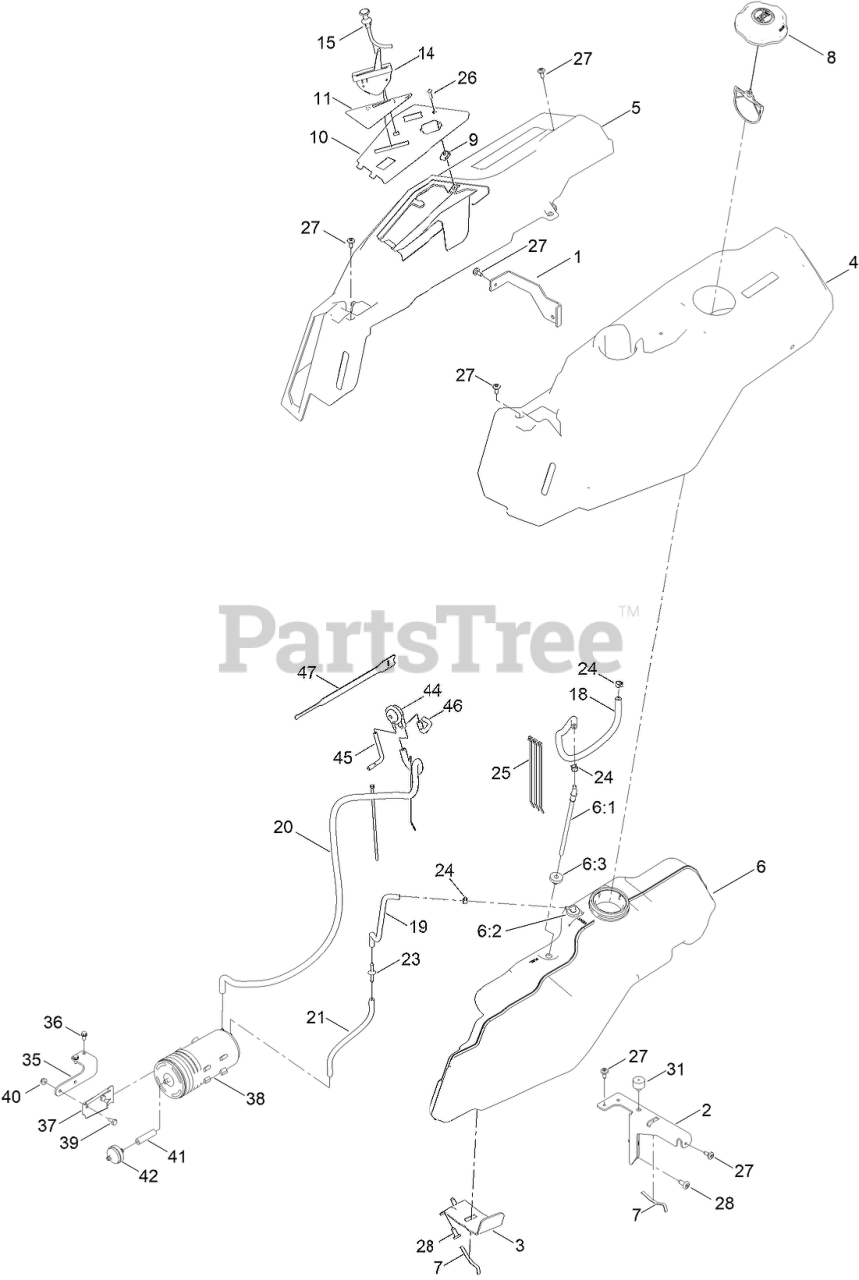

Body Styling and Fuel Pod Assembly Parts Diagram

  • Title

1

Toro 138-9810-03

BRACKET-POD

$10.99

$

Usually ships in 3-6 days

0

2

Toro 138-6071-03

SUPPORT-POD, LH

$18.99

$

Usually ships in 3-6 days

0

3

Toro 139-3271-03

SUPPORT-TANK, FUEL

$9.49

$

Usually ships in 3-6 days

0

4

Toro 138-6074

POD-LH

$62.99

$

Usually ships in 3-6 days

0

5

Toro 139-2404

POD-RH, MYRIDE

$62.99

$

Usually ships in 3-6 days

0

6

Toro 144-5304

TANK-FUEL ASM

$167.99

$

Usually ships in 3-6 days

0

6:1

Toro 139-1091

CONNECTOR-ELBOW, 90 DEG

$9.49

$

In Stock, only 1 left!

0

6:2

Toro 144-5302

FITTING-ELBOW 90

$6.49

$

Usually ships in 3-6 days

0

6:3

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

7

Toro 609830

SPRING

$5.49

$

In Stock, Qty 6

0

8

Toro 137-4119

CAP-FUEL, RATCHETING

$26.99

$

In Stock, only 1 left!

0

9

Toro 107069

CLIP

$2.99

$

In Stock, Qty 20+

0

10

Toro 139-2380-03

PANEL - CONTROL

$21.99

$

Usually ships in 3-6 days

0

11

Toro 139-2391

DECAL-PANEL, CONTROL

$5.49

$

In Stock, only 1 left!

0

14

Toro 139-2403

CABLE-THROTTLE

$34.99

$

In Stock, only 1 left!

0

15

Toro 139-2402

CABLE-CHOKE

$25.99

$

Usually ships in 3-6 days

0

18

Toro 109-0299

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

19

Toro 136-6345

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

20

Toro 110-7502

HOSE-FUEL

$48.99

$

Usually ships in 3-6 days

0

21

Toro 138-0868

HOSE-FUEL

$11.99

$

Usually ships in 3-6 days

0

23

Toro 144-1983

ADAPTER ORIFICE

$1.49

$

Usually ships in 3-6 days

0

24

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

25

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

26

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

27

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 13

0

28

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 8

0

31

Toro 120-7893

BUMPER-GROMMET

$5.49

$

Usually ships in 3-6 days

0

35

Toro 139-5853-03

BRACKET-CANISTER, CARBON

$14.99

$

Usually ships in 3-6 days

0

36

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

37

Toro 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

38

Toro 117-1221

CANISTER-CARBON, 800CC

$73.99

$

In Stock, only 1 left!

0

39

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

40

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

41

Toro 99-9415

HOSE-FUEL

$3.49

$

In Stock, only 4 left!

0

42

Toro 115-7854

FILTER-FUEL, INLINE

$7.49

$

In Stock, only 4 left!

0

44

Toro 116-2232

VALVE-CONTROL, VACUUM

$25.99

$

In Stock, only 3 left!

0

45

Toro 119-8501

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

46

Toro 119-8502

HOSE-VENT, FORMED

$6.49

$

Usually ships in 3-6 days

0

47

Toro 116-2469

STRAP-VELCRO, CABLE TIE

$18.99

$

Usually ships in 3-6 days

0
