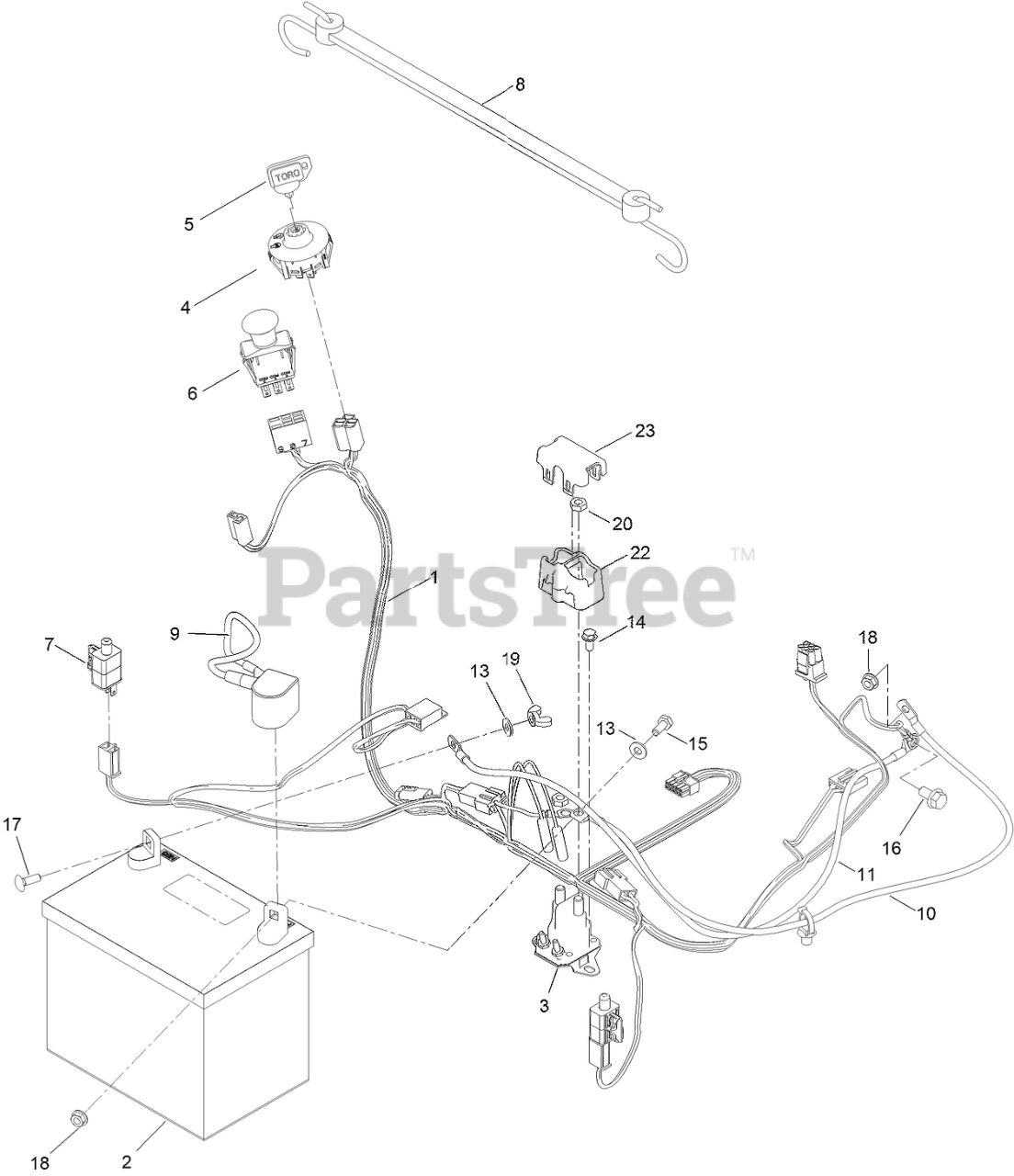

75741 (4200 C) - Toro 42" TimeCutter Zero-Turn Mower (SN: 411780000 - 414299999) Electrical Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

Electrical Assembly Parts Diagram

  • Title

1

Toro 138-2521

HARNESS-WIRE

$120.99

$

Usually ships in 3-6 days

0

1:1

Toro 109355

FUSE-BLADE, 15 AMP

Note: Not illustrated

$3.49

$

In Stock, only 1 left!

0

1:2

Toro 109102

FUSE-BLADE, 25 AMP

Note: Not illustrated

$5.99

$

In Stock, Qty 8

0

2

Toro 105-1692

BATTERY

$

$

Not available

3

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

4

Toro 137-4100

SWITCH-IGNITION

$35.99

$

In Stock, Qty 20+

0

5

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

6

Toro 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

7

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 11

0

8

Toro 139-2381

STRAP-RUBBER

$6.99

$

In Stock, only 1 left!

0

9

Toro 140-2713

CABLE-BATTERY, POS

$12.99

$

Usually ships in 3-6 days

0

10

Toro 139-2431

CABLE-BATTERY, RED (8 GAUGE)

$12.99

$

In Stock, only 1 left!

0

11

Toro 110-6793

CABLE-BATTERY, BLACK

$29.99

$

Usually ships in 3-6 days

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

14

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

15

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

16

Toro 33104-016

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

17

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

19

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

20

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

22

Toro 140-2080

COVER-SOLENOID

$2.99

$

In Stock, only 1 left!

0

23

Toro 140-2081

CAP-SOLENOID

$2.99

$

In Stock, only 2 left!

0
