75642 (eMR 4275) - Toro 42" eTimeCutter Zero-Turn Mower (SN: 416300000 - 417299999) Brake Assembly Parts Diagram

42" eTimeCutter Zero-Turn Mower

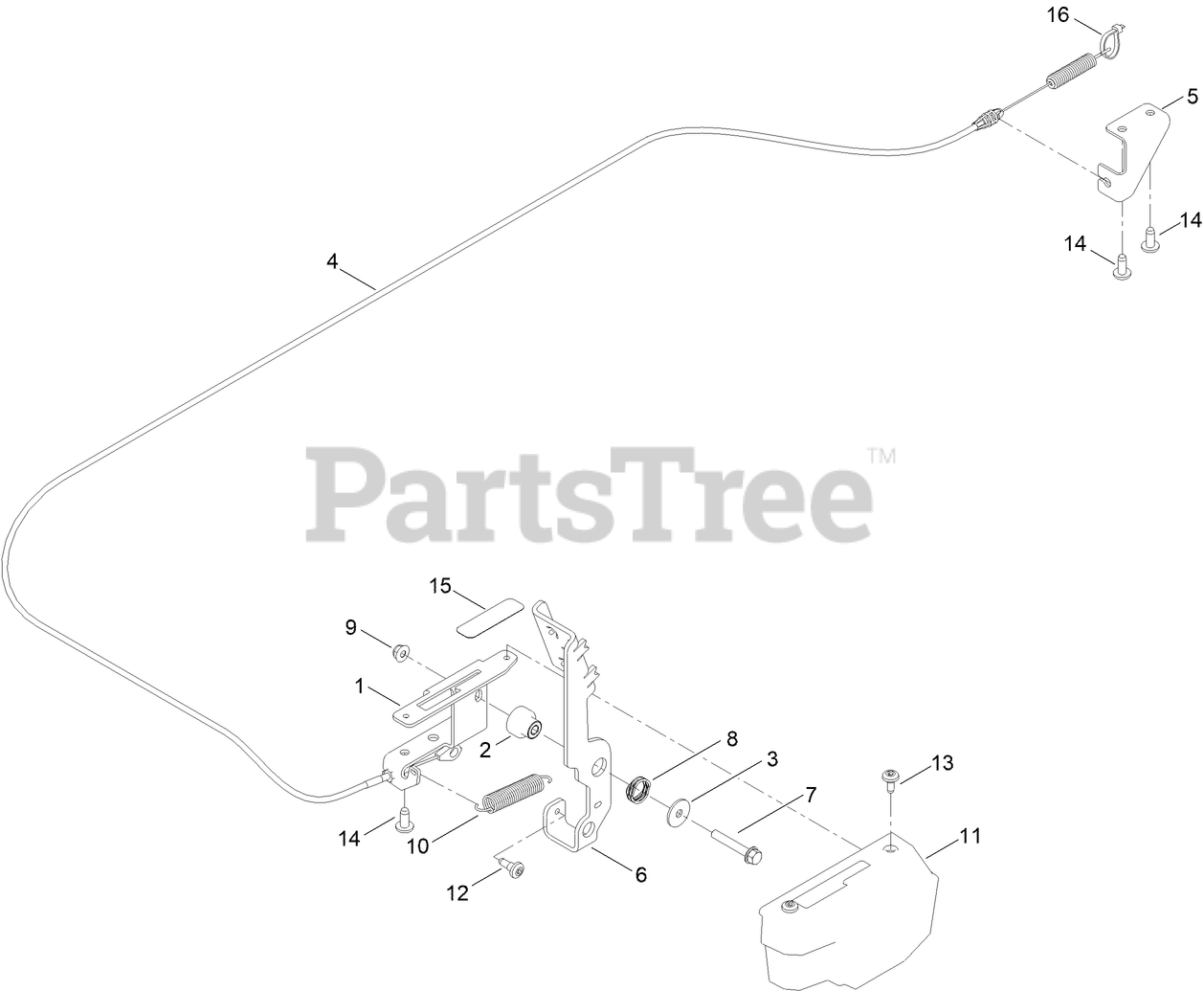

Brake Assembly Parts Diagram

  • Title

1

Toro 147-5182-03

BRACKET-PEDAL, BRAKE

$

$

Currently unavailable

2

Toro 147-7741

BUSHING-FLANGE

$

$

Currently unavailable

3

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

4

Toro 145-0490

CABLE-BRAKE

$

$

Currently unavailable

5

Toro 147-5201-03

BRACKET-CABLE, BRAKE

$

$

Currently unavailable

6

Toro 147-5181-03

PEDAL-BRAKE

$

$

Currently unavailable

7

Toro 142-6275

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

8

Toro 120-5116

WASHER-WAVE

$10.99

$

In Stock, only 2 left!

0

9

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 16

0

10

Toro 137-7040

SPRING-PEDAL, RETURN

$5.49

$

In Stock, Qty 20+

0

11

Toro 147-3048

COVER-BRAKE, PARKING

$

$

Currently unavailable

12

Toro 135-2015

SCREW-SHOULDER

$3.49

$

Usually ships in 3-6 days

0

13

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 20+

0

14

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 9

0

15

Toro 139-1271

DECAL-BRAKE, PARKING

$13.99

$

Usually ships in 3-6 days

0

16

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0
