75642 (eMR 4275) - Toro 42" eTimeCutter Zero-Turn Mower (SN: 400000000 - 416299999) 42in Deck and Decal Assembly Parts Diagram

42" eTimeCutter Zero-Turn Mower

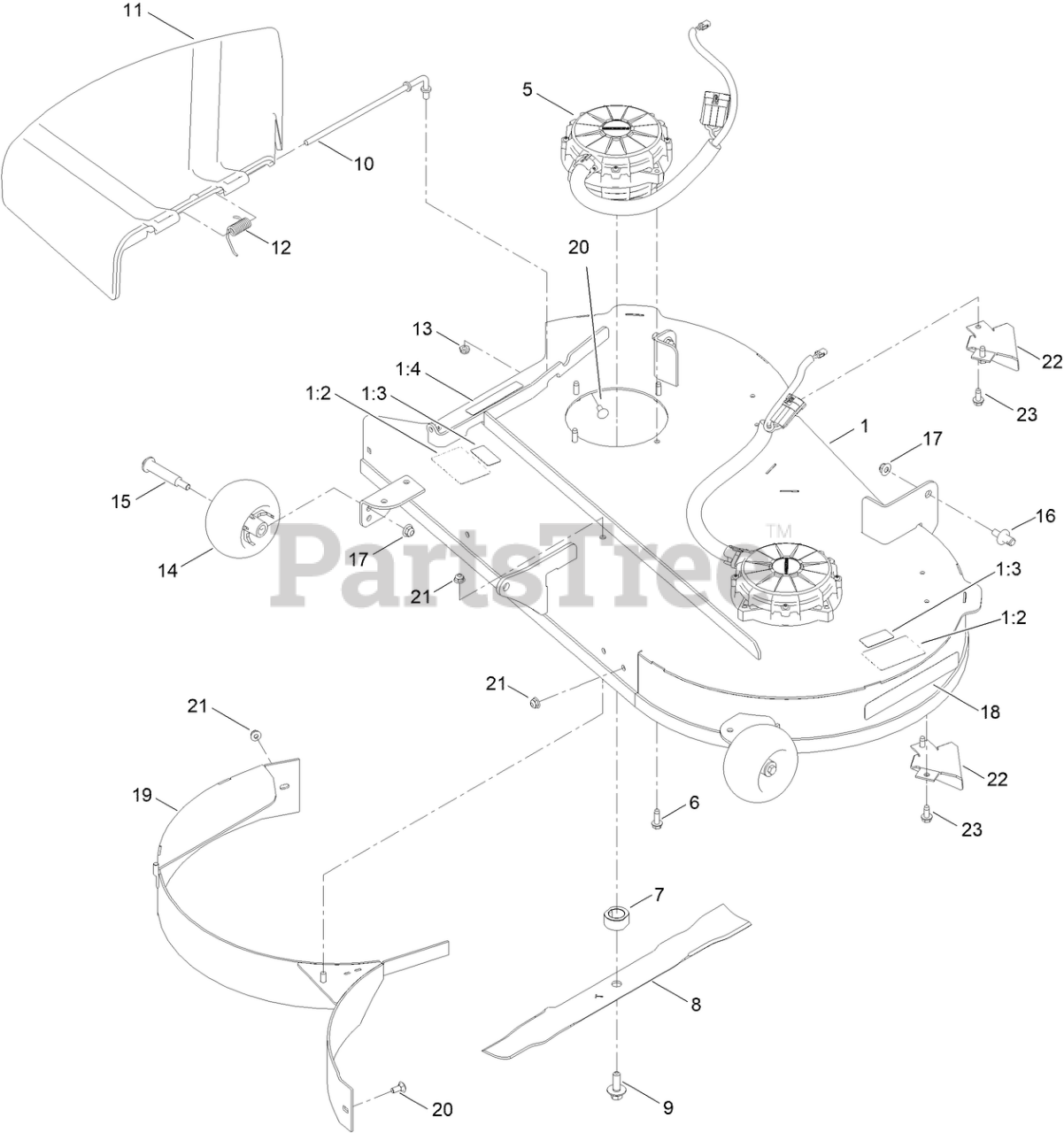

42in Deck and Decal Assembly Parts Diagram

  • Title

1

Toro 147-7654

42 IN DECK AND DECAL ASM

$

$

Currently unavailable

1:2

Toro 147-7615

DECAL-DANGER, DECK

$

$

Currently unavailable

1:3

Toro 137-8127

DECAL-NO SPRAY

$

$

Currently unavailable

1:4

Toro 130-0731

DECAL-DANGER

$3.99

$

Usually ships in 3-6 days

0

5

Toro 140-8379

MOTOR-DECK

$

$

Currently unavailable

6

Toro 136-7174

SCREW-THD ROLL, HWH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 140-8361

DRIVER-BLADE

$

$

Currently unavailable

9

Toro 145-0411

BOLT-BLADE, SEMS

$3.49

$

In Stock, Qty 20+

0

10

Toro 137-2019

ROD-PIVOT

$12.99

$

In Stock, Qty 20+

0

11

Toro 138-7502

DEFLECTOR-DISCHARGE

$64.99

$

In Stock, Qty 20+

0

12

Toro 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

0

13

Toro 121-4600

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

14

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 20+

0

15

Toro 139-2551

BOLT-SHOULDER

$6.49

$

In Stock, only 1 left!

0

16

Toro 139-5871

PIN-DECK

$2.99

$

In Stock, Qty 20+

0

17

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 19

0

18

Toro 140-4184

DECAL

$3.99

$

Usually ships in 3-6 days

0

19

Toro 147-7678-03

BAFFLE-RECYCLING [WELDED][BLACK]

$

$

Currently unavailable

20

Toro 139-2630

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

0

21

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 16

0

22

Toro 119-3389-03

KICKER-FLANGED

$28.99

$

Usually ships in 3-6 days

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
