7555 M (1694836) - Simplicity 22" Snow Thrower, 7.5hp Auger Housing Group (4248ch3p) Parts Diagram

22" Snow Thrower, 7.5hp

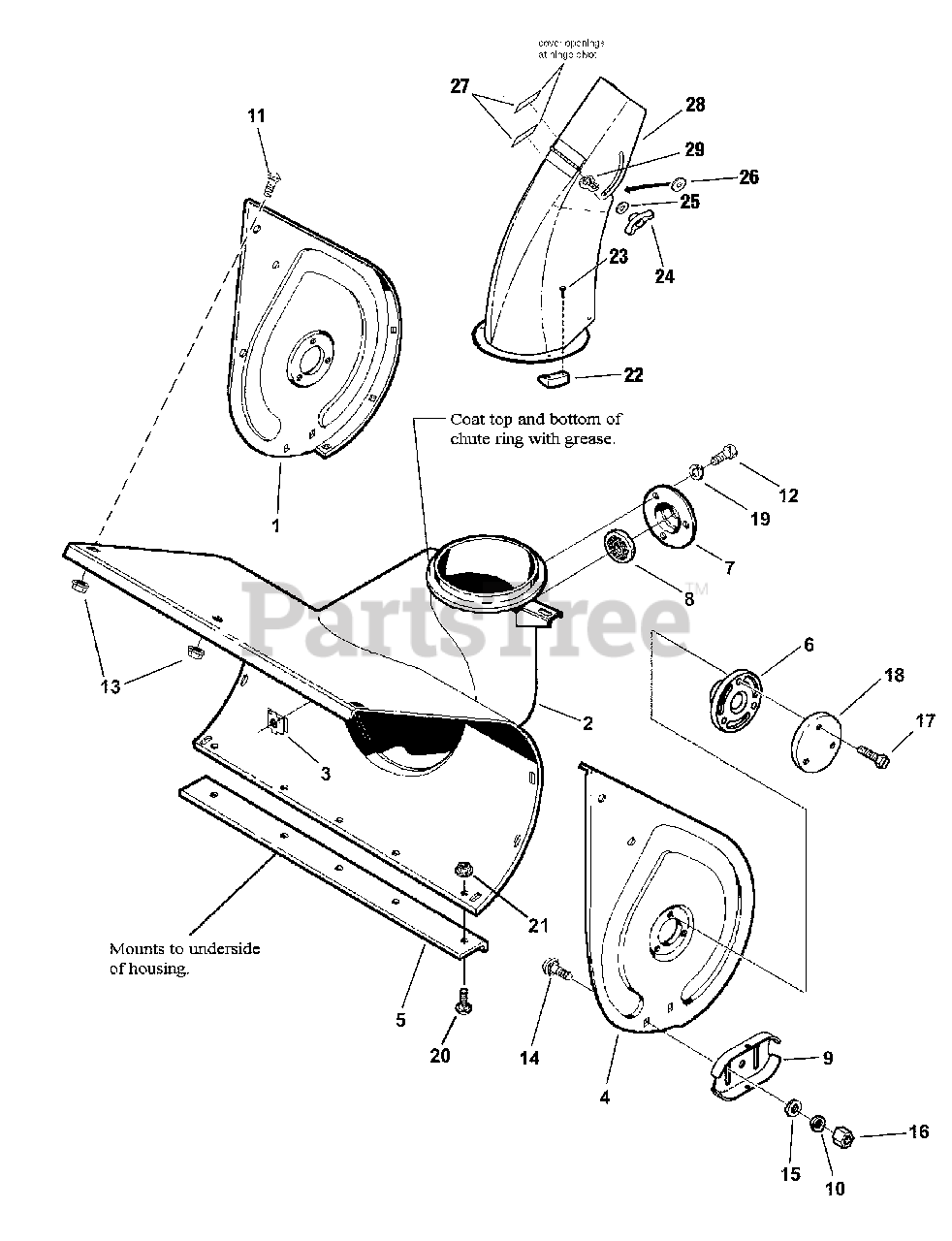

Auger Housing Group (4248ch3p) Parts Diagram

  • Title

1

Simplicity 7072543SM

END PLATE, RH- Auger Housing- Orange

$103.99

$

Usually ships in 2-12 days

0

2

Simplicity 7072548SM

WELDMENT, Auger Housing - 22" - Orange

$524.99

$

Usually ships in 2-12 days

0

2

Simplicity 7072568SM

WELDMENT, Auger Housing - 24" - Orange

$598.99

$

Usually ships in 2-12 days

0

3

Simplicity 1930659SM

RETAINER NUT, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

4

Simplicity 7072546SM

END PLATE, LH- Auger Housing- Orange

$101.99

$

Usually ships in 2-12 days

0

5

Simplicity 7600017SM

BLADE, Scraper- 22"

$70.99

$

In Stock, Qty 7

0

5

Simplicity 7600018SM

BLADE, Scraper- 24"

$66.99

$

In Stock, only 3 left!

0

6

Simplicity 1726457SM

BEARING, Auger

$

$

Not available

7

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 20+

0

8

Simplicity 2108202SM

BALL BEARING

$11.99

$

In Stock, Qty 20+

0

9

Simplicity 7072553

SKID SHOE, Reversible- Orange
(Superseded to 1727854BMYP)

$16.99

$

In Stock, Qty 20+

0

10

Simplicity 1916965SM

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, Qty 16

0

11

Simplicity 1931315SM

BOLT, 1/4-20 x 1/2" Short Square Neck Carriage, GR 5
(Superseded to 703978)

$3.99

$

In Stock, Qty 20+

0

12

Simplicity 1925205SM

SCREW, 5/16-18 x 5/8" Hex Head Cap, GR 5
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

13

Simplicity 1930641SM

NUT, 1/4-20 Hex Flange Lock Large
(Superseded to 703161)

$3.49

$

In Stock, Qty 20+

0

14

Simplicity 1960711SM

BOLT, 3/8-16 x 3/4" Square Neck Carriage
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

15

Simplicity 1924940SM

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

16

Simplicity 1960687SM

NUT, 3/8-16 Hex Nyloc
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

17

Simplicity 7091841SM

SCREW, 5/16-18 x 1" Hex Washer Self-Tap

$3.49

$

Usually ships in 2-12 days

0

18

Simplicity 7072551SM

CAP, Bearing, Orange

$3.99

$

In Stock, only 2 left!

0

19

Simplicity 1917356SM

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

20

Simplicity 7091208SM

BOLT, 1/4-20 x 7/16" Short Square Neck Carriage, GR 5

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 7091584SM

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

$4.49

$

In Stock, Qty 6

0

22

Simplicity 7011938SM

RETAINER, Spout

$

$

Not available

23

Simplicity 7091075SM

SCREW, #10-24 x 5/8" Hex Washer Self-Tap

$4.49

$

In Stock, Qty 5

0

24

Simplicity 1716632SM

WING KNOB, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

25

Simplicity 7091076SM

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

26

Simplicity 2860210SM

WASHER, 3/8" Flat (Nylon)

$4.49

$

In Stock, only 3 left!

0

27

Simplicity 7073599

ASSY, Decal/Steel Discharge Chute

Note: (Includes 7071880 Decal)

$

$

Not available

27

Simplicity 7074744

ASSEMBLY, Decal/Steel Discharge Chute

Note: (CE/Export) (Includes 1727207 Decal)

$

$

Not available

28

Simplicity 7073192SM

WELDMENT, Steel Chute

$233.99

$

Usually ships in 2-12 days

0

29

Simplicity 1931333SM

BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR 5
(Superseded to 703185)

$3.49

$

In Stock, Qty 16

0
