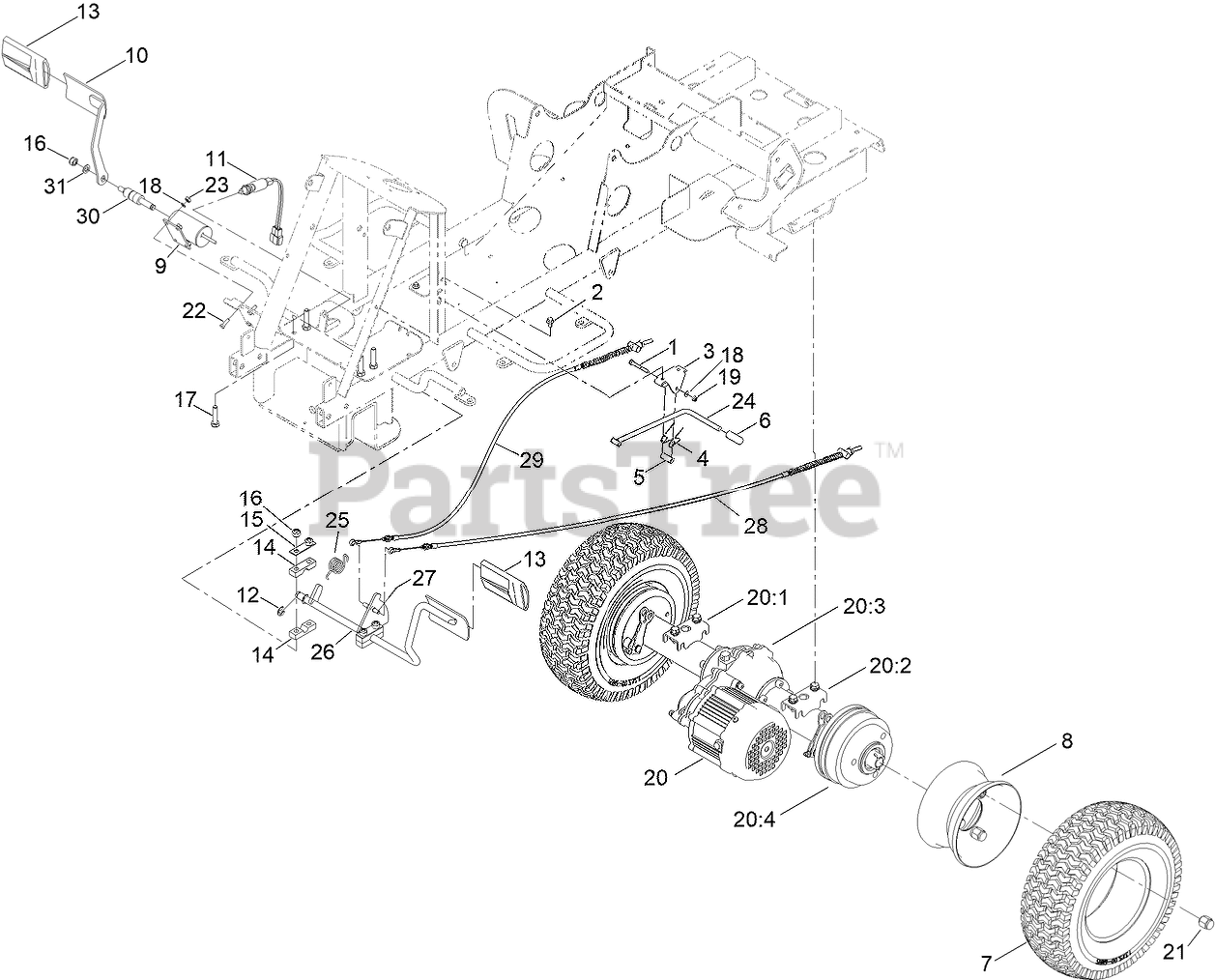

75501 (eS 3200 DC) - Toro 81cm Rear-Engine Riding Mower, 72V (SN: 322000001 - 322999999) (2022) Transmission Assembly Parts Diagram

81cm Rear-Engine Riding Mower, 72V

Transmission Assembly Parts Diagram

  • Title
1

$

$

Currently unavailable

2

$

$

Currently unavailable

3

Toro 134-7209

BRACKET, PARKING BRAKE

$

$

Currently unavailable

4

Toro 134-7210

SPRING, PARKING BRAKE

$

$

Currently unavailable

5

Toro 134-7211

BUSH, PARKING BRAKE

$

$

Currently unavailable

6

Toro 134-7212

HANDLE, PARKING BRAKE

$

$

Currently unavailable

7

Toro 134-6164

TYRE, WHEEL

$

$

Currently unavailable

8

Toro 134-7214

HUB, REAR WHEEL

$

$

Currently unavailable

9

Toro 134-6514

HUB ASM, THROTTLE

$

$

Currently unavailable

10

Toro 134-6458

PEDAL, LEFT

$

$

Currently unavailable

11

Toro 134-6189

BRAKING SWITCH ASM

$

$

Currently unavailable

12

Toro 134-5814

CLIP, PEDAL HOLDER

$

$

Currently unavailable

13

Toro 134-6188

COVER, PEDAL

$

$

Currently unavailable

14

Toro 134-5813

BLOCK, PEDAL HOLDER

$

$

Currently unavailable

15

Toro 134-5812

PLATE, PEDAL MOUTING

$

$

Currently unavailable

16

Toro 09441

NUT-HEX, NI

$

$

Not available

17

Toro 09631

BOLT

$

$

Currently unavailable

18

Toro 09470

WASHER

$

$

Currently unavailable

19

Toro 09430

NUT-NYLOC

$

$

Not available

20

Toro 134-6166

TRANSMISSION ASSEMBLY

$

$

Currently unavailable

20:1

Toro 134-6167

SEMI AXLE ASM

$

$

Currently unavailable

20:2

Toro 134-6172

SEMI AXLE ASM

$

$

Currently unavailable

20:3

Toro 134-6304

REDUCTION GEARBOX ASM

$

$

Currently unavailable

20:4

Toro 134-6177

REAR MOTOR ASM

$

$

Currently unavailable

21

$

$

Currently unavailable

22

Toro ZDH1E016U

SCREW-HH

$

$

Currently unavailable

23

$

$

Currently unavailable

24

Toro 134-7217

LEVER, HAND BRAKE

$

$

Currently unavailable

25

Toro 134-5815

SPRING, PEDAL

$

$

Currently unavailable

26

Toro 134-7220

PEDAL, BRAKE

$

$

Currently unavailable

27

Toro 134-5787

BOBBY PIN

$

$

Currently unavailable

28

Toro 134-7221

CABLE, BRAKE (LH)

$

$

Currently unavailable

29

Toro 134-7222

CABLE, BRAKE (RH)

$

$

Currently unavailable

30

Toro 134-6466

SHAFT, THROTTLE

$

$

Currently unavailable

31

Toro 134-6465

WASHER

$

$

Currently unavailable
