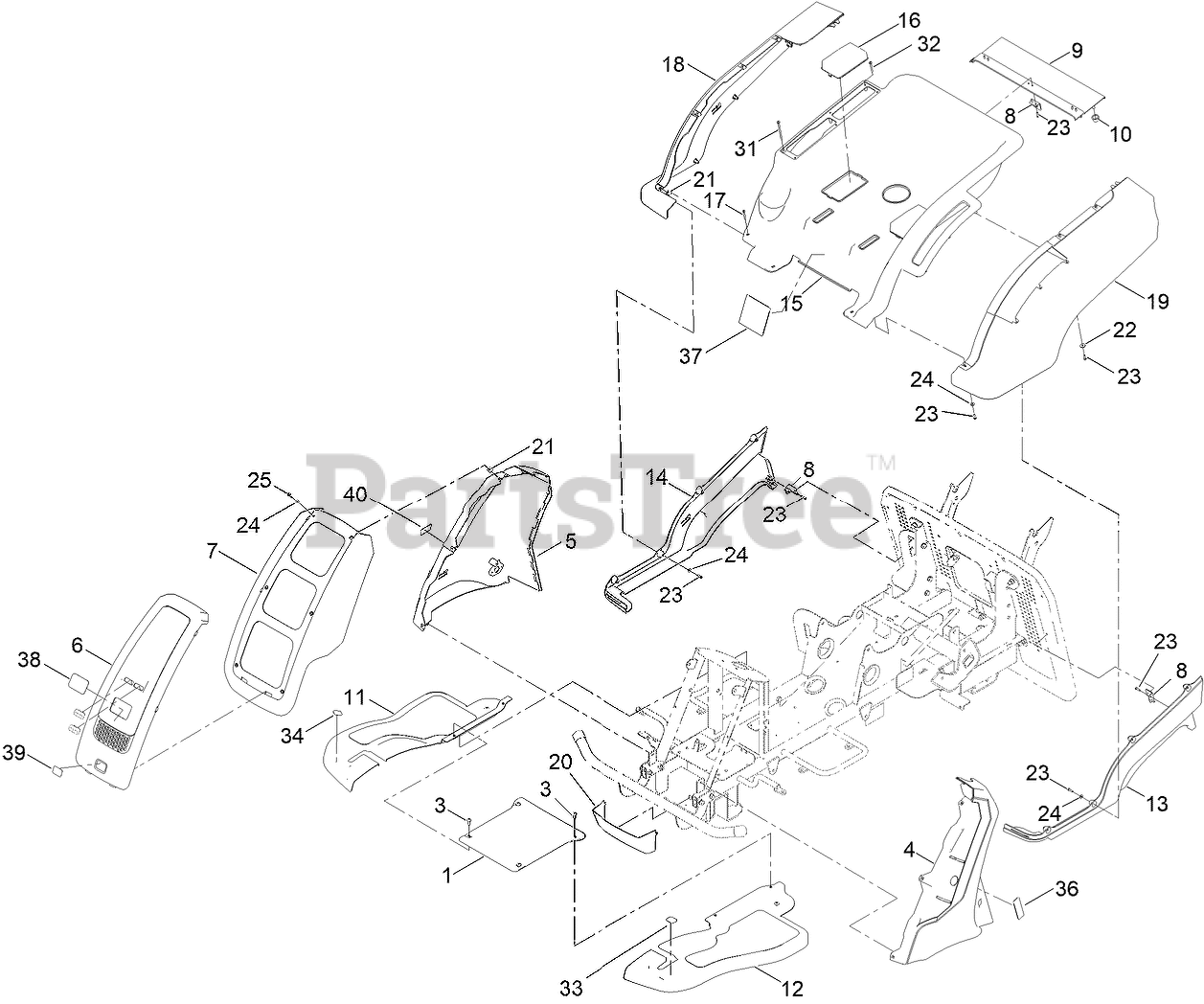

75501 (eS 3200 DC) - Toro 81cm Rear-Engine Riding Mower, 72V (SN: 322000001 - 322999999) (2022) Cover Assembly Parts Diagram

81cm Rear-Engine Riding Mower, 72V

Cover Assembly Parts Diagram

  • Title
1

Toro 134-7192

PLATE, CENTRE

$

$

Currently unavailable

3

$

$

Currently unavailable

4

Toro 134-7248

COVER, LEFT REAR (STEERING)

$

$

Currently unavailable

5

Toro 134-7247

COVER, RIGHT REAR (STEERING)

$

$

Currently unavailable

6

Toro 134-7249

COVER, FRONT (STEERING)

$

$

Currently unavailable

7

Toro 134-7250

COVER, MIDDLE (STEERING)

$

$

Currently unavailable

8

Toro 134-7194

BRACKET, COVER ATTACHMENT

$

$

Currently unavailable

9

Toro 134-7241

BODYWORK, COVER REAR

$

$

Currently unavailable

10

Toro 134-7240

SPACER

$

$

Currently unavailable

11

Toro 134-7195

PANEL, FOOT (RH)

$

$

Currently unavailable

12

Toro 134-7196

PANEL, FOOT (LH)

$

$

Currently unavailable

13

Toro 134-7239

BODYWORK, COVER LOWER LEFT

$

$

Currently unavailable

14

Toro 134-7238

BODYWORK, COVER LOWER RIGHT

$

$

Currently unavailable

15

Toro 134-7245

COVER, MIDDLE

$

$

Currently unavailable

16

Toro 134-7244

COVER, HOC

$

$

Currently unavailable

17

Toro 134-5884

BOLT PH

$

$

Currently unavailable

18

Toro 134-7242

BODYWORK, COVER RIGHT UPPER

$

$

Currently unavailable

19

Toro 134-7243

BODYWORK, COVER LEFT UPPER

$

$

Currently unavailable

20

Toro 134-7246

COVER, FRONT LOWER

$

$

Currently unavailable

21

Toro 134-5872

CLIP, BOLT

$

$

Currently unavailable

22

Toro 134-5881

WASHER

$

$

Currently unavailable

23

$

$

Currently unavailable

24

Toro 134-7198

WASHER

$

$

Currently unavailable

25

$

$

Currently unavailable

31

$

$

Currently unavailable

32

$

$

Currently unavailable

33

Toro 134-6032

DECAL - BRAKE

$

$

Currently unavailable

34

Toro 134-6033

DECAL - PROPEL

$

$

Currently unavailable

35

Toro 134-6030

DECAL - HOC

Note: Not illustrated

$

$

Currently unavailable

36

Toro 134-6565

DECAL - PARKING BRAKE

$

$

Currently unavailable

37

Toro 134-6562

DECAL - DANGER

$

$

Currently unavailable

38

Toro 134-6071

DECAL - TORO LOGO

$

$

Currently unavailable

39

Toro 134-6070

DECAL - ERIDER BATTERY

$

$

Currently unavailable

40

Toro 134-6026

DECAL - CHARGING PORT

$

$

Currently unavailable
