75500 (eS 3000 SD) - Toro 76cm Rear-Engine Riding Mower, 72V (SN: 323000001 - 323999999) (2023) Front Wheel Assembly Parts Diagram

76cm Rear-Engine Riding Mower, 72V

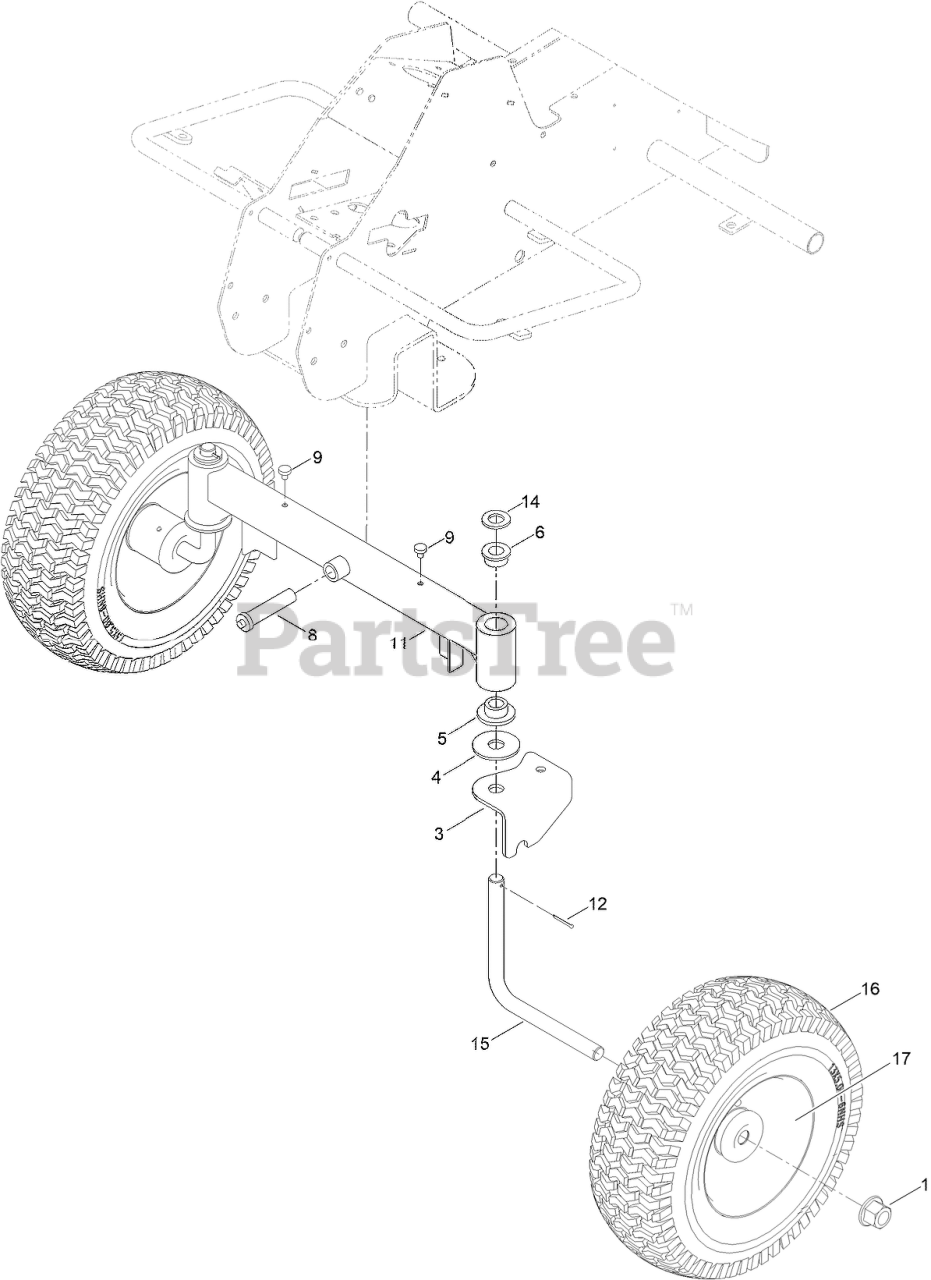

Front Wheel Assembly Parts Diagram

  • Title
1

Toro 134-3765

NUT-FLANGE, NI

$

$

Currently unavailable

3

Toro 134-6598

MOUNT FRONT WHEEL

$

$

Currently unavailable

4

Toro 134-5802

WASHER

$

$

Currently unavailable

5

Toro 134-5803

LARGE BUSH, AXLE

$

$

Currently unavailable

6

Toro 134-5804

SMALL BUSH, AXLE

$

$

Currently unavailable

8

Toro 134-5807

PIN, FRONT AXLE TILT

$

$

Currently unavailable

9

Toro 134-5808

STOPPER, FRONT AXLE TILT

$

$

Currently unavailable

11

Toro 134-6183

FRONT AXLE ASM

$

$

Currently unavailable

12

$

$

Currently unavailable

14

Toro 134-6450

WASHER

$

$

Currently unavailable

15

Toro 134-6597

MOUNT FRONT WHEEL

$

$

Currently unavailable

16

Toro 134-6164

TYRE, WHEEL

$

$

Currently unavailable

17

Toro 134-7218

HUB, WHEEL (FRONT)

$

$

Currently unavailable
