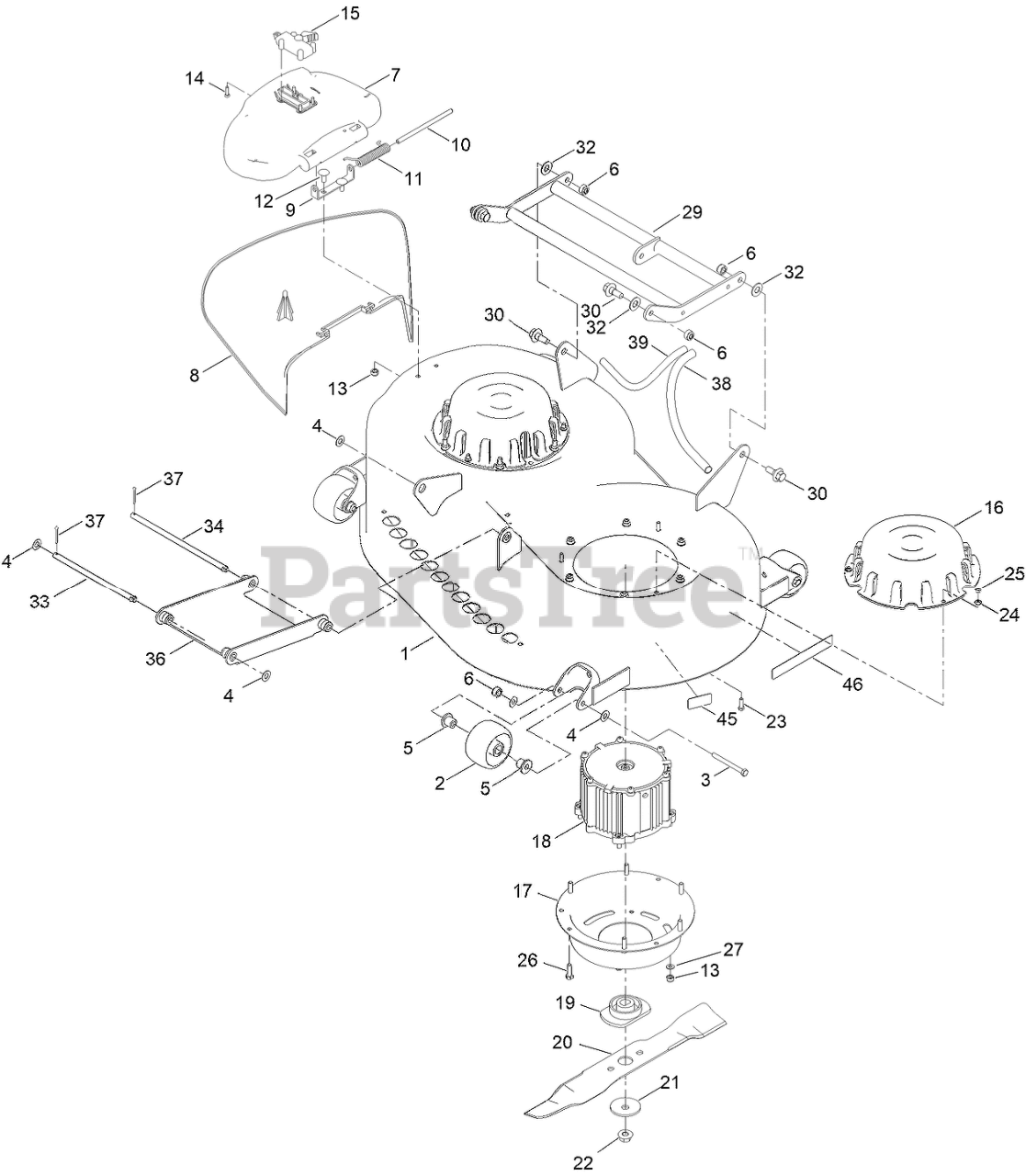

75500 (eS 3000 SD) - Toro 76cm Rear-Engine Riding Mower, 72V (SN: 322000001 - 322999999) (2022) Deck Assembly Parts Diagram

76cm Rear-Engine Riding Mower, 72V

Deck Assembly Parts Diagram

  • Title
1

Toro 134-6133

WELDED DECK ASM

$

$

Currently unavailable

2

Toro 134-5706

WHEEL, DECK

$

$

Currently unavailable

3

Toro 09703

BOLT-HH

$

$

Currently unavailable

4

Toro ZWP1H000U

WASHER-PLAIN

$

$

Currently unavailable

5

Toro 134-5709

INSERT, DECK WHEEL

$

$

Currently unavailable

6

Toro 09441

NUT-HEX, NI

$

$

Not available

7

Toro 134-5712

COVER, DECK CHUTE

$

$

Currently unavailable

8

Toro 134-5378

CHUTE, DECK

$

$

Currently unavailable

9

Toro 134-5714

BRACKET, DISCHARGE FLAP

$

$

Currently unavailable

10

Toro 134-5715

ROD, DISCHARGE FLAP

$

$

Currently unavailable

11

Toro 134-5716

SPRING, DISCHARGE FLAP

$

$

Currently unavailable

12

Toro 09570

BOLT-CARRIAGE
(Superseded to 09668)

$

$

Not available

13

Toro 09438

NUT-NYLOC

$

$

Not available

14

$

$

Currently unavailable

15

Toro 134-6596

DECK CHUTE CLIP, ASM

$

$

Currently unavailable

16

Toro 134-5721

TOP COVER, DECK MOTOR

$

$

Currently unavailable

17

Toro 134-5722

BOTTOM COVER, DECK MOTOR

$

$

Currently unavailable

18

Toro 134-5723

MOTOR, DECK

$

$

Currently unavailable

19

Toro 134-5724

HUB, BLADE MOTOR

$

$

Currently unavailable

20

Toro 134-5725

BLADE, DECK

$

$

Currently unavailable

21

Toro 134-5726

WASHER, BLADE

$

$

Currently unavailable

22

Toro 134-5727

NUT, BLADE

$

$

Not available

23

Toro ZDH1E016U

SCREW-HH

$

$

Currently unavailable

24

Toro 09470

WASHER

$

$

Currently unavailable

25

Toro 09746

NUT-LOCK

$

$

Currently unavailable

26

Toro 09363

SCREW-HH

$

$

Not available

27

Toro ZWP1F000U

WASHER-PLAIN

$

$

Currently unavailable

29

Toro 134-6145

REAR HOC LIFTING ASM

$

$

Currently unavailable

30

Toro 134-5735

FLANGE BOLT

$

$

Currently unavailable

32

Toro 09479

WASHER-PLAIN

$

$

Not available

33

Toro 134-6148

ROD, FRONT DECK MOUTNING (SHORT)

$

$

Currently unavailable

34

Toro 134-5739

ROD, FRONT DECK MOUTNING

$

$

Currently unavailable

36

Toro 134-6149

MOUNTING BRACKET ASM, DECK

$

$

Currently unavailable

37

$

$

Currently unavailable

38

Toro 134-5743

COVER, WIRES

$

$

Currently unavailable

39

Toro 134-6301

COVER, WIRES

$

$

Currently unavailable

45

Toro 134-6069

DECAL - NO SPRAY

$

$

Currently unavailable

46

Toro 134-6027

DECAL - DECK WARNING

$

$

Currently unavailable
