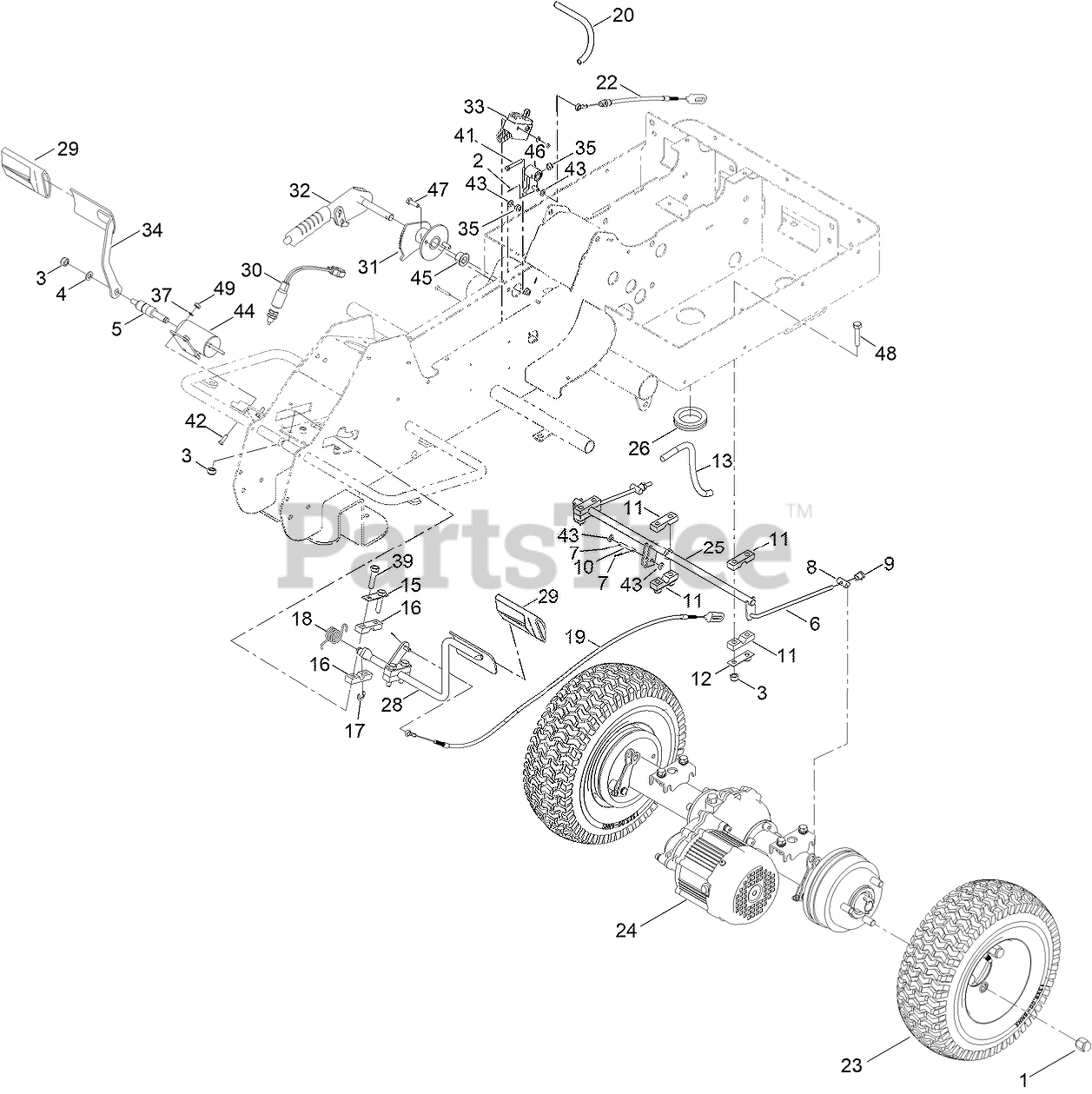

75500 (eS 3000 SD) - Toro 76cm Rear-Engine Riding Mower, 72V (SN: 321000001 - 321999999) (2021) Transmission Assembly Parts Diagram

76cm Rear-Engine Riding Mower, 72V

Transmission Assembly Parts Diagram

  • Title

$

$

Currently unavailable

2

Toro 134-6306

BOBBY PIN

$

$

Currently unavailable

3

Toro 09441

NUT-HEX, NI

$

$

Not available

4

Toro 134-6465

WASHER

$

$

Currently unavailable

5

Toro 134-6466

SHAFT, THROTTLE

$

$

Currently unavailable

6

Toro 134-5786

ROD, BRAKE CONNECTION

$

$

Currently unavailable

7

Toro 134-5787

BOBBY PIN

$

$

Currently unavailable

8

Toro 134-5788

PIN, BRAKE CONNECTION (FLAT)

$

$

Currently unavailable

9

Toro 134-5789

NUT , BRAKE ADJUSTMENT

$

$

Currently unavailable

10

Toro 134-5791

PIN, BRAKE CABLE

$

$

Currently unavailable

11

Toro 134-5792

MOUNTING, BRAKE ROD

$

$

Currently unavailable

12

Toro 134-5793

PLATE, BRAKE MOUTING

$

$

Currently unavailable

13

Toro 134-5796

COVER, WIRE

$

$

Currently unavailable

15

Toro 134-5812

PLATE, PEDAL MOUTING

$

$

Currently unavailable

16

Toro 134-5813

BLOCK, PEDAL HOLDER

$

$

Currently unavailable

17

Toro 134-5814

CLIP, PEDAL HOLDER

$

$

Currently unavailable

18

Toro 134-5815

SPRING, PEDAL

$

$

Currently unavailable

19

Toro 134-6506

CABLE, PEDAL BRAKE

$

$

Currently unavailable

20

Toro 134-5818

COVER, WIRE

$

$

Currently unavailable

22

Toro 134-6507

CABLE, HAND BRAKE

$

$

Currently unavailable

23

Toro 134-6163

REAR WHEEL ASM

$

$

Currently unavailable

24

Toro 134-6166

TRANSMISSION ASSEMBLY

$

$

Currently unavailable

25

Toro 134-6178

REAR TRANSISION ASM

$

$

Currently unavailable

26

Toro 134-6182

INSERT, WIRE (SMALL)

$

$

Currently unavailable

28

Toro 134-6184

BRAKE PEDAL ASM

$

$

Currently unavailable

29

Toro 134-6188

COVER, PEDAL

$

$

Currently unavailable

30

Toro 134-6189

BRAKING SWITCH ASM

$

$

Currently unavailable

31

Toro 134-6193

HAND BRAKE, HUB ASM

$

$

Currently unavailable

32

Toro 134-6196

HAND BRAKE, HANDLE ASM

$

$

Currently unavailable

33

Toro 134-6200

SWITCH ASM

$

$

Currently unavailable

34

Toro 134-6458

PEDAL, LEFT

$

$

Currently unavailable

35

Toro 09438

NUT-NYLOC

$

$

Not available

37

Toro 09470

WASHER

$

$

Currently unavailable

39

Toro 09631

BOLT

$

$

Currently unavailable

41

$

$

Currently unavailable

42

Toro ZDH1E016U

SCREW-HH

$

$

Currently unavailable

43

Toro ZWP1F000U

WASHER-PLAIN

$

$

Currently unavailable

44

Toro 134-6514

HUB ASM, THROTTLE

$

$

Currently unavailable

45

Toro 134-6471

BUSHING, PARKING BRAKE

$

$

Currently unavailable

46

Toro 134-6472

ASM, SWITCH PIVOT

$

$

Currently unavailable

47

Toro 09363

SCREW-HH

$

$

Not available

48

Toro 09681

BOLT

$

$

Not available

49

$

$

Currently unavailable
