75500 (eS 3000 SD) - Toro 76cm Rear-Engine Riding Mower, 72V (SN: 321000001 - 321999999) (2021) Steering Assembly Parts Diagram

76cm Rear-Engine Riding Mower, 72V

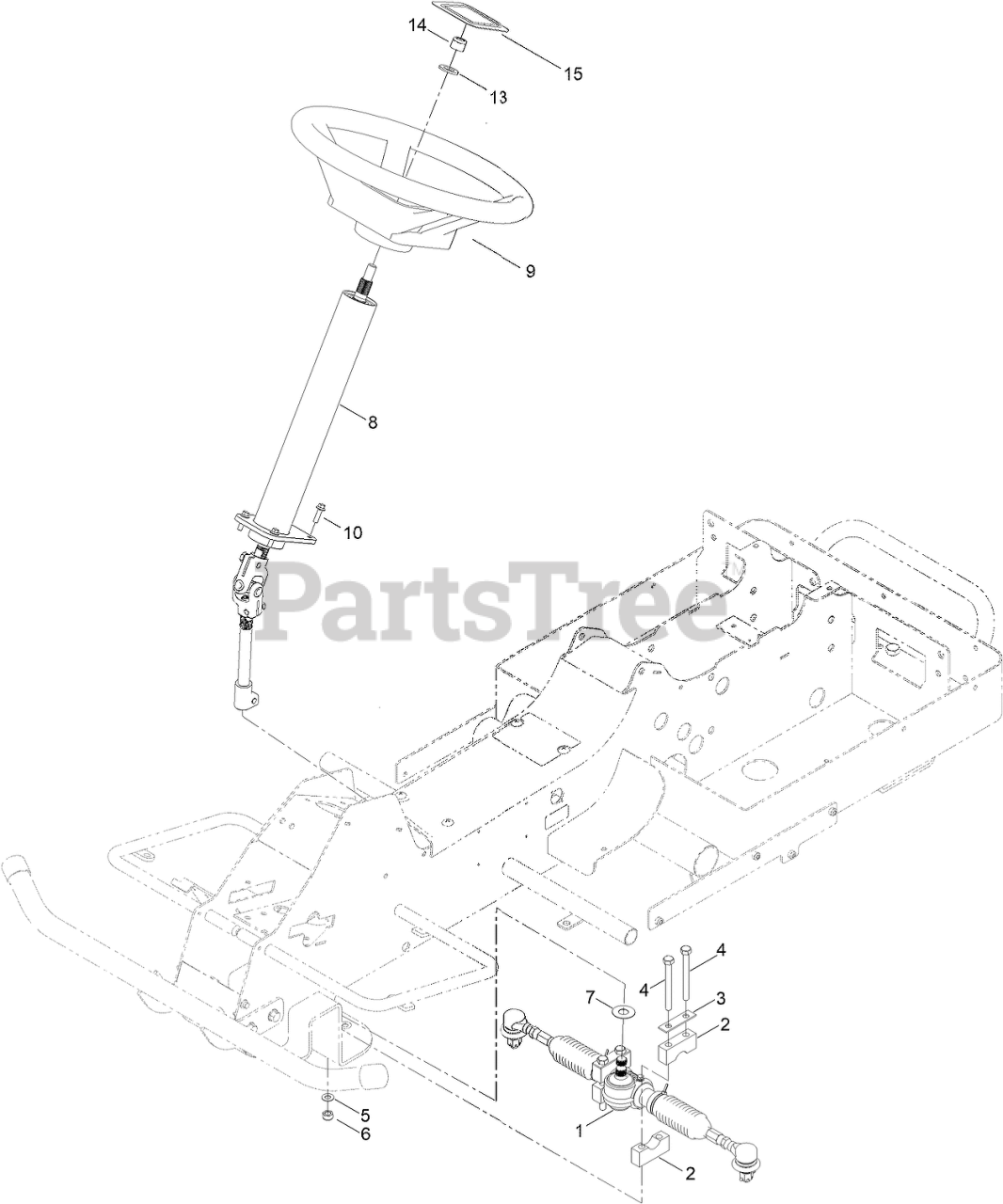

Steering Assembly Parts Diagram

  • Title
1

Toro 134-6201

STEERING RACK ASM

$

$

Currently unavailable

2

Toro 134-5849

MOUNTING BLOCK, STEERING RACK

$

$

Currently unavailable

3

Toro 134-5850

PLATE, MOUNTING BLOCK

$

$

Currently unavailable

$

$

Currently unavailable

5

Toro ZWP1H000U

WASHER-PLAIN

$

$

Currently unavailable

6

Toro 09441

NUT-HEX, NI

$

$

Not available

7

Toro 134-5855

WASHER

$

$

Currently unavailable

8

Toro 134-6202

STEERING ROD ASM

$

$

Currently unavailable

9

Toro 134-5860

STEERING WHEEL

$

$

Currently unavailable

10

Toro 134-5864

BOLT-M6

$

$

Currently unavailable

11

Toro 134-5865

NUT-M6

Note: Not illustrated

$

$

Currently unavailable

13

Toro 09488

WASHER-PLAIN

$

$

Currently unavailable

14

Toro ZNN1L000U

NUT-NYLOC

$

$

Not available

15

Toro 134-6340

COVER, STEERING WHEEL

$

$

Currently unavailable
