75500 (eS 3000 SD) - Toro 76cm Rear-Engine Riding Mower, 72V (SN: 321000001 - 321999999) (2021) Light Assembly Parts Diagram

76cm Rear-Engine Riding Mower, 72V

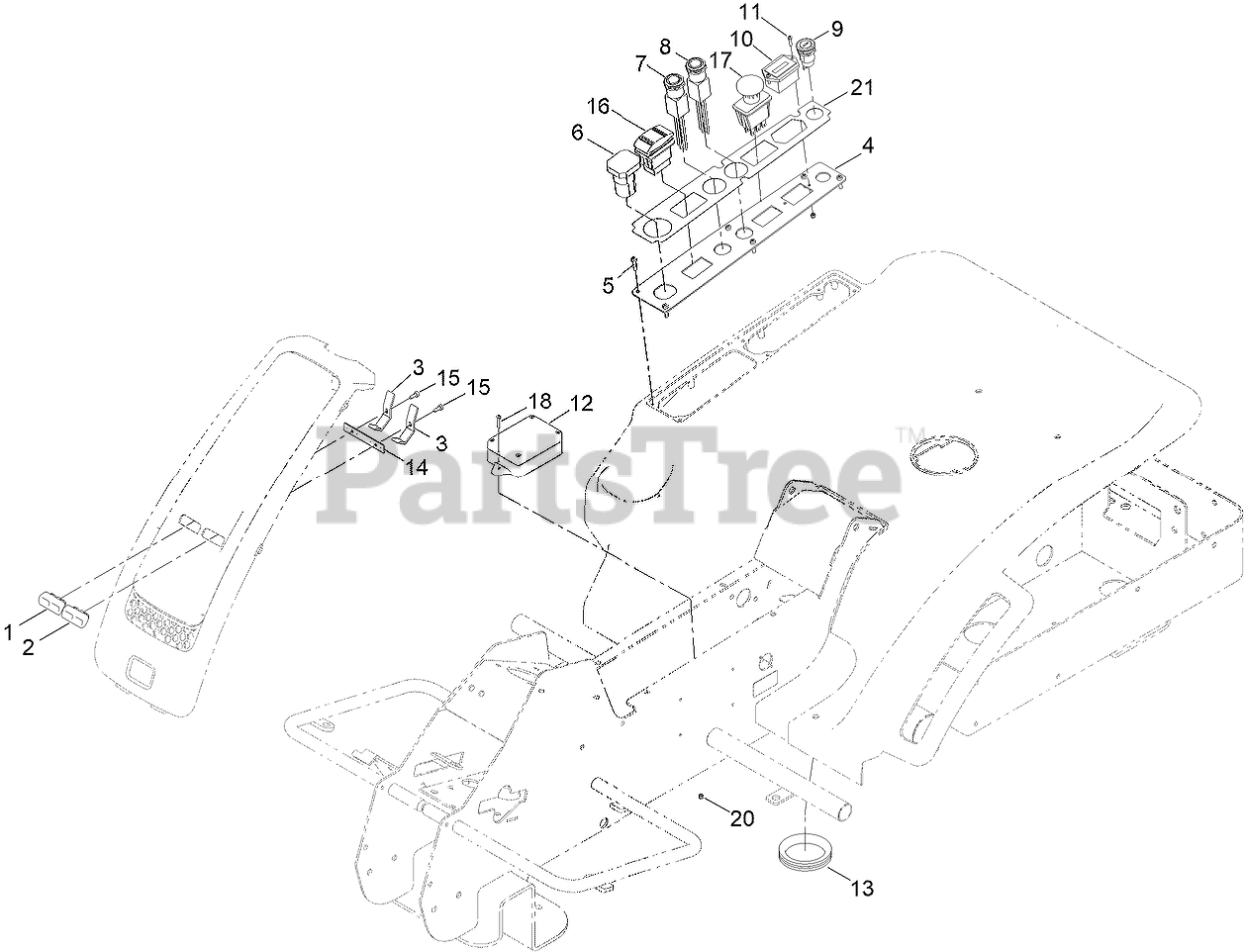

Light Assembly Parts Diagram

  • Title
1

Toro 134-5383

CASING, LIGHT (RIGHT, FRONT)

$

$

Currently unavailable

2

Toro 134-5384

CASING, LIGHT (LEFT, FRONT)

$

$

Currently unavailable

3

Toro 134-5385

BRACKET, LED LIGHTS

$

$

Currently unavailable

4

Toro 134-5889

PLATE, SWITCHES

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Toro 134-5891

USB SWITCH

$

$

Currently unavailable

7

Toro 134-5892

RMO, BUTTON

$

$

Currently unavailable

8

Toro 134-5893

CCT, BUTTON

$

$

Currently unavailable

9

Toro 134-5898

SWITCH, IGNITION

$

$

Currently unavailable

10

Toro 134-5899

INDICATOR, BATTERY LEVEL

$

$

Currently unavailable

11

$

$

Currently unavailable

12

Toro 134-6595

CONTROL BOX, ASM

$

$

Currently unavailable

13

Toro 134-5919

INSERT, RUBBER CABLE SMALL

$

$

Currently unavailable

14

Toro 134-5925

PLATE, LIGHTS

$

$

Currently unavailable

15

$

$

Currently unavailable

16

Toro 134-6203

DIRECTION SWITCH ASM

$

$

Currently unavailable

17

Toro 134-6204

CUTTER BUTTON ASM

$

$

Currently unavailable

18

$

$

Currently unavailable

20

Toro HY09698

NUT-NYLOC

$

$

Currently unavailable

21

Toro 134-6028

DECAL - CONTROL PANEL

$

$

Currently unavailable
