75500 (eS 3000 SD) - Toro 76cm Rear-Engine Riding Mower, 72V (SN: 321000001 - 321999999) (2021) Body Styling Assembly Parts Diagram

76cm Rear-Engine Riding Mower, 72V

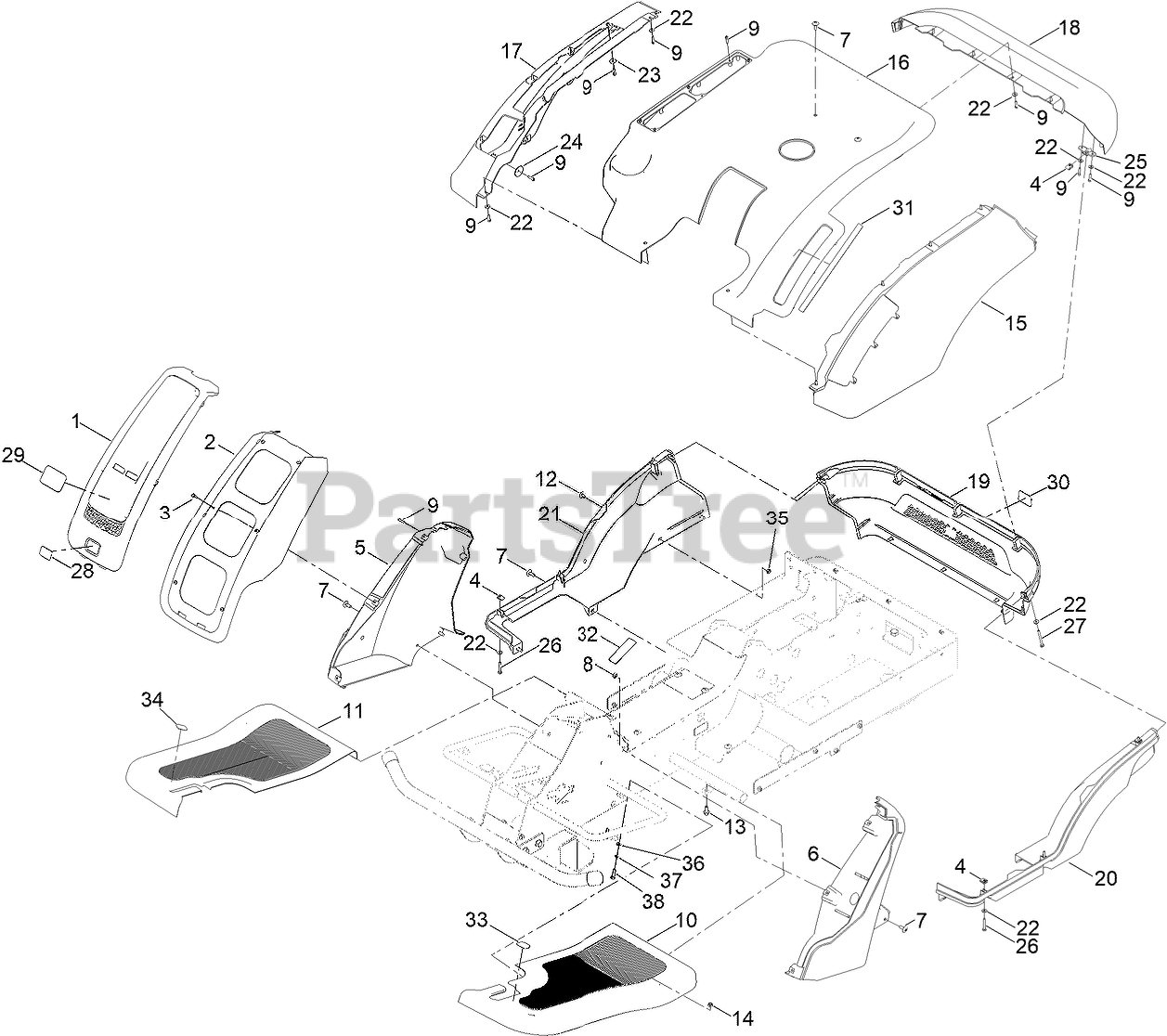

Body Styling Assembly Parts Diagram

  • Title
1

Toro 134-5380

FRONT PANEL, STEERING COLUMN

$

$

Currently unavailable

2

Toro 134-5379

FRONT PANEL MOUTNING, STEERING COLUMN

$

$

Currently unavailable

3

Toro 134-5871

BOLT PH

$

$

Currently unavailable

4

Toro 134-5872

CLIP, BOLT

$

$

Currently unavailable

5

Toro 134-5381

RH PANEL, STEERING COLUMN

$

$

Currently unavailable

6

Toro 134-5382

LH PANEL, STEERING COLUMN

$

$

Currently unavailable

7

Toro 134-5873

CAP BOLT

$

$

Currently unavailable

8

Toro 09438

NUT-NYLOC

$

$

Not available

9

Toro 134-5874

BOLT PH

$

$

Currently unavailable

10

Toro 134-6501

PANEL FLOOR, LH

$

$

Currently unavailable

11

Toro 134-6502

PANEL FLOOR, RH

$

$

Currently unavailable

12

Toro 134-6515

CAP BOLT

$

$

Currently unavailable

13

Toro 134-3739

SCREW-HHF

$

$

Currently unavailable

14

$

$

Currently unavailable

15

Toro 134-5372

COVER, LH/MIDDLE

$

$

Currently unavailable

16

Toro 134-5370

COVER, TOP

$

$

Currently unavailable

17

Toro 134-5371

COVER, RH/MIDDLE

$

$

Currently unavailable

18

Toro 134-5373

COVER, TOP/REAR

$

$

Currently unavailable

19

Toro 134-5376

COVER, MIDDLE/REAR

$

$

Currently unavailable

20

Toro 134-5374

COVER, RH/BOTTOM

$

$

Currently unavailable

21

Toro 134-5375

COVER, LH/BOTTOM

$

$

Currently unavailable

22

Toro 134-5880

WASHER

$

$

Currently unavailable

23

Toro 134-5881

WASHER

$

$

Currently unavailable

24

Toro 134-5882

WASHER, BENT

$

$

Currently unavailable

25

Toro 134-5883

MOUNTNG BRACKET, REAR PANEL

$

$

Currently unavailable

26

Toro 134-5884

BOLT PH

$

$

Currently unavailable

27

Toro 134-5885

BOLT PH

$

$

Currently unavailable

28

Toro 134-6070

DECAL - ERIDER BATTERY

$

$

Currently unavailable

29

Toro 134-6071

DECAL - TORO LOGO

$

$

Currently unavailable

30

Toro 134-6072

DECAL - TORO LOGO

$

$

Currently unavailable

31

Toro 134-6030

DECAL - HOC

$

$

Currently unavailable

32

Toro 134-6029

DECAL - PARKING BRAKE

$

$

Currently unavailable

33

Toro 134-6032

DECAL - BRAKE

$

$

Currently unavailable

34

Toro 134-6033

DECAL - PROPEL

$

$

Currently unavailable

35

$

$

Currently unavailable

36

Toro 134-5732

WASHER

$

$

Currently unavailable

37

Toro 134-5773

SPRING WASHER

$

$

Currently unavailable

38

$

$

Currently unavailable
