755 M (1693648) - Simplicity 22" Snow Thrower, 7hp Frame Parts Diagram

22" Snow Thrower, 7hp

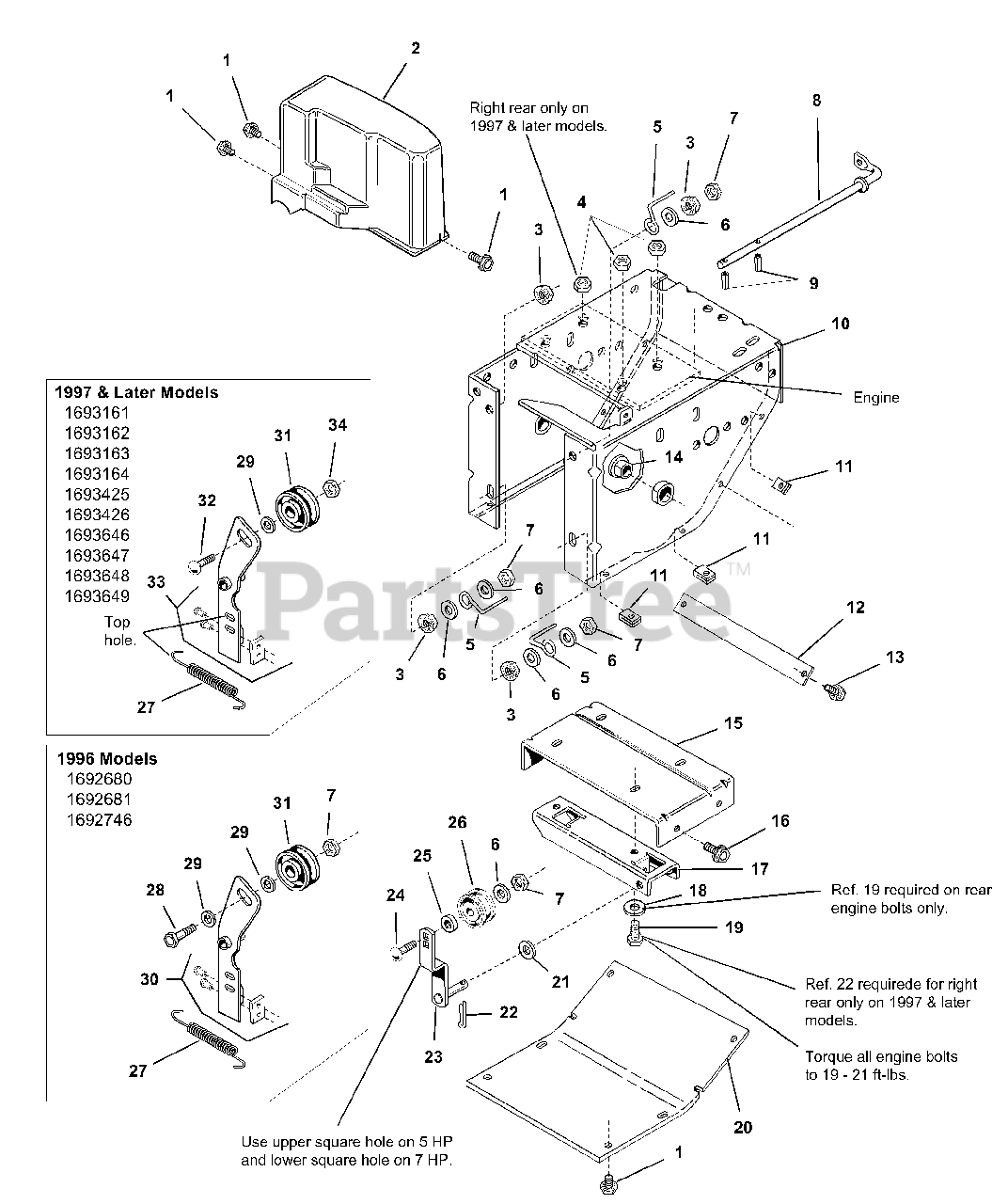

Frame Parts Diagram

  • Title

1

Simplicity 1925003SM

SCREW, Taptite, 1/4-20 x 1/2
(Superseded to 704130)

$3.99

$

In Stock, Qty 5

0

2

Simplicity 1725379SM

COVER, Belt,

Note: (Except 1693646 & 1693648)

$30.99

$

In Stock, only 2 left!

0

2

Simplicity 1725379SM

COVER, Belt,

Note: (1693646 & 1693648)

$30.99

$

In Stock, only 2 left!

0

3

Simplicity 1930645SM

NUT, Hex, Flange, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

4

Simplicity 1931277SM

NUT, Hex, Flange Whizlock, 5/16-18
(Superseded to 703409)

Note: Right rear only on 1997 & later models.

$5.49

$

In Stock, Qty 20+

0

5

Simplicity 1674315SM

GUIDE, Belt

Note: (Qty 3 on 1692680, 1692681, 1692746)

$4.99

$

Usually ships in 2-12 days

0

6

Simplicity 1924940SM

WASHER, Flat,
(Superseded to 703878)

Note: (Qty 6 on 1692680, 1692681, 1692746)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 1960251SM

NUT, Hex, Jam, Center-lock, 3/8-16,
(Superseded to 703230)

Note: (Qty 4 on 1692680, 1692681, 1692746)

$4.99

$

In Stock, Qty 9

0

8

Simplicity 1715092SM

ROD, Idler

$20.99

$

Usually ships in 2-12 days

0

9

Simplicity 2816169SM

PIN, Spring

$4.49

$

Usually ships in 2-12 days

0

10

Simplicity 1725339SM

FRAME,

Note: (Except 1693646 & 1693648)

$

$

Not available

10

Simplicity 1725339SM

FRAME,

Note: (1693646 & 1693648)

$

$

Not available

11

Simplicity 1926018SM

NUT, Speed 1/4-20

$4.49

$

In Stock, Qty 12

0

12

Simplicity 1715559A

TIE BAR SUPPORT
(Superseded to 1715559SM)

$14.99

$

Usually ships in 2-12 days

0

13

Simplicity 1929477SM

SCREW, Taptite, #10-24 x 1/2

$4.49

$

Usually ships in 2-12 days

0

14

Simplicity 1666001SM

BUSHING

$6.99

$

In Stock, Qty 9

0

15

Simplicity 1715756A

FRAME BRACKET
(Superseded to 1715756SM)

$33.99

$

Usually ships in 2-12 days

0

16

Simplicity 1924856SM

SCREW, Taptite, 5/16-18 X 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

17

Simplicity 1715111SM

SUPPORT, Pivot

$12.99

$

Usually ships in 2-12 days

0

18

Simplicity 1919381SM

WASHER
(Superseded to 703298)

Note: Ref. 19 required on rear engine bolts only.

$4.49

$

Usually ships in 2-12 days

0

19

Simplicity 1921333SM

SCREW, Hex Hd., 5/16-18 x 1,
(Superseded to 703585)

Note: (1692681, 1692746, 1693164, & 1693426). Torque all engine bolts to 19 - 21 ft-lbs.

$4.99

$

Usually ships in 2-12 days

0

19

Simplicity 1922127SM

SCREW, Hex Hd., 5/16-18 x 1-3/4
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

20

Simplicity 1715137C

COVER, Bottom

$

$

Not available

21

Simplicity 1925125SM

WASHER, Flat 15/32

$6.49

$

In Stock, only 2 left!

0

22

Simplicity 1918451SM

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

23

Simplicity 1715112SM

ARM & SHAFT ASSY., Idler

$38.99

$

Usually ships in 2-12 days

0

24

Simplicity 1960268SM

BOLT, Carriage, 3/8-16 X 1-1/4

Note: Use upper square hole on 5 HP and lower square hole on 7 HP.

$4.49

$

In Stock, Qty 9

0

25

Simplicity 2174870SM

SPACER

$45.99

$

Usually ships in 2-12 days

0

26

Simplicity 2118414SM

PULLEY, Idler - Traction Drive

$26.99

$

Usually ships in 2-12 days

0

27

Simplicity 1715118SM

SPRING, Extension

$8.49

$

Usually ships in 2-12 days

0

28

Simplicity 1921971SM

CAPSCREW, Hex Hd., 3/8-16 X 1-3/4
(Superseded to 704289)

Note: (1692680, 1692681, 1692746)

$4.99

$

In Stock, Qty 12

0

29

Simplicity 1922755SM

WASHER, 3/8
(Superseded to 704128)

Note: (Qty 2 on 1692680, 1692681, 1692746)

$4.99

$

In Stock, Qty 9

0

30

Simplicity 1715105SM

ARM & HUB ASSY., Idler/Brake

Note: (1692680, 1692681, 1692746)

$

$

Not available

31

Simplicity 1668477SM

PULLEY, Idler - Auger Drive

$23.99

$

In Stock, Qty 20+

0

32

Simplicity 1931353SM

BOLT, Carriage, 3/8-16 x 1-3/4
(Superseded to 703858)

Note: (1693163, 1693164, 1693425, 1693426, 1693646, & 1693648)

$4.99

$

In Stock, Qty 6

0

33

Simplicity 1717320SM

ARM & HUB ASSY., Idler/Brake

Note: (1693163, 1693164, 1693425, 1693426, 1693646, & 1693648)

$55.99

$

Usually ships in 2-12 days

0

34

Simplicity 1930645SM

NUT, Hex, Flange, Locking, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0
