755 E (1693983) - Simplicity 22" Snow Thrower, 7hp Auger Drive and Impeller Group Parts Diagram

22" Snow Thrower, 7hp

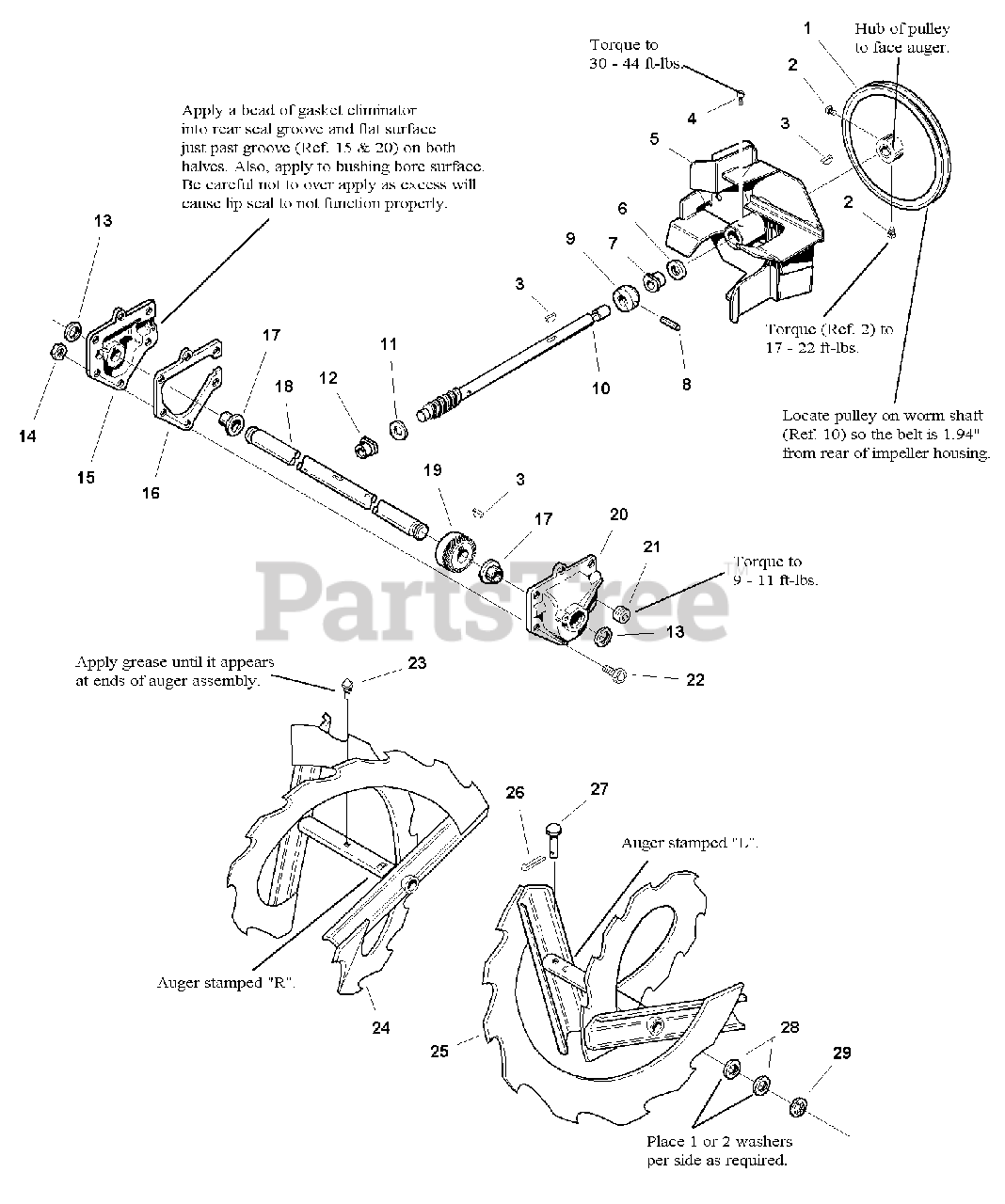

Auger Drive and Impeller Group Parts Diagram

  • Title

1

Simplicity 1715091SM

PULLEY,Auger Drive

$59.99

$

Usually ships in 2-12 days

0

2

Simplicity 1930540SM

SETSCREW, Square Head Cup Point, 3/8-18 x 5/8

$4.49

$

In Stock, Qty 11

0

3

Simplicity 2805123SM

KEY, Woodruff 3/16 x 3/4
(Superseded to 7010211YP)

$3.49

$

In Stock, Qty 18

0

4

Simplicity 1960474SM

SETSCREW, Square Head Cup Point, 3/8-16 x 1/2

$5.99

$

In Stock, Qty 7

0

5

Simplicity 1715120A

IMPELLER
(Superseded to 1715120ASM)

$246.99

$

In Stock, only 1 left!

0

6

Simplicity 1612093SM

SEAL, Oil

$10.99

$

In Stock, Qty 20+

0

7

Simplicity 1666425SM

BUSHING

$20.99

$

In Stock, Qty 20+

0

8

Simplicity 2836098SM

PIN, Drive-Lock 3/16 x 1-1/2

$18.99

$

In Stock, Qty 6

0

9

Simplicity 1721680SM

THRUST COLLAR

$

$

Not available

10

Simplicity 1660655SM

SHAFT, Worm

$164.99

$

Usually ships in 2-12 days

0

11

Simplicity 1670971SM

WASHER, Thrust

$4.49

$

In Stock, Qty 7

0

12

Simplicity 1666424SM

BUSHING

$27.99

$

Usually ships in 2-12 days

0

13

Simplicity 1676027SM

SEAL, Oil

$

$

Not available

14

Simplicity 1923358SM

NUT, Lock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

15

Simplicity 1721684SM

GEAR CASE COVER, R.H.

$68.99

$

Usually ships in 2-12 days

0

16

Simplicity 1721676SM

GASKET

$17.99

$

Usually ships in 2-12 days

0

17

Simplicity 1676026SM

BUSHING

$7.99

$

In Stock, only 2 left!

0

18

Simplicity 1716127SM

SHAFT, Auger

$115.99

$

Usually ships in 2-12 days

0

19

Simplicity 1676024SM

GEAR, Worm

$

$

Not available

20

Simplicity 1721685SM

GEAR CASE COVER, L.H.

$68.99

$

Usually ships in 2-12 days

0

21

Simplicity 2860625SM

PIPE PLUG, 1/8 NPT

$1.99

$

Usually ships in 2-12 days

0

22

Simplicity 1924009SM

CAPSCREW, Hex Hd. 1/4-20 x 7/8
(Superseded to 703819)

$4.49

$

Usually ships in 2-12 days

0

23

Simplicity 2821133SM

GREASE FITTING
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

24

Simplicity 1718781A

AUGER, R.H. 22", Serrated

$

$

Not available

25

Simplicity 1718780A

AUGER, L.H. 22", Serrated

$

$

Not available

26

Simplicity 1918447SM

PIN, Cotter 3/32 x 3/4
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

27

Simplicity 1668344SM

PIN, Shear
(Superseded to 703063)

$4.49

$

In Stock, Qty 20+

0

28

Simplicity 1960114SM

WASHER
(Superseded to 703151)

$3.49

$

In Stock, Qty 20+

0

29

Simplicity 2827794SM

RING, Retaining

$3.49

$

In Stock, Qty 17

0
