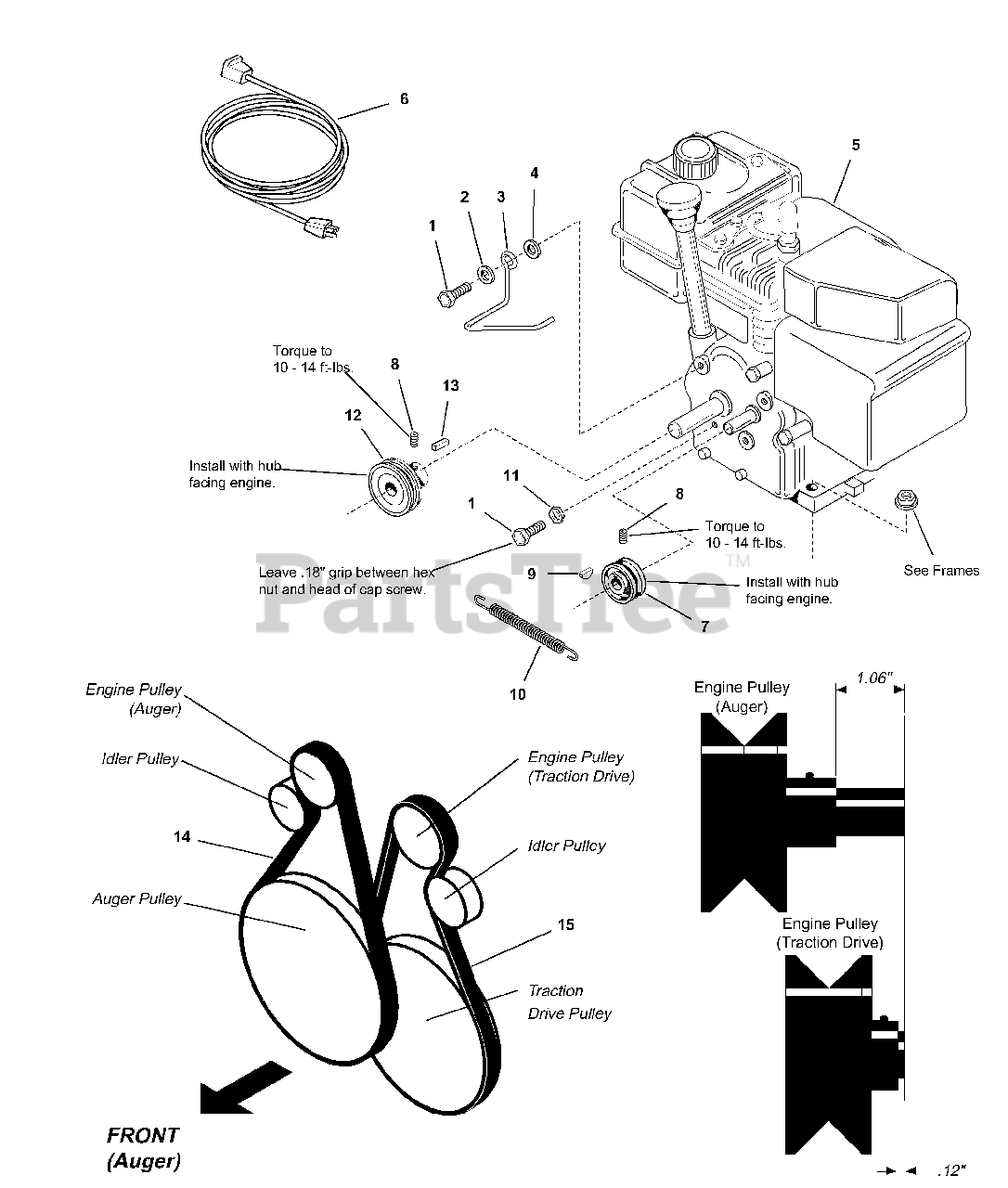

755 E (1693162) - Simplicity 22" Snow Thrower, 7hp Engine Group Parts Diagram

22" Snow Thrower, 7hp

Engine Group Parts Diagram

  • Title

1

Simplicity 1921515SM

CAPSCREW, Hex Hd., 5/16-24 x 3/4

Note: Leave .18" grip between hex nut and head of cap screw.

$3.99

$

Usually ships in 2-12 days

0

2

Simplicity 1919326SM

WASHER,

Note: (Qty. 1 on 1693646 & 1693648)

$4.49

$

In Stock, Qty 9

0

3

Simplicity 1725424SM

BELT STOP

$9.99

$

Usually ships in 2-12 days

0

4

Simplicity 1920427SM

LOCKWASHER-EXTERNAL TOOTH .375

$3.99

$

Usually ships in 2-12 days

0

5

555M 5 HP ENGINE, Tecumseh, manual start,`

Note: (1692680, 1693163, 1693425 & 1693425). See your local Tecumseh Service Center for service parts.

$

$

Not available

5

755M 7 HP ENGINE, Tecumseh, electric start

Note: (1692681 & 1693426). See your local Tecumseh Service Center for service parts.

$

$

Not available

5

755M 7 HP OHV ENGINE, Tecumseh, manual start

Note: (1693648). See your local Tecumseh Service Center for service parts.

$

$

Not available

5

755M 7 HP ENGINE, Tecumseh, manual start

Note: (1692746 & 1693164). See your local Tecumseh Service Center for service parts.

$

$

Not available

6

Simplicity 1724064SM

CORD, Electric Start

$40.99

$

Usually ships in 2-12 days

0

7

Simplicity 1674325SM

PULLEY, Engine - Traction Drive,

Note: (1692680, 1693163, 1693425, 1693646, & 1693648). Install with hub facing engine.

$29.99

$

Usually ships in 2-12 days

0

7

Simplicity 1678692SM

PULLEY, Engine - Traction Drive,

Note: (1692681, 1692746, 1693162, 1693164, & 1693426). Install with hub facing engine.

$56.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960619SM

SCREW, Set, Hex Socket Cup Pt. 5/16-18 x 5/16

Note: Torque to 10 - 14 ft-lbs.

$3.49

$

In Stock, Qty 10

0

9

Simplicity 2824819SM

KEY, Hi-Pro, 1/8x 5/8

$3.49

$

Usually ships in 2-12 days

0

10

Simplicity 1727149SM

SPRING, Extension,
(Superseded to 703146)

Note: (Except 1693646 & 1693648)

$

$

Not available

10

Simplicity 1720237SM

SPRING, Extension,

Note: (1693646 & 1693648)

$7.99

$

Usually ships in 2-12 days

0

11

Simplicity 2820438SM

NUT, Hex, Jam, 5/16-24

$3.49

$

In Stock, only 2 left!

0

12

Simplicity 1720313SM

PULLEY, Engine - Auger Drive,

Note: (Except 1693646 & 1693648). Install with hub facing engine.

$34.99

$

Usually ships in 2-12 days

0

12

Simplicity 1720313SM

PULLEY, Engine - Auger Drive,

Note: (1693646 & 1693648). Install with hub facing engine.

$34.99

$

Usually ships in 2-12 days

0

13

Simplicity 2805850SM

KEY, Parallel, 3/16 x 3/16

$2.49

$

Usually ships in 2-12 days

0

14

Simplicity 1715128SM

V-BELT, 4L, Auger Drive

Note: (1692680, 1692681, 1692746)

$26.99

$

In Stock, Qty 5

0

14

Simplicity 1717393SM

V-BELT, 4L, Auger Drive

Note: (1693162, 1693163, 1693164, 1693425, 1693426, 1693646, & 1693648)

$32.99

$

In Stock, only 4 left!

0

15

Simplicity 1715127SM

V-BELT, 3L Traction Drive,

Note: (1693646, 1692680, 1693163, & 1693425)

$24.99

$

Usually ships in 2-12 days

0

15

Simplicity 1715591SM

V-BELT, 3L Traction Drive

Note: (1692681, 1692746, 1693164, & 1693426)

$24.99

$

In Stock, only 4 left!

0

15

Simplicity 1720234SM

V-BELT, 3L Traction Drive

Note: (1693648)

$24.99

$

Usually ships in 2-12 days

0
