755 E (1691181) - Simplicity 22" Snow Thrower, 7hp Auger Housing & Chute Group Parts Diagram

22" Snow Thrower, 7hp

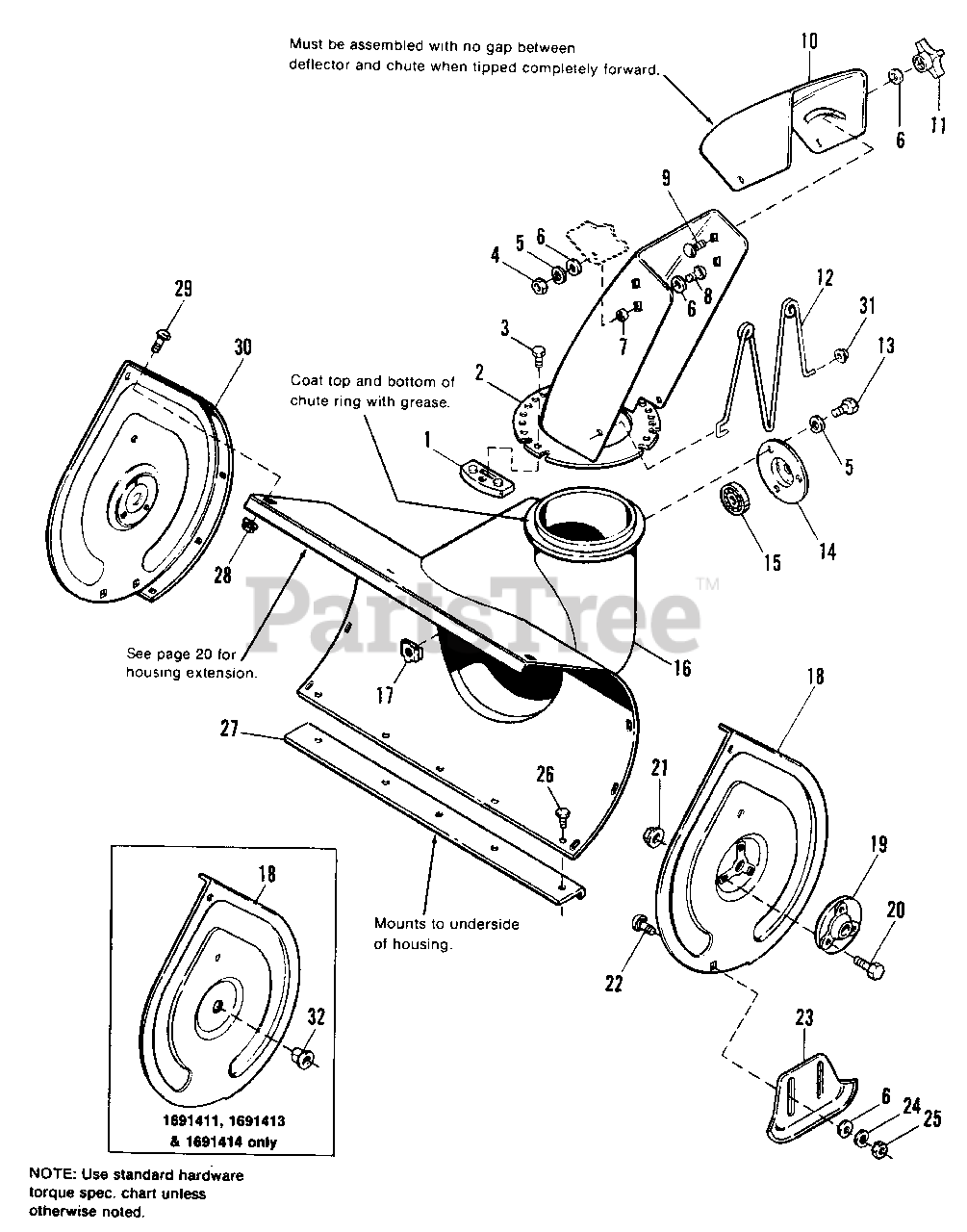

Auger Housing & Chute Group Parts Diagram

  • Title

1

Simplicity 1666613SM

HOLD DOWN, Chute

$3.49

$

In Stock, Qty 20+

0

2

Simplicity 1676224SM

CHUTE ASSY.

$

$

Not available

3

Simplicity 1960001SM

SCREW, Plastite, #10
(Superseded to 703062)

$4.49

$

Usually ships in 2-12 days

0

4

Simplicity 1917372SM

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

5

Simplicity 1917356SM

LOCKWASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

6

Simplicity 1919326SM

WASHER, 5/16

$4.49

$

In Stock, Qty 6

0

7

Simplicity 1667790SM

SPACER

$13.99

$

Usually ships in 2-12 days

0

8

Simplicity 1936482SM

SCREW, Phil. Hd., 5/16-18 x 3/4

$2.99

$

Usually ships in 2-12 days

0

9

Simplicity 1931334SM

BOLT, Carriage, 5/16-18 x 7/8, Gr. 5
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

10

Simplicity 1676379SM

DEFLECTOR

$

$

Not available

11

Simplicity 1670578SM

KNOB

$13.99

$

Usually ships in 2-12 days

0

12

Simplicity 1678954SM

GUARD, Chute

$94.99

$

Usually ships in 2-12 days

0

13

Simplicity 1925205SM

SCREW, Hex, 5/16-18 x 5/8
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

14

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 17

0

15

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

16

Simplicity 1611798

AUGER HSG. ASSY.

$

$

Not available

17

Simplicity 2830659

NUT, Retainer, 5/16-18

$

$

Not available

18

Simplicity 1676411

AUGER HSG. END, L.H. (1691011, 1691181 only)

$

$

Not available

18

Simplicity 1611746SM

AUGER HSG. ENG, L.H. (1691411, 1691413, 1691414 only)

$13.99

$

Usually ships in 2-12 days

0

19

Simplicity 1674280SM

BEARING, Auger (1691011, 1691181 only)

$

$

Not available

20

Simplicity 1930591SM

SCREW, Hex, Whizlock, 5/16-18 x 3/4 (1691011, 1691181 only)
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

21

Simplicity 1935048SM

NUT, Hex., Fl. Hd. Lock, 5/16-18 (1691011, 1691181 only)
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

22

Simplicity 1931348SM

BOLT, Carriage, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

23

Simplicity 2177434C

SKID

$

$

Not available

24

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 15

0

25

Simplicity 2816950SM

NUT Hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 7

0

26

Simplicity 2827428

SCREW, Taptite, 1/4-20 x 3/8

$

$

Not available

27

Simplicity 1675080A

SCRAPER BLADE
(Superseded to 7600017SM)

$70.99

$

In Stock, Qty 7

0

28

Simplicity 19306410

NUT, Hex, 1/4-20 Wd. Fl. Lock

$

$

Not available

29

Simplicity 19313150

BOLT, Carriage, 1/4-20 x 1/2

$

$

Not available

30

Simplicity 1676412

AUGER HSG. END, R.H. (1691011, 1691181 only)

$

$

Not available

31

Simplicity 1960140SM

NUT, Push

$3.49

$

Usually ships in 2-12 days

0

32

Simplicity 1666001SM

BUSHING (1691411, 1691413, 1691414 only)

$6.99

$

In Stock, Qty 9

0
