7532 (54AN44G-710) - Cub Cadet Compact Tractor Transmission (Part 5) Parts Diagram

Compact Tractor

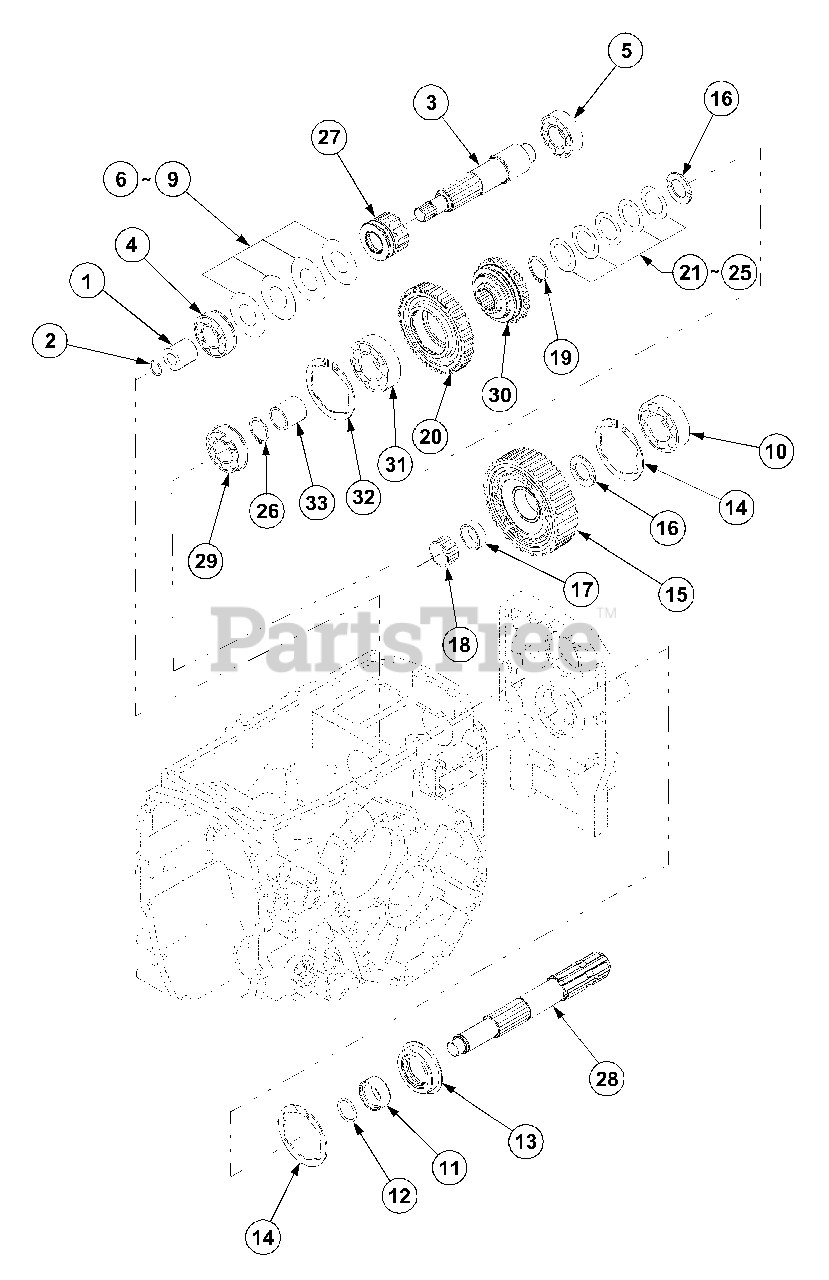

Transmission (Part 5) Parts Diagram

  • Title

1

Cub Cadet MA-19571216000

Boss,Spline

$

$

Not available

2

Cub Cadet MA-10311363001

Ring

$

$

Not available

3

Cub Cadet MA-19571247000

Shaft,PTO Drive

$

$

Not available

4

Cub Cadet MA-07500063045

Bearing,Ball

$

$

Not available

5

Cub Cadet MA-07520663050

Bearing,Ball

$

$

Not available

Cub Cadet MA-19571261000

Liner Set

Note: Includes 6-9

$

$

Not available

6

Cub Cadet MA-07310002001

Liner

$

$

Not available

7

Cub Cadet MA-07310002002

Liner

$

$

Not available

8

Cub Cadet MA-07310002004

Liner

$

$

Not available

9

Cub Cadet MA-07310102010

Liner

$

$

Not available

10

Cub Cadet MA-07500062060

Bearing,Ball

$

$

Not available

11

Cub Cadet MA-10251405000

Bushing

$

$

Not available

12

Cub Cadet MA-08300100300

O-Ring

$

$

Not available

13

Cub Cadet MA-10211314000

Seal,Oil
(Superseded to MA-08412406213)

$28.99

$

Usually ships in 3-6 days

0

14

Cub Cadet MA-07410106201

C-Ring

$

$

Currently unavailable

15

Cub Cadet MA-19571252000

Gear 44T

$

$

Not available

16

Cub Cadet MA-10411237000

Liner

$

$

Not available

17

Cub Cadet MA-35596104100

Sleeve

$

$

Not available

18

Cub Cadet MA-07802354220

Bearing,Needle

$

$

Not available

19

Cub Cadet MA-07400103000

C-Ring
(Superseded to MA-07400003000)

$

$

Not available

20

Cub Cadet MA-19571249000

Gear 46T

$

$

Not available

Cub Cadet MA-10190625000

Liner Set

Note: Includes 21-25

$

$

Not available

21

Cub Cadet MA-07310003001

Liner

$

$

Not available

22

Cub Cadet MA-07310003002

Liner

$

$

Not available

23

Cub Cadet MA-07310003004

Liner

$

$

Not available

24

Cub Cadet MA-07310003008

Liner

$

$

Not available

25

Cub Cadet MA-07310103010

Liner

$

$

Currently unavailable

26

Cub Cadet MA-07400102500

C-Ring
(Superseded to MA-07400002500)

$

$

Not available

27

Cub Cadet MA-19571248000

Gear 19T

$

$

Not available

28

Cub Cadet MA-19571254000

Shaft,PTO

$

$

Not available

29

Cub Cadet MA-07500063045

Bearing,Ball

$

$

Not available

30

Cub Cadet MA-19571257000

Gear 33T

$

$

Not available

31

Cub Cadet MA-07520663050

Bearing,Ball

$

$

Not available

32

Cub Cadet MA-07410106201

C-Ring

$

$

Currently unavailable

33

Cub Cadet MA-19571253000

Collar

$

$

Not available
