7532 (54AN44G-710) - Cub Cadet Compact Tractor Oil Pan & Gear Case Parts Diagram

Compact Tractor

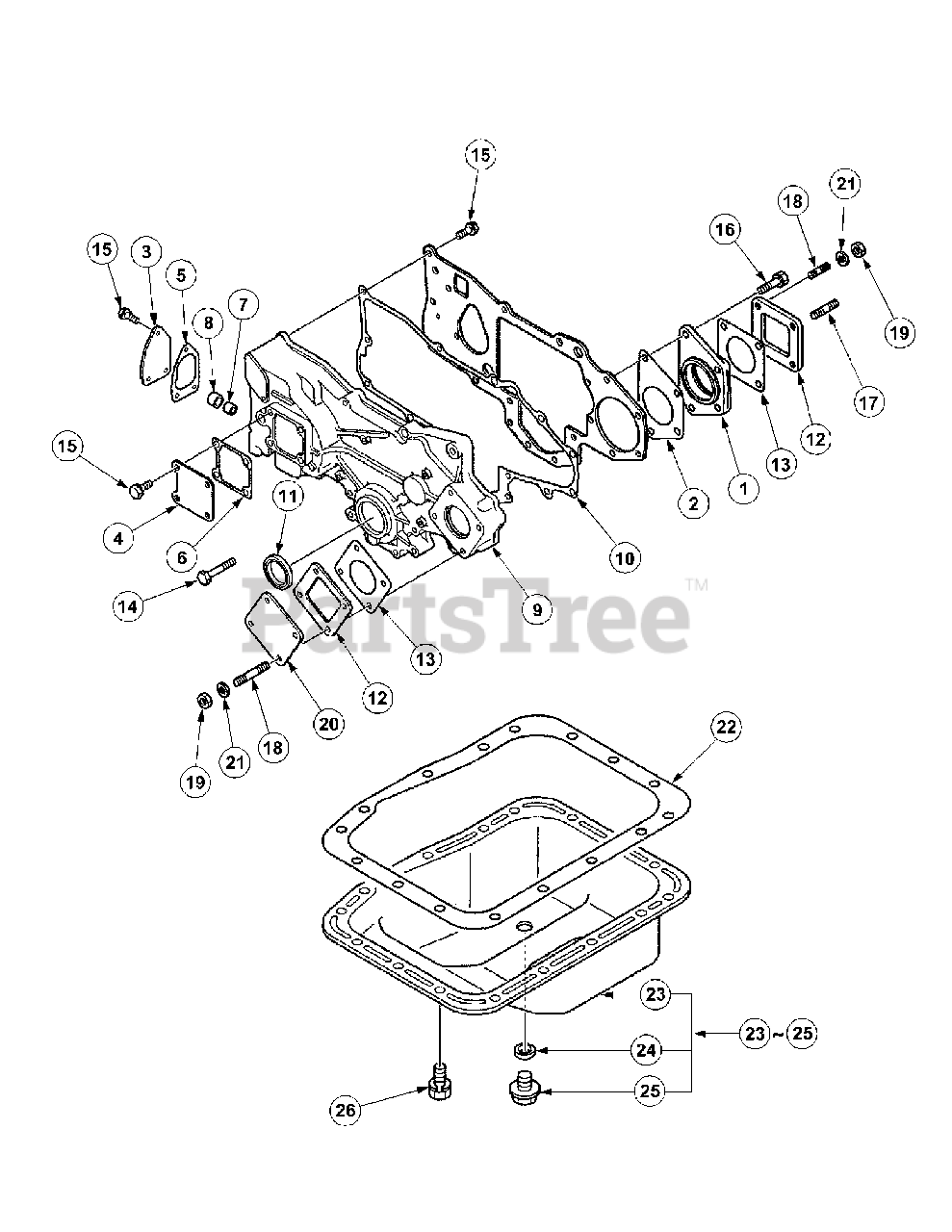

Oil Pan & Gear Case Parts Diagram

  • Title

1

Cub Cadet MA-30H11-00301

Housing,Gear
(Superseded to MA-30H11-00401)

$

$

Not available

2

Cub Cadet MA-30H11-00101

Gasket,Housing

$21.99

$

In Stock, only 1 left!

0

3

Cub Cadet MA-MM408233

Cover,Governor

$

$

Not available

4

Cub Cadet MA-30H11-03201

Cover,Gear Case

$

$

Not available

5

Cub Cadet MA-30A11-00301

Gasket,Governor
(Superseded to MA-30A11-00300)

$

$

Not available

6

Cub Cadet MA-30H11-03300

Gasket,Gear

$

$

Not available

7

Cub Cadet MA-MM406420

Bearing,Needle

$

$

Not available

8

Cub Cadet MA-MM406421

Bearing,Needle

$

$

Not available

9

Case,Gear

$

$

Not available

10

Cub Cadet MA-30H11-03100

Gasket,Gear

$

$

Not available

11

Cub Cadet MA-30A11-00800

Seal,Front Oil

$

$

Not available

12

Cub Cadet MA-K7910451

Cover,Oil Pump

$

$

Not available

13

Cub Cadet MA-30A11-00101

Gasket

$

$

Not available

14

Cub Cadet MA-MF100064

Bolt

$

$

Not available

15

Cub Cadet MA-MF240051

Bolt,w/Washer

$

$

Not available

16

Cub Cadet MA-MF241255

Bolt,w/Washer

$

$

Not available

17

Cub Cadet MA-MS401434

Stud

$

$

Not available

18

Cub Cadet MA-MS401426

Stud

$

$

Not available

19

Cub Cadet MA-MF430005

Nut

$

$

Not available

20

Cub Cadet MA-MM401205

Cover,Oil Pump
(Superseded to MA-MM398237)

$

$

Not available

21

Cub Cadet MA-MF450405

Washer,Spring

$

$

Not available

22

Cub Cadet MA-30H13-00101

Gasket,Oil

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet MA-MM435538

Pan Assy,Oil

Note: Includes 23-25

$

$

Not available

23

Pan Sub Assy

$

$

Not available

24

Cub Cadet MA-MD000312

Gasket,Oil

$

$

Not available

25

Cub Cadet MA-MD000318

Plug,Oil

$

$

Not available

26

Cub Cadet MA-MF240051

Bolt,w/Washer

$

$

Not available
