7532 (54AN44G-710) - Cub Cadet Compact Tractor Electrical System (Part 3) Parts Diagram

Compact Tractor

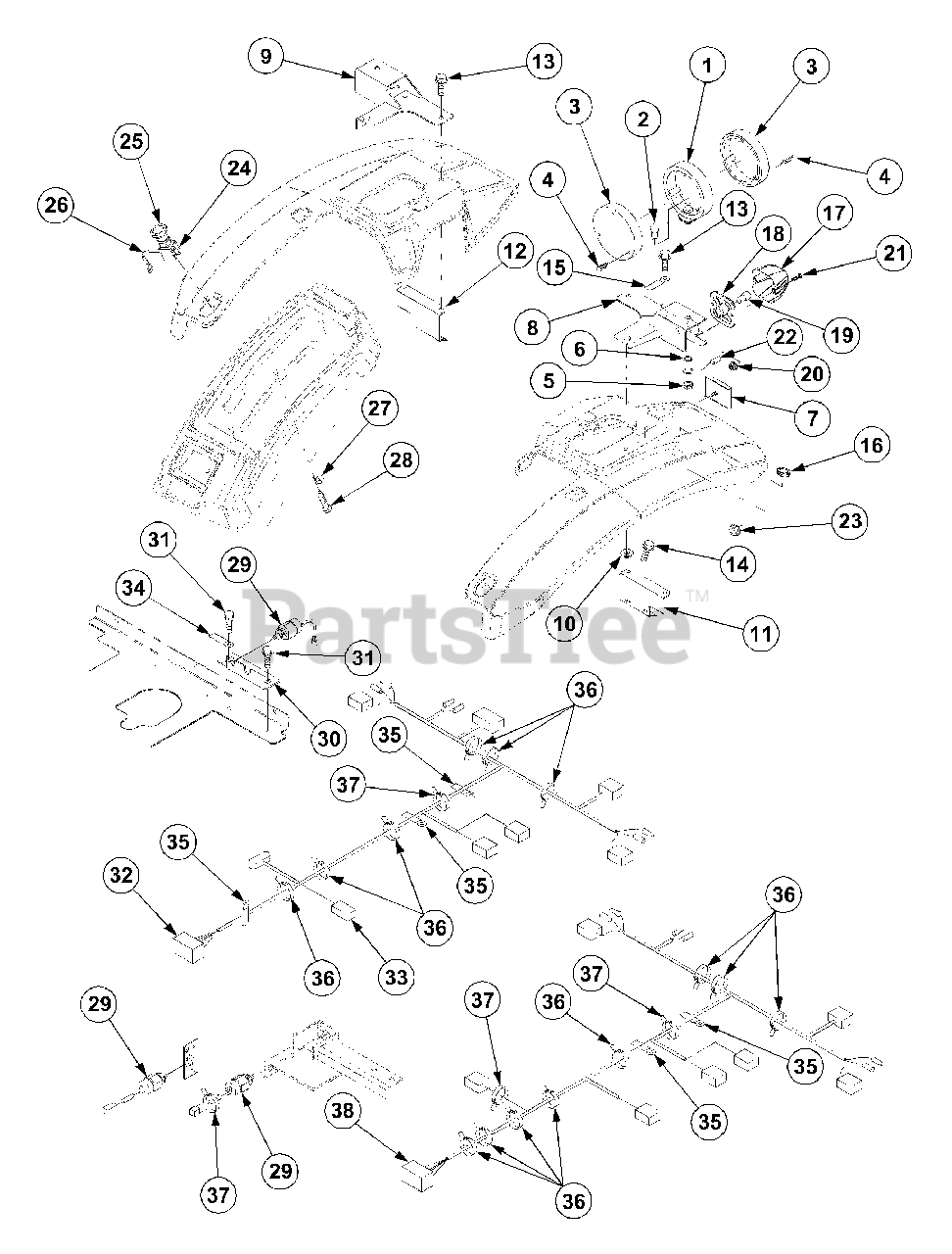

Electrical System (Part 3) Parts Diagram

  • Title

Cub Cadet MA-19672942000

Lamp,Signal

Note: Includes 1-6

$

$

Not available

1

Cub Cadet MA-19672942100

Body Assy

$

$

Currently unavailable

2

Cub Cadet MA-10356281200

Bulb
(Superseded to MA-35550901300)

$

$

Not available

3

Cub Cadet MA-19672942200

Lens

$

$

Not available

4

Cub Cadet MA-04322104025

Screw,Tapping

$

$

Not available

5

Cub Cadet MA-A3030112003

Nut

$

$

Not available

6

Cub Cadet MA-03700112000

Washer,Tooth

$

$

Not available

7

Cub Cadet MA-19672943000

Lead Wire

$

$

Not available

8

Cub Cadet MA-19572906BD0

Bracket L

$

$

Not available

9

Cub Cadet MA-19572907BD0

Bracket R

$

$

Not available

10

Cub Cadet MA-F3000106000

Nut,Flange

$

$

Not available

11

Cub Cadet MA-19572908000

Bracket L

$

$

Not available

12

Cub Cadet MA-19572909000

Bracket R

$

$

Not available

13

Cub Cadet MA-H1440106020

Bolt,w/Washer

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet MA-H1440106012

Bolt,w/Washer

$3.49

$

In Stock, only 1 left!

0

15

Cub Cadet MA-00502110083

Clamp

$

$

Not available

16

Cub Cadet MA-10366169000

Grommet

$

$

Not available

Cub Cadet MA-19615008000

Lamp,Tail

Note: Includes 17-21

$

$

Not available

17

Cub Cadet MA-19615008100

Lens
(Superseded to MA-19615008000)

$

$

Not available

18

Cub Cadet MA-19615008200

Holder

$

$

Currently unavailable

19

Cub Cadet MA-09808121001

Bulb

$

$

Not available

20

Cub Cadet MA-F3000105001

Nut,Flange

$

$

Not available

21

Cub Cadet MA-A2420105020

Screw

$

$

Not available

22

Cub Cadet MA-10192279000

Reflector

$

$

Not available

23

Cub Cadet MA-F3000106000

Nut,Flange

$

$

Not available

Cub Cadet MA-19572916000

Switch,Ind

Note: Includes 24-26

$

$

Currently unavailable

24

Cub Cadet MA-10412833100

Switch Assy

$

$

Not available

25

Cub Cadet MA-10412833200

Knob Assy

$

$

Currently unavailable

26

Cub Cadet MA-19572916300

Lead Wire

$

$

Not available

27

Cub Cadet MA-10442993000

Clip

$

$

Not available

28

Cub Cadet MA-04322104010

Screw,Tapping

$

$

Not available

29

Cub Cadet MA-10402821000

Switch,Safety

$

$

Not available

30

Cub Cadet MA-19572913AG0

Plate

$

$

Not available

31

Cub Cadet MA-H1740108020

Bolt,w/Washer

$

$

Not available

32

Cub Cadet MA-19572956000

Harness B

Note: (Includes Ref.No.33)

$

$

Not available

33

Cub Cadet MA-35770855200

Diode

$

$

Not available

34

Cub Cadet MA-00502110083

Clamp

$

$

Not available

35

Cub Cadet MA-00502114103

Clamp

$

$

Not available

36

Cub Cadet MA-00511032070

Band,Wire

$

$

Not available

37

Cub Cadet MA-00511070070

Band,Wire

$

$

Not available

38

Cub Cadet MA-19572957000

Harness B

$

$

Not available
