7532 (54AN44G-710) - Cub Cadet Compact Tractor Electrical System (Part 1) Parts Diagram

Compact Tractor

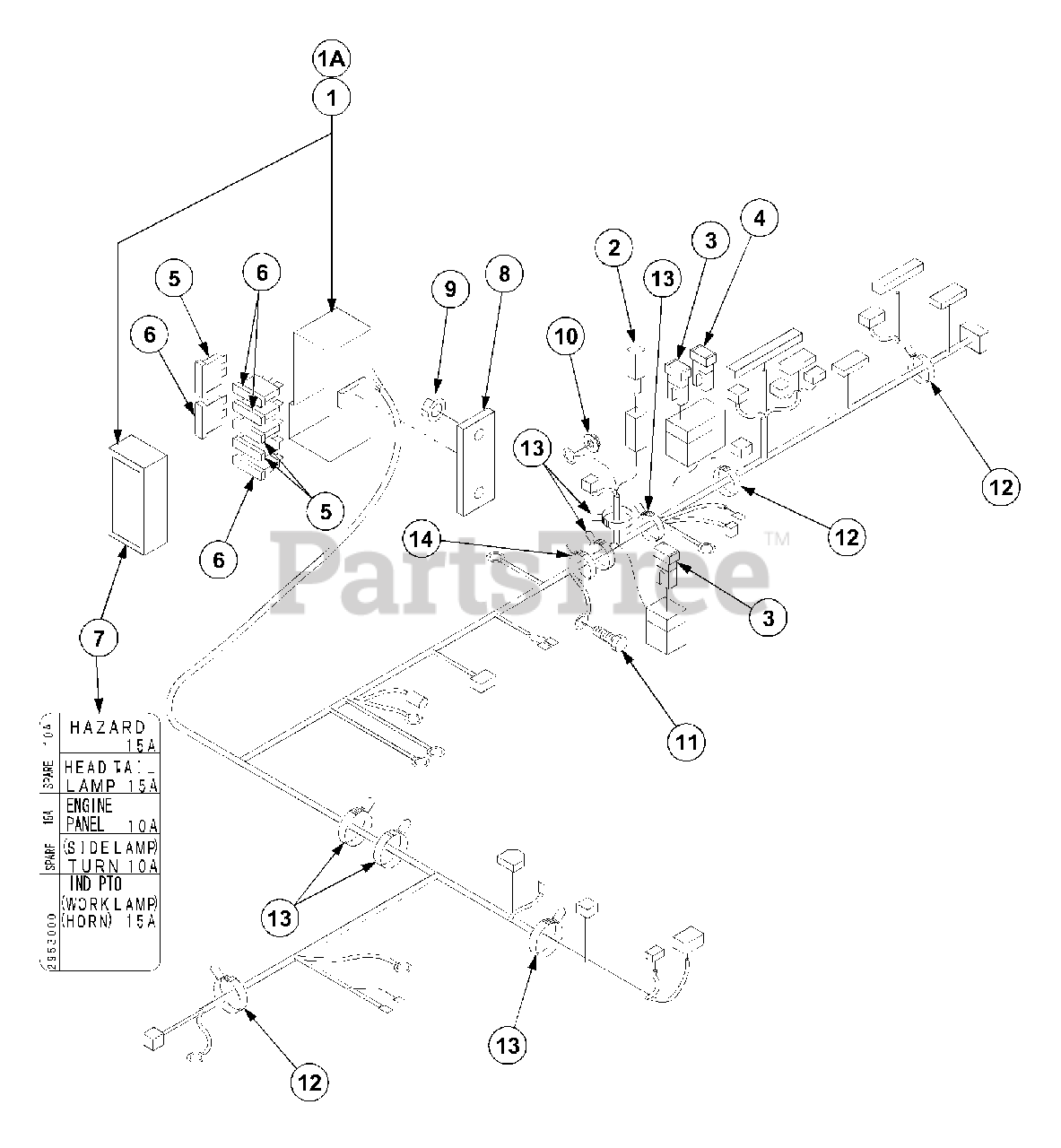

Electrical System (Part 1) Parts Diagram

  • Title

1

Harness Wire

Note: (Includes Ref.no.2-6); Not used on this model.

$

$

Not available

1A

Cub Cadet MA-19572954000

Harness Wire

Note: (Includes Ref.no.2-6)

$

$

Not available

2

Cub Cadet MA-35770855200

Diode

$

$

Not available

3

Cub Cadet MA-10375581200

Fuse

$

$

Not available

4

Cub Cadet MA-10382815200

Fuse

$

$

Not available

5

Cub Cadet MA-09801001006

Fuse

$

$

Not available

6

Cub Cadet MA-09801001506

Fuse

$

$

Not available

7

Cub Cadet MA-19572953000

Mark Fuse

$

$

Not available

8

Cub Cadet MA-10442812000

Fuse Holder

$

$

Not available

9

Cub Cadet MA-A3000106002

Nut

$

$

Not available

10

Cub Cadet MA-F3000106000

Nut,flange

$

$

Not available

11

Cub Cadet MA-HA121403000

Bolt

$

$

Not available

12

Cub Cadet MA-00511032070

Band,wire

$

$

Not available

13

Cub Cadet MA-00511070070

Band,wire

$

$

Not available

14

Cub Cadet MA-00511070070

Band,wire

$

$

Not available
