7532 (54AN44G-710) - Cub Cadet Compact Tractor Bonnet (Part 2) Parts Diagram

Compact Tractor

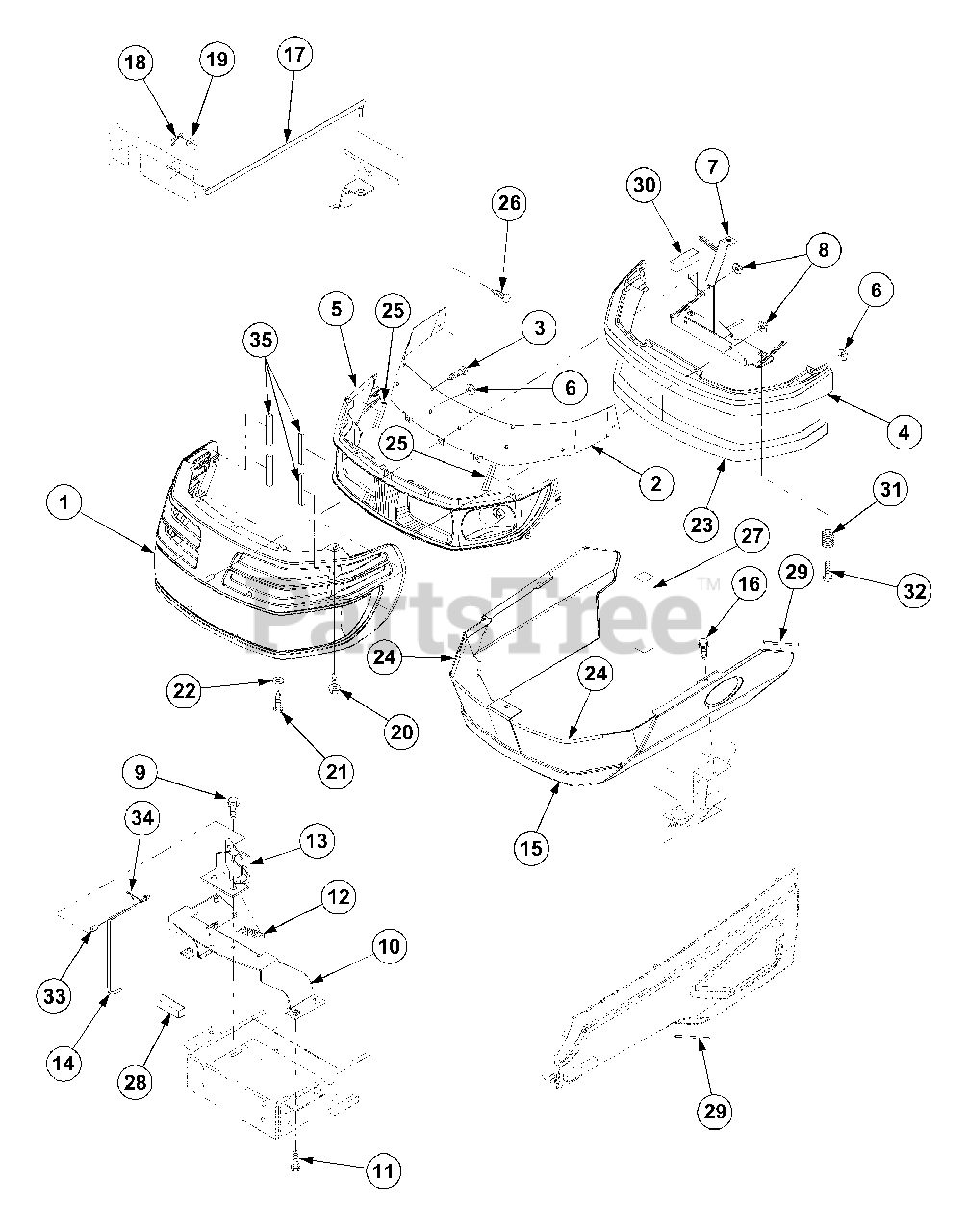

Bonnet (Part 2) Parts Diagram

  • Title

1

Cub Cadet MA-19562611000

Grill

$

$

Not available

2

Cub Cadet MA-19562612AG0

Screen B

$194.99

$

In Stock, only 1 left!

0

3

Cub Cadet MA-04322105012

Screw,Tapping

$

$

Not available

4

Cub Cadet MA-19572615000

Cover,Front

$

$

Not available

5

Cub Cadet MA-19562616000

Reflector

$

$

Not available

6

Cub Cadet MA-F3000106001

Nut,Flange

$2.49

$

In Stock, only 2 left!

0

7

Cub Cadet MA-19572637000

Bracket
(Superseded to MA-19572637ZB0)

$

$

Not available

8

Cub Cadet MA-F3000106001

Nut,Flange

$2.49

$

In Stock, only 2 left!

0

9

Cub Cadet MA-H1540108016

Bolt,w/Washer

$

$

Not available

10

Cub Cadet MA-19572636AG0

Stay,Bonnet

$

$

Not available

11

Cub Cadet MA-F1540108020

Bolt,w/Washer

$

$

Not available

12

Cub Cadet MA-19740722000

Spring

$

$

Not available

13

Cub Cadet MA-10382636000

Bracket
(Superseded to MA-10382636001)

$62.99

$

Usually ships in 3-6 days

0

14

Cub Cadet MA-19572638000

Lever

$

$

Not available

15

Cub Cadet MA-19562641BC0

Cover,Under

$614.99

$

Usually ships in 3-6 days

0

16

Cub Cadet MA-H1440106016

Bolt,w/Washer

$3.49

$

Usually ships in 3-6 days

0

17

Cub Cadet MA-19562659000

Rod

$

$

Not available

18

Cub Cadet MA-05200125016

Pin,Split
(Superseded to MA-05200125015)

$

$

Not available

19

Cub Cadet MA-03500160826

Washer

$

$

Not available

20

Cub Cadet MA-H1540108016

Bolt,w/Washer

$

$

Not available

21

Cub Cadet MA-04322106012

Screw,Tapping

$

$

Not available

22

Cub Cadet MA-03500130613

Washer

$

$

Not available

23

Cub Cadet MA-19562682000

Cushion

$

$

Not available

24

Cub Cadet MA-27553236000

Rubber,Cushion

$

$

Not available

25

Cub Cadet MA-19562687000

Cushion

$

$

Not available

26

Cub Cadet MA-19562685001

Screw

$

$

Not available

27

Cub Cadet MA-19572625000

Cushion

$

$

Not available

28

Cub Cadet MA-19572626000

Cushion

$

$

Not available

29

Cub Cadet MA-35323804200

Rubber

$

$

Not available

30

Cub Cadet MA-10410441000

Cushion

$

$

Not available

31

Cub Cadet MA-10402624001

Spring

$

$

Not available

32

Cub Cadet MA-F0500106016

Bolt,Flange

$

$

Currently unavailable

33

Cub Cadet MA-27935289000

Collar

$

$

Not available

34

Cub Cadet MA-05200125016

Pin,Split
(Superseded to MA-05200125015)

$

$

Not available

35

Cub Cadet MA-19562684000

Cushion

$

$

Not available
