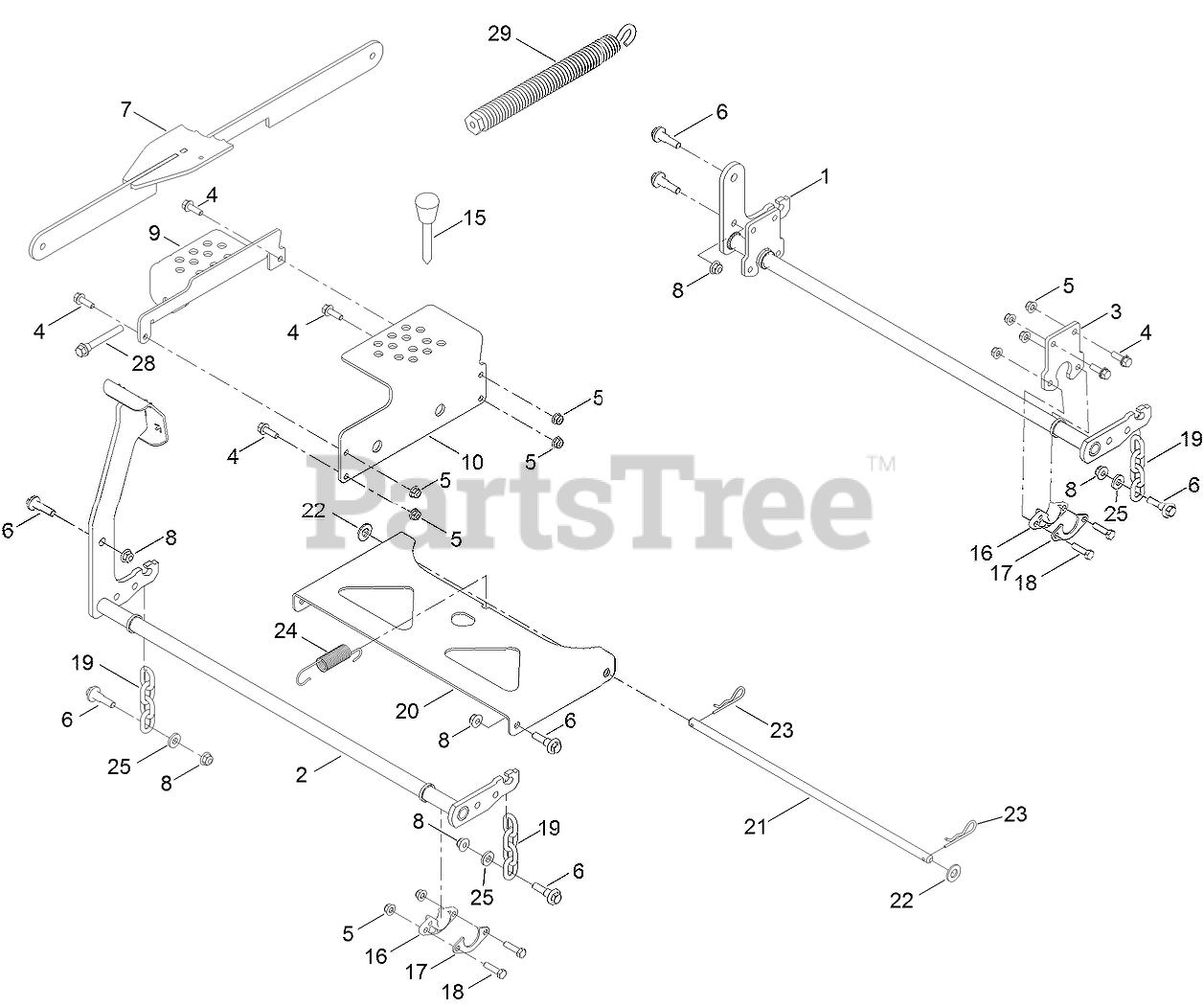

75318 TA (MR 6000) - Toro 60" Titan Zero-Turn Mower (SN: 413000000 - 999999999) Deck Lift Assembly Parts Diagram

60" Titan Zero-Turn Mower

Deck Lift Assembly Parts Diagram

  • Title

1

Toro 137-2020-03

PIVOT-REAR

$75.99

$

Usually ships in 3-6 days

0

2

Toro 133-4430-03

PIVOT-FRONT

$111.99

$

Usually ships in 3-6 days

0

3

Toro 137-2021-03

PLATE

$7.99

$

Usually ships in 3-6 days

0

4

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

5

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

6

Toro 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 20+

0

7

Toro 139-3553-03

LIFT LINK ASM

$68.99

$

Usually ships in 3-6 days

0

8

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 139-3557-03

PLATE-HOC, LOWER

$43.99

$

Usually ships in 3-6 days

0

10

Toro 139-3556-03

PLATE-HOC, UPPER

$45.99

$

Usually ships in 3-6 days

0

15

Toro 140-2146

HOC PIN ASM

$17.99

$

Usually ships in 3-6 days

0

16

Toro 139-5872

BEARING-FLANGE

$1.99

$

Usually ships in 3-6 days

0

17

Toro 138-7204

GUSSET-DECK LIFT

$2.99

$

In Stock, only 3 left!

0

18

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

19

Toro 138-7205

CHAIN-DECKLIFT, 4-LINK

$7.99

$

Usually ships in 3-6 days

0

20

Toro 133-4311-01

PAN-PIVOT, DECK

$59.99

$

In Stock, only 1 left!

0

21

Toro 133-7071

ROD-PIVOT, DECK

$18.99

$

Usually ships in 3-6 days

0

22

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

24

Toro 138-7206

SPRING-EXTENSION

$6.49

$

Usually ships in 3-6 days

0

25

Toro 138-7207

SPACER-HUB, BLOWER

$1.49

$

In Stock, Qty 9

0

28

Toro 92-7674

BOLT-SHOULDER

$2.99

$

Usually ships in 3-6 days

0

29

Toro 116-0886

SPRING-EXTENSION

$136.99

$

Usually ships in 3-6 days

0
