Toro 75317 TA (MR 5400) - Toro 54" Titan Zero-Turn Mower (SN: 411460000 - 411999999) 54 Inch Deck Assembly Parts Lookup with Diagrams

1

Toro 140-0353

54in DECK ASM

$1550.99

$

Usually ships in 3-6 days

1:2

Toro 130-0731

DECAL-DANGER

$3.99

$

Usually ships in 3-6 days

1:3

Toro 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, Qty 12

1:4

Toro 130-0765

DECAL-SCALP, ANTI

$2.99

$

Usually ships in 3-6 days

1:5

Toro 117-1194

DECAL-ROUTING, BELT

$10.99

$

Usually ships in 3-6 days

6

Toro 133-9283

COVER-BELT, RH

$19.99

$

In Stock, only 1 left!

7

Toro 133-9282

COVER-BELT, LH

$22.99

$

Usually ships in 3-6 days

8

Toro 139-2357

SPINDLE ASM

$102.99

$

In Stock, only 2 left!

8:2

Toro 116-0720

BEARING-BALL

$22.99

$

In Stock, Qty 20+

8:3

Toro 138-7220

SPACER-BEARING

$7.99

$

In Stock, only 2 left!

9

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

10

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

11

Toro 115-2642

SHAFT-SPINDLE

$52.99

$

In Stock, only 2 left!

12

Toro 138-7221

SHIELD-BEARING

$5.49

$

Usually ships in 3-6 days

13

Toro 139-7455

PULLEY

$22.99

$

In Stock, only 1 left!

14

Toro 7-4150

WASHER

$1.49

$

In Stock, Qty 20+

15

Toro 3219-7

NUT-HEX

$1.99

$

In Stock, Qty 9

16

Toro 115-9650-03

BLADE-HI FLO

$27.99

$

In Stock, only 3 left!

17

Toro 125-1736

WASHER-BELLEVILLE

$4.49

$

In Stock, only 3 left!

18

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 14

19

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

20

Toro 138-7225

SPACER

$5.49

$

Usually ships in 3-6 days

21

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 11

22

Toro 138-7226

IDLER ARM ASM

$47.99

$

Usually ships in 3-6 days

23

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

24

Toro 138-7227

BUSHING-IDLER

$2.99

$

In Stock, Qty 20+

25

Toro 132-4718

PULLEY-IDLER, FLAT

$33.99

$

In Stock, Qty 16

26

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

27

Toro 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

28

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

29

Toro 138-7228

SPRING-EXTENSION

$5.49

$

In Stock, Qty 5

30

Toro 115-9653-03

BAFFLE-CUTOFF

$25.99

$

Usually ships in 3-6 days

31

Toro 3230-22

SCREW-CARR

$2.49

$

In Stock, only 2 left!

32

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

37

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

38

Toro 138-7229

TUBE-SPANNER

$6.49

$

In Stock, only 4 left!

39

Toro 104-0892

SPACER-AXLE, REAR

$5.49

$

Usually ships in 3-6 days

40

Toro 323-23

SCREW-HH

$5.49

$

In Stock, Qty 16

41

Toro 133-7076

V-BELT

$140.99

$

In Stock, only 1 left!

42

Toro 139-3255

DECAL-DECK

$9.99

$

Usually ships in 3-6 days

43

Toro 138-7230

SPACER-FENDER

$5.49

$

Usually ships in 3-6 days

44

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

45

Toro 117-1270

DEFLECTOR

$78.99

$

In Stock, only 1 left!

46

Toro 138-7231

PIN-CHUTE

$9.49

$

Usually ships in 3-6 days

47

Toro 138-7232

SPRING-TORSION

$2.99

$

In Stock, only 2 left!

48

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 13

65

Toro 136-5615

GUIDE-BELT, IDLER

$6.49

$

In Stock, only 1 left!

66

Toro 126-4781-03

STEP-DECK

$26.99

$

Usually ships in 3-6 days

67

Toro 139-1702

BOLT-CARRIAGE

$1.49

$

In Stock, only 2 left!

68

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

69

Toro 114-1648-03

BRACKET-DEFLECTOR, UPPER

$60.99

$

Usually ships in 3-6 days

70

Toro 115-5048-03

PLATE-DEFLECTOR

$44.99

$

Usually ships in 3-6 days

71

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

72

Toro 3256-68

WASHER-FLAT

$2.99

$

In Stock, only 4 left!

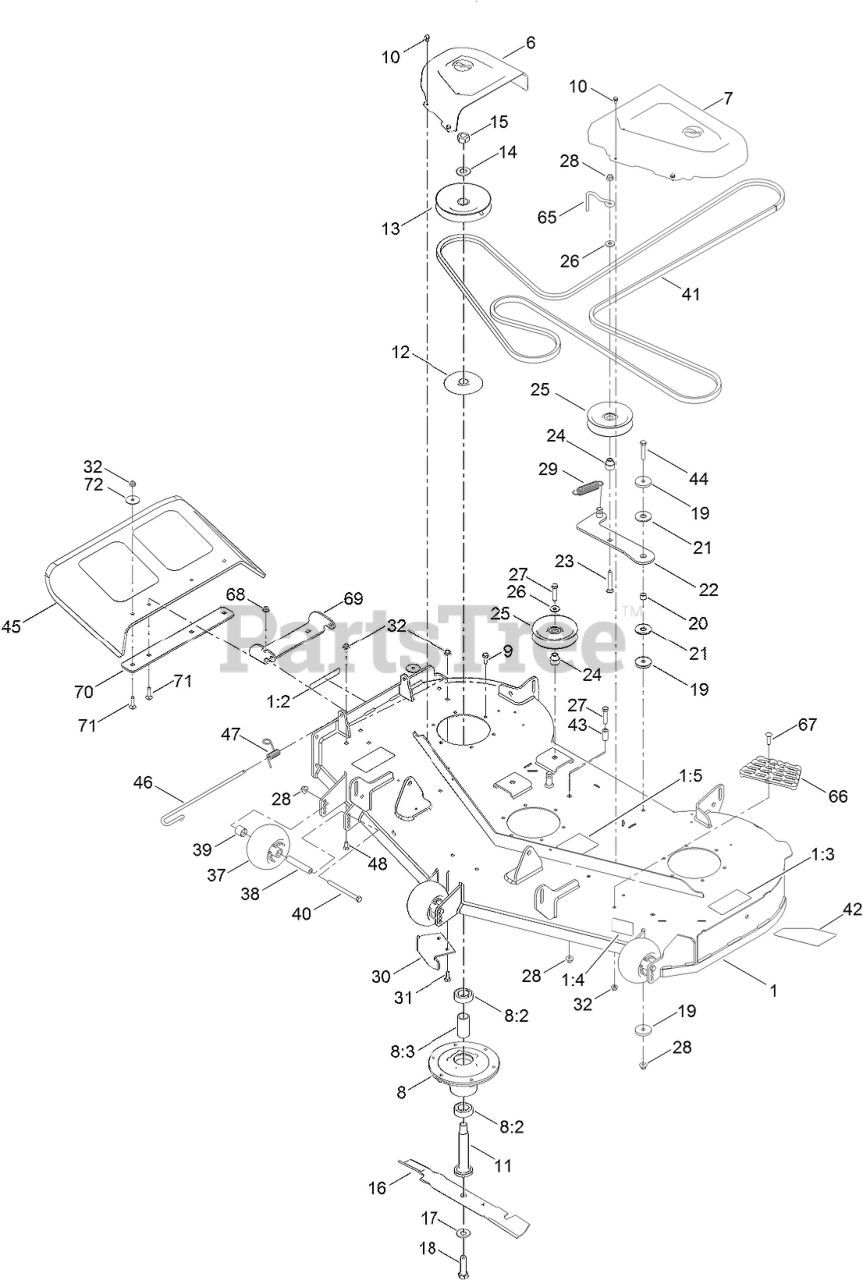

75317 TA (MR 5400) - Toro 54" Titan Zero-Turn Mower (SN: 411460000 - 411999999) 54 Inch Deck Assembly Parts Diagram

54 Inch Deck Assembly Parts Diagram
