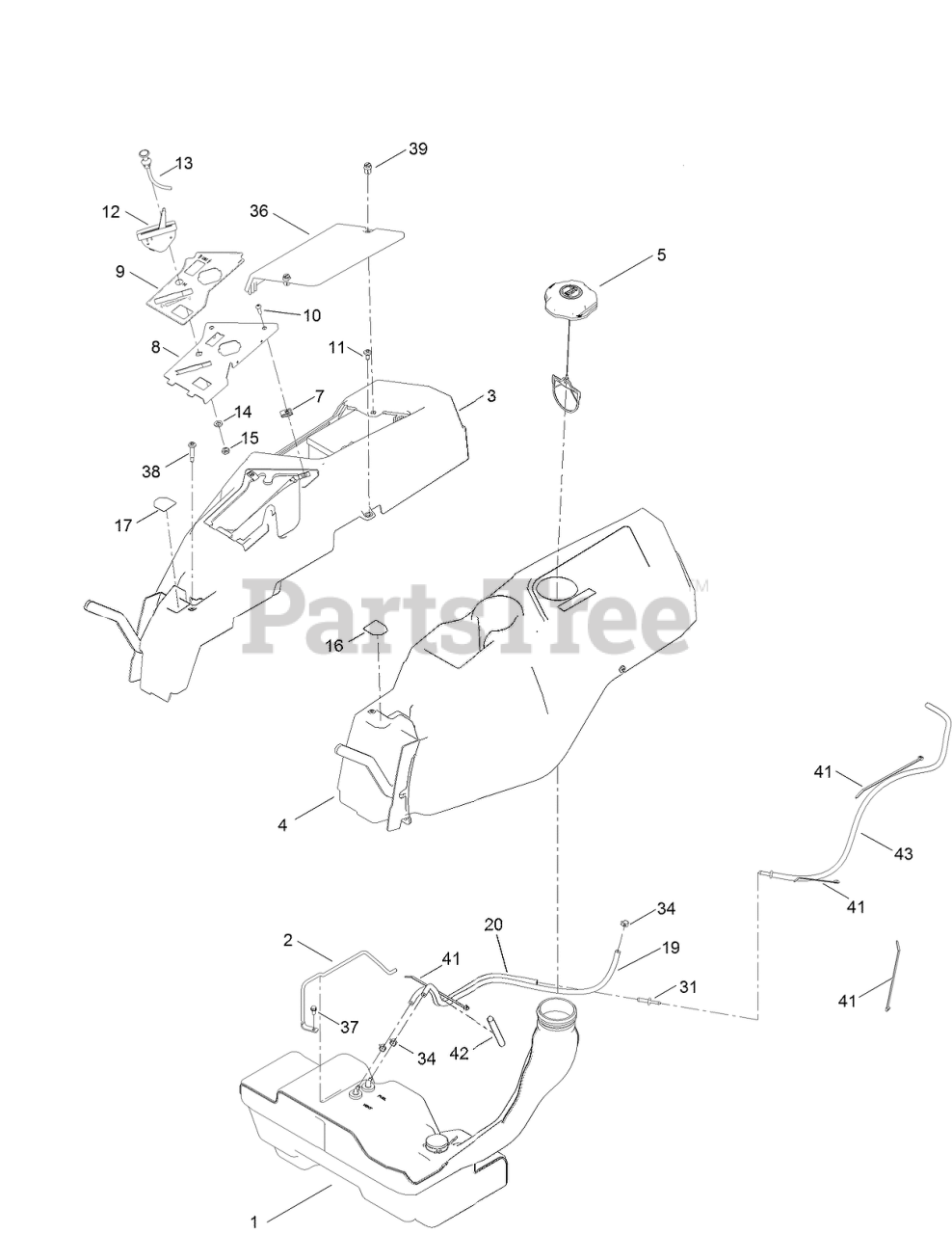

75317 TA (MR 5400) - Toro 54" Titan Zero-Turn Mower (SN: 400000000 - 409329999) Body Styling and Fuel Pod Assembly Parts Diagram

54" Titan Zero-Turn Mower

Body Styling and Fuel Pod Assembly Parts Diagram

  • Title
1

Toro 133-4484

FUEL TANK ASM
(Superseded to 144-5303)

$296.99

$

Usually ships in 3-6 days

0

2

Toro 136-4180

ROD-HOLD DOWN

$12.99

$

Usually ships in 3-6 days

0

3

Toro 133-9307

POD-RH

$84.99

$

Usually ships in 3-6 days

0

4

Toro 133-9315

POD-LH

$84.99

$

Usually ships in 3-6 days

0

5

Toro 137-4119

CAP-FUEL, RATCHETING

$27.99

$

In Stock, only 1 left!

0

7

$2.99

$

In Stock, Qty 20+

0

8

Toro 139-7486-03

PANEL-CONTROL

$20.99

$

Usually ships in 3-6 days

0

9

Toro 139-7473

DECAL-PANEL, CONTROL

$12.99

$

Usually ships in 3-6 days

0

10

Toro 3258-166

SCREW-PRH

$0.99

$

In Stock, Qty 20+

0

11

Toro 120-7950

SCREW-SHOULDER

$2.99

$

In Stock, Qty 7

0

12

Toro 139-5808

CABLE-THROTTLE

$35.99

$

In Stock, only 1 left!

0

13

Toro 139-2402

CABLE-CHOKE

$22.99

$

Usually ships in 3-6 days

0

14

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

15

Toro 3220-3

NUT-HJ

$0.99

$

In Stock, Qty 17

0

16

Toro 136-4243

DECAL-LEVER, CONTROL (LH)

$3.49

$

Usually ships in 3-6 days

0

17

Toro 136-4244

DECAL-LEVER, CONTROL (RH)

$3.49

$

Usually ships in 3-6 days

0

19

Toro 109-0281

HOSE-FUEL

$15.99

$

Usually ships in 3-6 days

0

20

Toro 110-5701

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0

31

Toro 117-5399

ADAPTOR-ORIFICE

$3.49

$

Usually ships in 3-6 days

0

34

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

36

Toro 133-9308

COVER-BATTERY

$23.99

$

In Stock, Qty 5

0

37

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

38

Toro 136-4195

SCREW-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

39

Toro 121-5840

FASTENER

$6.49

$

In Stock, Qty 20+

0

41

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

42

Toro 138-2522

SLEEVE-FUEL LINE PROTECTOR

$7.49

$

Usually ships in 3-6 days

0

43

Toro 117-9569

HOSE-FUEL

$17.99

$

Usually ships in 3-6 days

0
