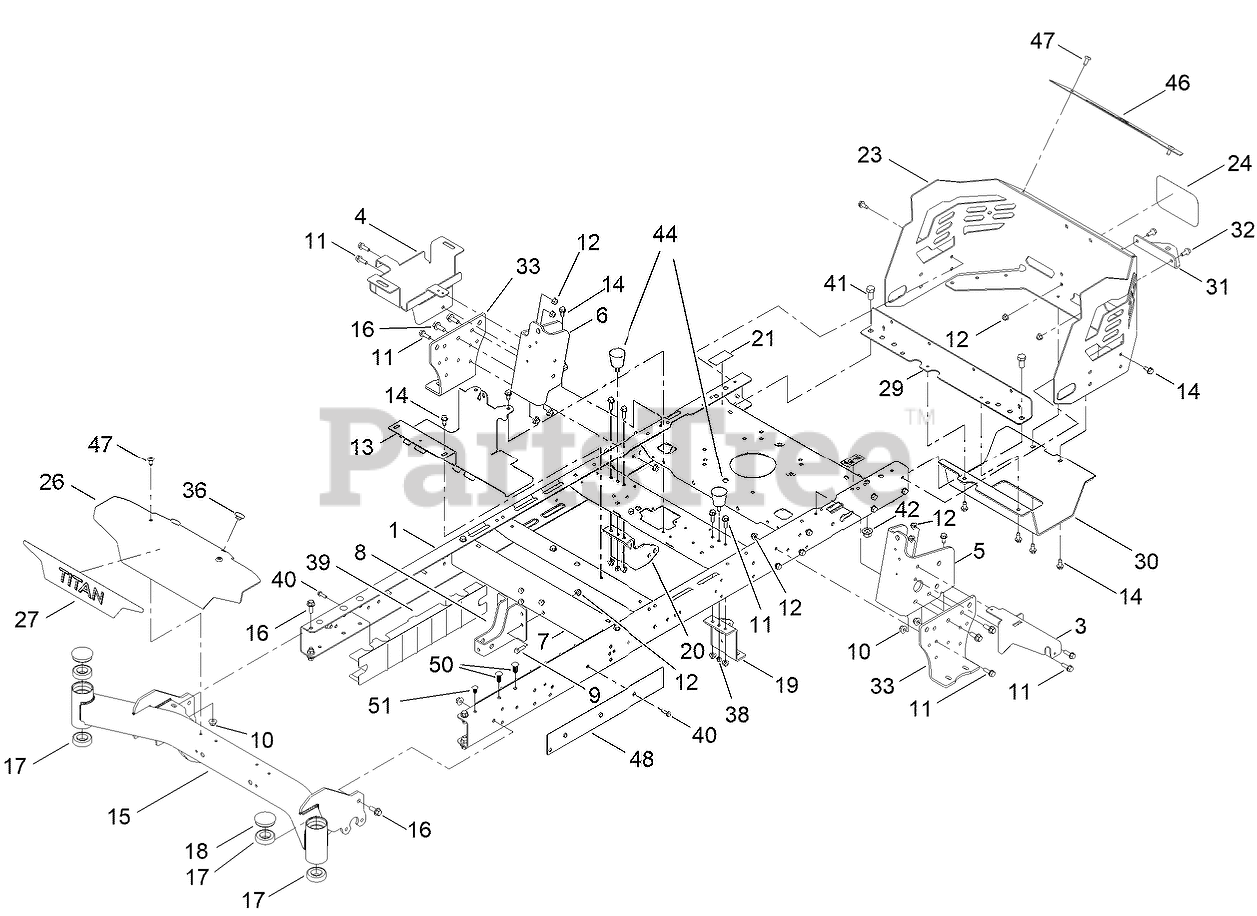

75314 (MR 4800) - Toro 48" Titan Zero-Turn Mower (SN: 411500000 - 999999999) Frame Assembly Parts Diagram

48" Titan Zero-Turn Mower

Frame Assembly Parts Diagram

  • Title

1

Toro 137-7023-01

FRAME ASM

$396.99

$

Usually ships in 3-6 days

0

3

Toro 133-7051-03

BRACKET-SUPPORT, POD (LH)

$29.99

$

Usually ships in 3-6 days

0

4

Toro 139-3570

TRAY-BATTERY

$54.99

$

Usually ships in 3-6 days

0

5

Toro 137-5068-01

BRACKET-MOUNTING, LH

$70.99

$

Usually ships in 3-6 days

0

6

Toro 137-5069-01

BRACKET-MOUNTING, RH

$70.99

$

Usually ships in 3-6 days

0

7

Toro 133-4413-01

BRACE-CROSS, LOWER

$65.99

$

Usually ships in 3-6 days

0

8

Toro 137-7022-01

BRACKET-MOUNT DAMPER, LOWER

$33.99

$

Usually ships in 3-6 days

0

9

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

11

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 133-4485-03

BRACKET-MOUNT

$74.99

$

Usually ships in 3-6 days

0

14

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

15

Toro 140-2706-01

FRONT AXLE ASM

$476.99

$

Usually ships in 3-6 days

0

16

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

17

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

18

Toro 138-7200

CAP-GREASE

$5.49

$

In Stock, only 2 left!

0

19

Toro 139-3211-01

MOUNT-HYDRO, FRONT (LEFT)

$15.99

$

Usually ships in 3-6 days

0

20

Toro 137-7020-01

MOUNT-HYDRO, FRONT (RIGHT)

$15.99

$

In Stock, only 1 left!

0

21

Toro 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

23

Toro 140-1031-03

GUARD-ENGINE

$310.99

$

Usually ships in 3-6 days

0

24

Toro 99-4693

DECAL

$25.99

$

In Stock, Qty 10

0

26

Toro 140-0365-01

PLATE-FRONT

$76.99

$

Usually ships in 3-6 days

0

27

Toro 139-7469

DECAL-TITAN

$9.49

$

Usually ships in 3-6 days

0

29

Toro 137-7016-01

CROSSMEMBER-REAR, WIDE

$29.99

$

Usually ships in 3-6 days

0

30

Toro 133-4429-03

GUARD-MUFFLER

$59.99

$

Usually ships in 3-6 days

0

31

Toro 117-1232-03

BRACKET-HITCH

$29.99

$

In Stock, only 2 left!

0

32

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

33

Toro 133-1201-03

MOUNT-HYDRO

$30.99

$

Usually ships in 3-6 days

0

36

Toro 135-0505

BUMPER-SEAT

$1.49

$

In Stock, Qty 6

0

38

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

39

Toro 137-5093

GUARD-RAIL

$29.99

$

Usually ships in 3-6 days

0

40

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

41

Toro 325-4

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

42

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

44

Toro 132-5058

BUMPER-RUBBER

$12.99

$

Usually ships in 3-6 days

0

46

Toro 140-1032-01

TRIM-GUARD, ENGINE

$26.99

$

Usually ships in 3-6 days

0

47

Toro 138-9753

SCREW

$1.49

$

In Stock, only 3 left!

0

48

Toro 140-0366-01

PLATE-FRAME

$14.99

$

Usually ships in 3-6 days

0

50

Toro 140-2149

RIVET-PUSH

$1.49

$

Usually ships in 3-6 days

0

51

Toro 133-0875

RIVET-PUSH

$0.99

$

Usually ships in 3-6 days

0
