75314 (MR 4800) - Toro 48" Titan Zero-Turn Mower (SN: 409400000 - 411415118) Engine and Muffler Assembly Parts Diagram

48" Titan Zero-Turn Mower

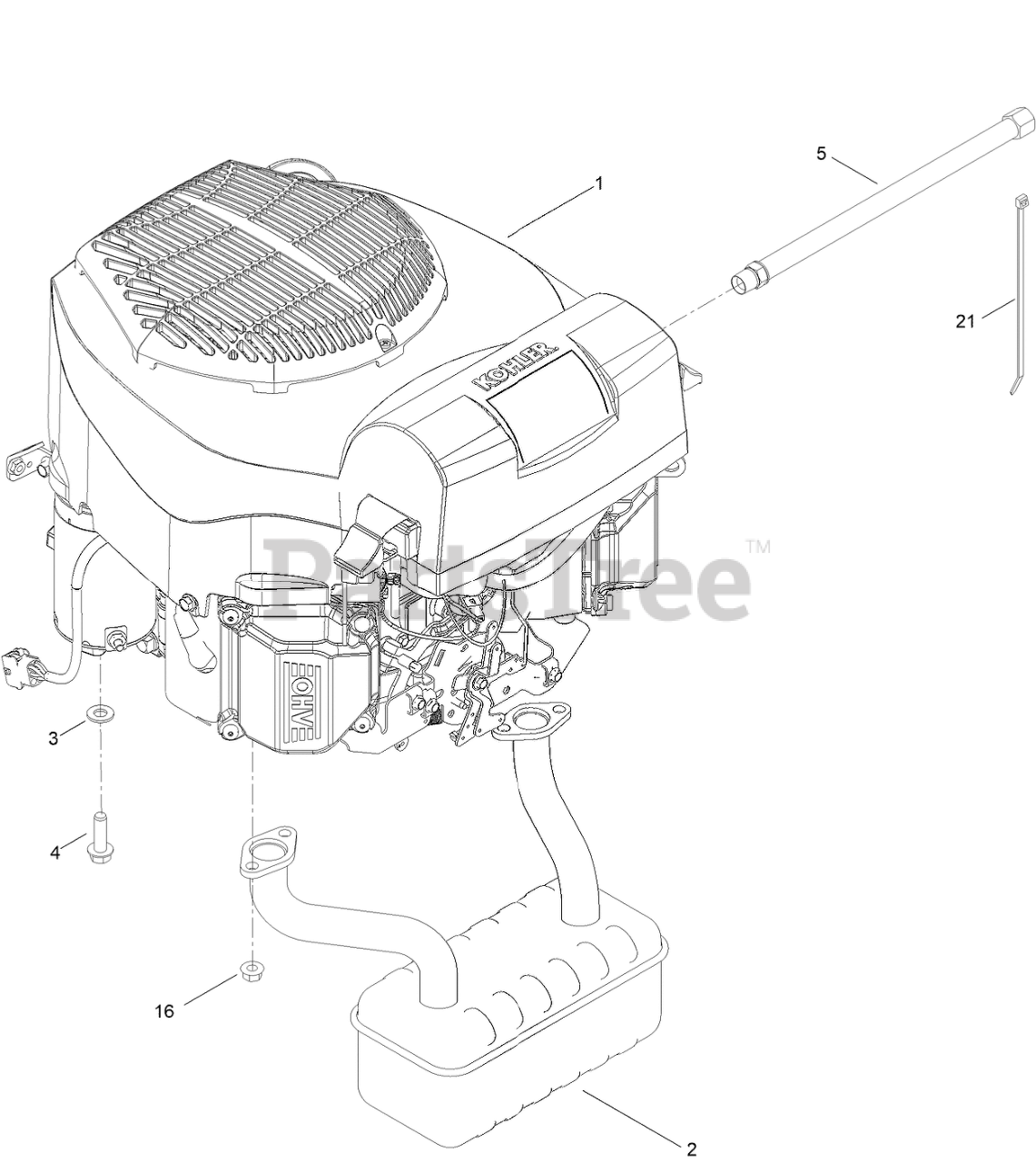

Engine and Muffler Assembly Parts Diagram

  • Title
1

ENGINE-KOHLER KT745

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1

ENGINE-KOHLER KT745

Note: Not serviced separately

$

$

Not available

2

Toro 139-5868

MUFFLER

$114.99

$

Usually ships in 3-6 days

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

4

Toro 32144-109

SCREW-THD

$4.99

$

In Stock, Qty 7

0

5

Toro 117-1261

HOSE-DRAIN, OIL

$29.99

$

In Stock, only 1 left!

0

16

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 11

0

21

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

99

Toro 110-6697

GASKET-EXHAUST

Note: Not illustrated

$

$

Not available
