75313 - Toro 60" Titan MyRide Zero-Turn Mower (SN: 410000000 - 412325116) Engine and Muffler Assembly Parts Diagram

60" Titan MyRide Zero-Turn Mower

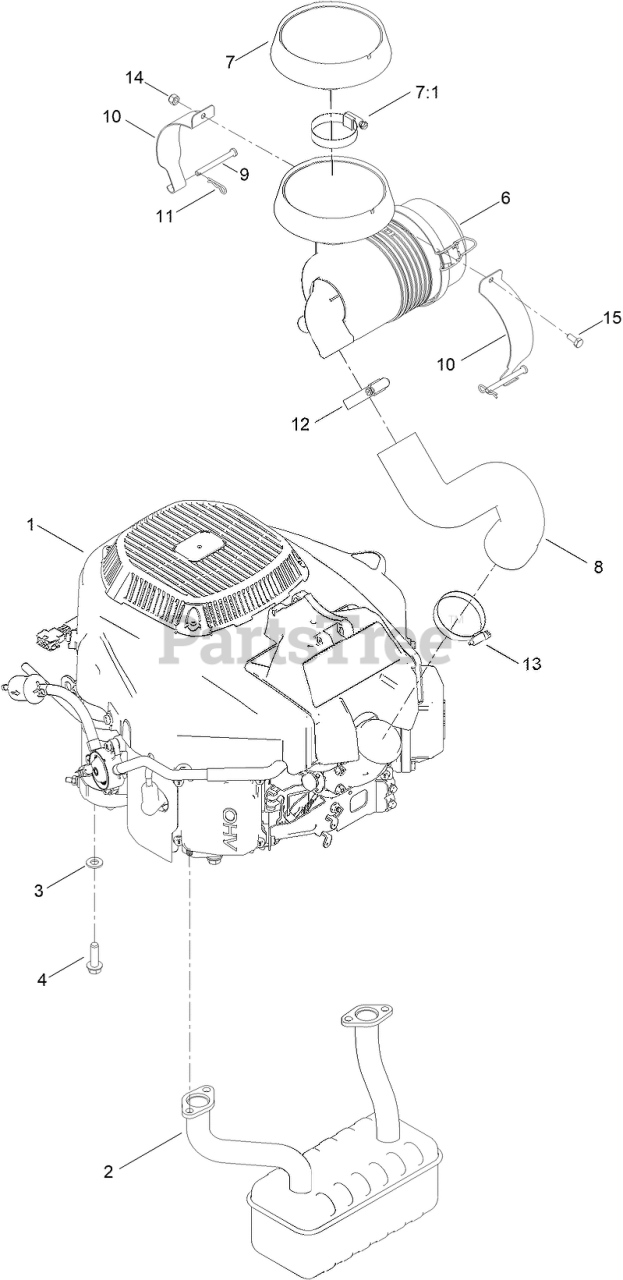

Engine and Muffler Assembly Parts Diagram

  • Title

1

Toro 136-7823

ENGINE-2P77F-HD

$2605.99

$

Usually ships in 3-6 days

0

2

Toro 139-5865

MUFFLER

$114.99

$

Usually ships in 3-6 days

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 32144-109

SCREW-THD

$4.99

$

In Stock, Qty 7

0

6

Toro 93-2190

AIR CLEANER ASM

$250.99

$

Usually ships in 3-6 days

0

7

Toro 136-7859

RAIN CAP KIT

$37.99

$

In Stock, only 1 left!

0

7:1

Toro 1-643009

CLAMP-HOSE

$13.99

$

Usually ships in 3-6 days

0

8

Toro 136-9242

HOSE-INTAKE

$28.99

$

Usually ships in 3-6 days

0

9

Toro 137-2011

PIN-CLEVIS

$1.49

$

Usually ships in 3-6 days

0

10

Toro 136-9243

STRAP-CANISTER, AIR

$11.99

$

Usually ships in 3-6 days

0

11

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

12

Toro 1-643009

CLAMP-HOSE

$13.99

$

Usually ships in 3-6 days

0

13

Toro 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

0

14

Toro 137-3088

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

15

Toro 137-3041

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

99

Toro 120-4317

GASKET-EXHAUST

Note: Not illustrated

$5.49

$

In Stock, only 2 left!

0
