75310 (5400 C) - Toro 54" Titan Zero-Turn Mower (SN: 410000000 - 411999999) Engine and Muffler Assembly Parts Diagram

54" Titan Zero-Turn Mower

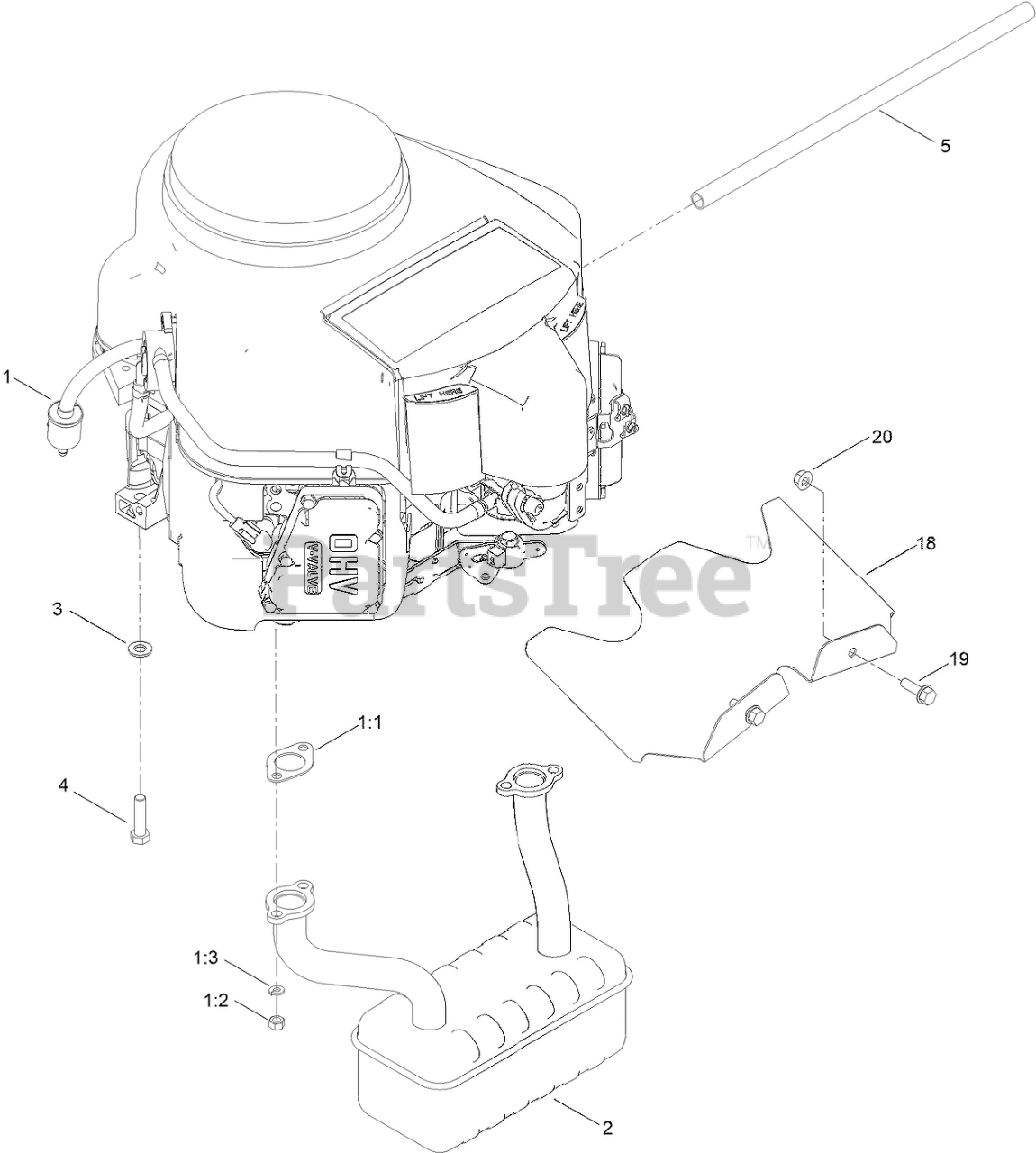

Engine and Muffler Assembly Parts Diagram

  • Title

1

ENGINE-KAWASAKI, FR651V-S12-R

Note: Not serviced separately

$

$

Not available

1

ENGINE-KAWASAKI, FR651V-S12-R

Note: This is a Kawasaki part. Please use the Kawasaki Engine catalog.

$

$

Not available

1:1

Toro 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

1:2

Toro 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

1:3

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

2

Toro 139-5867

MUFFLER

$142.99

$

Usually ships in 3-6 days

0

3

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

4

Toro 323-50

BOLT-HH

$1.49

$

In Stock, Qty 17

0

5

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

Usually ships in 3-6 days

0

18

Toro 140-5126-03

SHIELD-HEAT

$47.99

$

Usually ships in 3-6 days

0

19

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

20

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0
