7530 (54AH45F-710) - Cub Cadet Compact Tractor Hydraulic Lines (Part 2) Parts Diagram

Compact Tractor

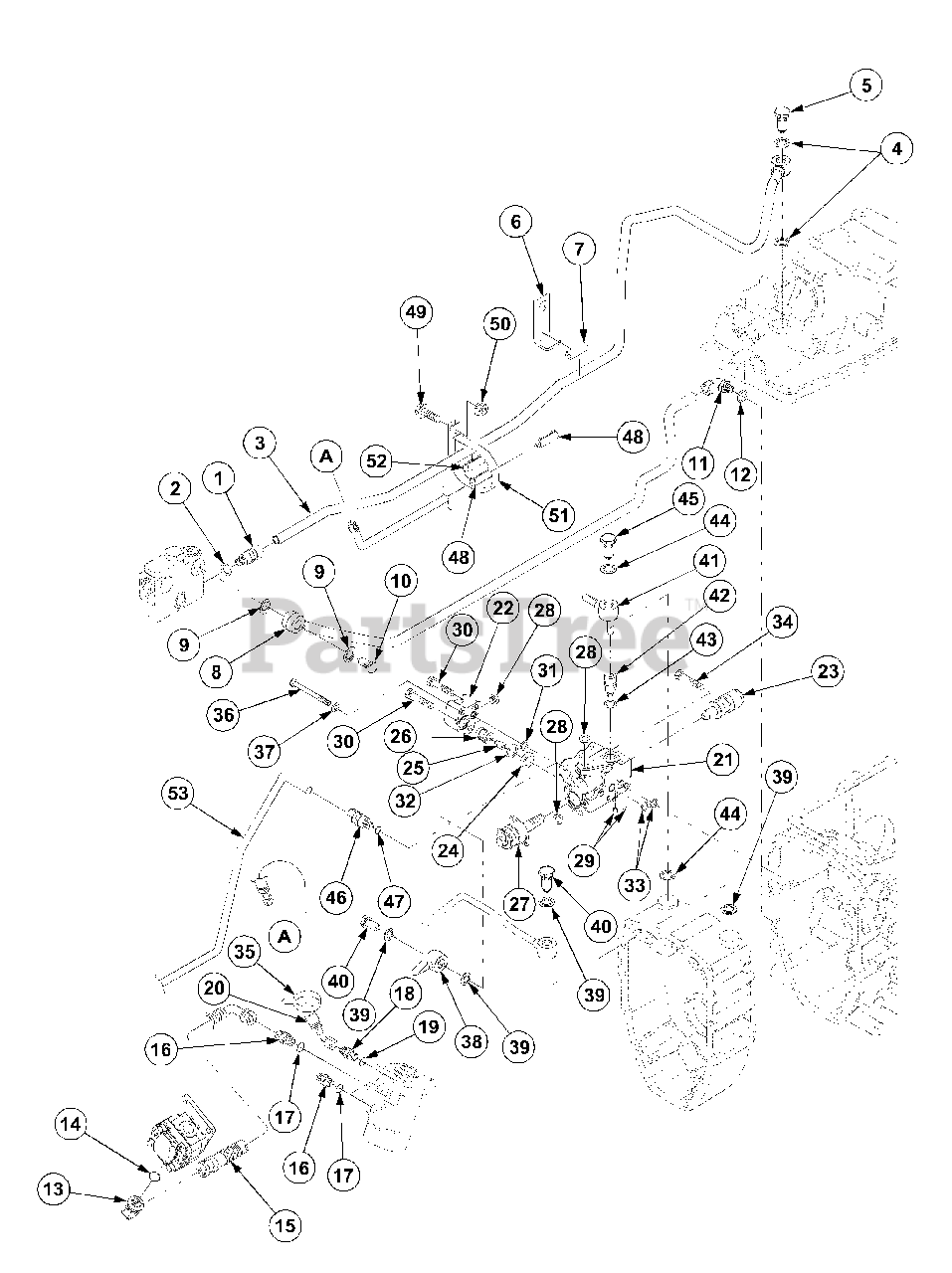

Hydraulic Lines (Part 2) Parts Diagram

  • Title
1

Cub Cadet MA-06203115170

Nipple

Note: (Includes Ref.No. 2)

$

$

Not available

$

$

Not available

3

Cub Cadet MA-19572591AG0

Pipe A,Pressure

$

$

Not available

4

Cub Cadet MA-08331001600

Washer,Seal
(Superseded to MA-08331001601)

$

$

Not available

$

$

Not available

$

$

Currently unavailable

$

$

Not available

8

Cub Cadet MA-19572594AG1

Pipe B,Return

$

$

Not available

9

Cub Cadet MA-08331001600

Washer,Seal
(Superseded to MA-08331001601)

$

$

Not available

$

$

Not available

11

Cub Cadet MA-06205115170

Elbow

Note: (Includes Ref.No.12)

$

$

Not available

$

$

Not available

13

Cub Cadet MA-06313117130

Elbow 90

Note: (Includes Ref.No.14)

$

$

Not available

$

$

Not available

$

$

Not available

16

Cub Cadet MA-06311113130

Adapter

Note: (Includes Ref.No.17)

$

$

Not available

$

$

Not available

18

Cub Cadet MA-60001125000

Adapter

Note: (Includes Ref.No.19)

$

$

Not available

$

$

Not available

$

$

Not available

Cub Cadet MA-19572550AG0

Ind Valve Assy

Note: Includes 21-33

$

$

Not available

$

$

Currently unavailable

$

$

Currently unavailable

23

Cub Cadet MA-19572553000

Relief Valve Ass'y.

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

30

Cub Cadet MA-F1540108045

Bolt,w/Washer

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

34

Cub Cadet MA-F1540108045

Bolt,w/Washer

$

$

Not available

$

$

Not available

$

$

Not available

$

$

Not available

38

Cub Cadet MA-19572561AG0

Pipe Ind, Pressure

$

$

Not available

39

$

$

Not available

$

$

Not available

41

$

$

Not available

42

Cub Cadet MA-06203110130

Nipple

Note: (Includes Ref.No.43)

$

$

Not available

$

$

Not available

44

$

$

Not available

$

$

Not available

46

Cub Cadet MA-06203112170

Nipple

Note: (Includes Ref.No.47)

$

$

Not available

$

$

Not available

$

$

Not available

49

Cub Cadet MA-H1540108025

Bolt,w/Washer

$

$

Not available

50

$

$

Not available

$

$

Not available

$

$

Not available

53

Cub Cadet MA-19572589AG0

Pipe C,Return

$

$

Not available
