7530 (54AF45F-710) - Cub Cadet Compact Tractor Governor Parts Diagram

Compact Tractor

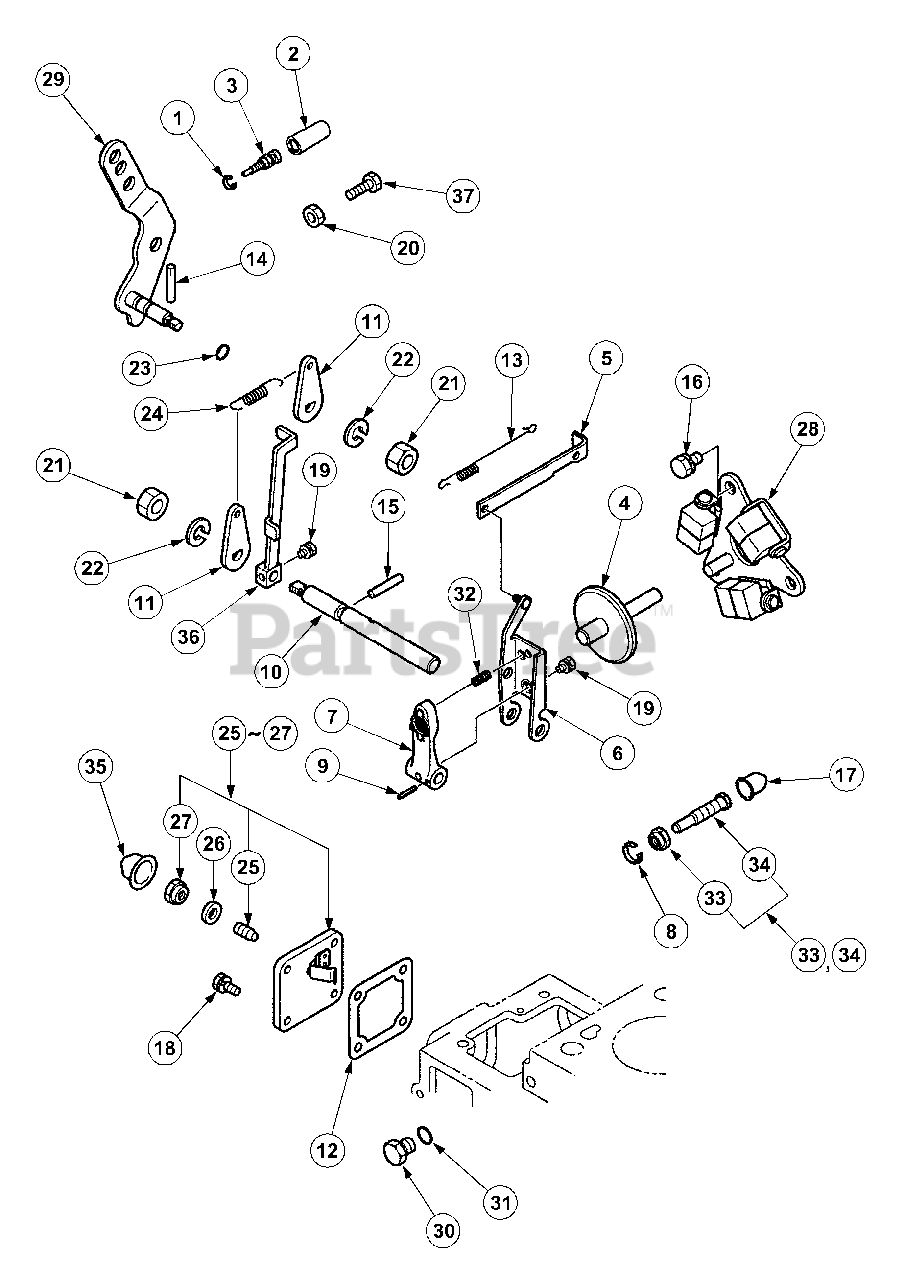

Governor Parts Diagram

  • Title

1

Cub Cadet MA-30L63-02600

C-Ring

$

$

Not available

2

Cub Cadet MA-30L63-02400

Cover

$

$

Not available

3

Cub Cadet MA-30L63-00030

Bolt

$

$

Not available

4

Cub Cadet MA-30H63-04200

Shaft Assy

$

$

Not available

5

Cub Cadet MA-30A63-02600

Tie Rod

$

$

Not available

6

Cub Cadet MA-30H63-06010

Lever Assy,Governor

$

$

Not available

7

Cub Cadet MA-30H63-15200

Lever,Tension

$

$

Not available

8

Cub Cadet MA-30L63-00700

C-Ring

$

$

Not available

9

Cub Cadet MA-F2850-03020

Pin,Spring
(Superseded to MA-05500003020)

$

$

Not available

10

Cub Cadet MA-30H63-15700

Shaft,Governor

$

$

Not available

11

MA-MM407-03502

Lever,Governor

$

$

Not available

12

Cub Cadet MA-30A63-00101

Gasket,Tie Rod

$

$

Not available

13

Cub Cadet MA-MM409182

Spring,Tie Rod

$

$

Not available

14

Cub Cadet MA-K8712630

Pin,Governor

$

$

Not available

15

Cub Cadet MA-MM409239

Pin,Governor

$

$

Not available

16

Cub Cadet MA-MF241222

Bolt,w/Washer

$

$

Not available

17

Cub Cadet MA-30L63-00800

Cover,Torque

$

$

Not available

18

Cub Cadet MA-MF241224

Bolt,w/Washer

$

$

Not available

19

Cub Cadet MA-MF244826

Bolt,w/Washer
(Superseded to MA-H1440106020)

$3.49

$

Usually ships in 3-6 days

0

20

Cub Cadet MA-MF430004

Nut

$

$

Not available

21

Cub Cadet MA-MF430725

Nut,Jam

$

$

Not available

22

Cub Cadet MA-MF450405

Washer,Spring

$

$

Not available

23

Cub Cadet MA-MF520002

O-Ring

$

$

Not available

24

Cub Cadet MA-MM438592

Spring,Governor

$

$

Not available

Cub Cadet MA-MM409213

Cover Assy,Tie

Note: Includes 25-27

$

$

Not available

25

Cub Cadet MA-MM409167

Screw,Adjusting

$

$

Not available

26

Cub Cadet MA-MF660031

Gasket

$

$

Not available

27

Cub Cadet MA-MM409168

Nut,Special

$

$

Not available

28

Cub Cadet MA-30H63-10010

Weight Assy,Governor

$

$

Not available

29

Cub Cadet MA-30H63-04060

Lever Assy,Speed

$

$

Not available

30

Cub Cadet MA-30H63-15800

Bolt

$

$

Not available

31

Cub Cadet MA-MF660064

Gasket

$

$

Not available

32

Cub Cadet MA-30H63-08700

Spring

$

$

Not available

Cub Cadet MA-30L63-00020

Screw Assy,Rack

Note: Includes 33,34

$

$

Not available

33

Cub Cadet MA-30L63-00600

Nut,Torque

$

$

Not available

34

Cub Cadet MA-31A63-05601

Screw,Pack Set

$

$

Not available

35

Cub Cadet MA-MM409169

Cap,Sealing

$

$

Not available

36

Cub Cadet MA-30H63-05600

Lever,Tor Set

$

$

Not available

37

Cub Cadet MA-MM401082

Bolt,Low

$

$

Not available
