7524 RS (1696266-00) - Murray 24" Snow Thrower, 7.5hp (2012) Engine & Frame Group Parts Diagram

24" Snow Thrower, 7.5hp

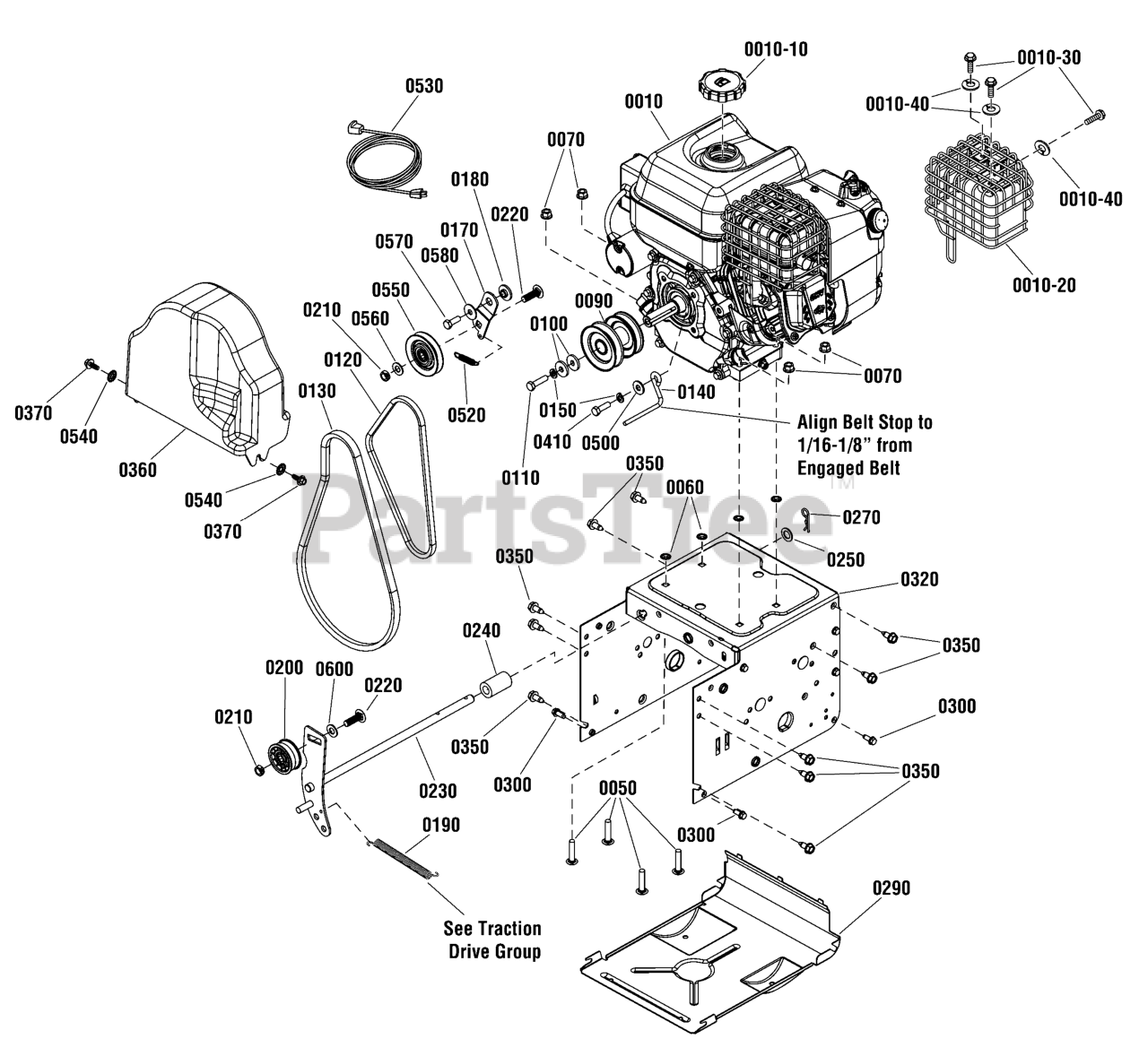

Engine & Frame Group Parts Diagram

  • Title

0010

Murray 10D132-0115-F8

* ENGINE, 7.5TP Briggs & Stratton

Note: (Engine Model: 10D132-0115-F8)

$

$

Currently unavailable

0010-10

Murray 794641

CAP, Fuel Tank

$20.99

$

In Stock, only 2 left!

0

0010-20

Murray 591619

GUARD, Muffler

$47.99

$

Usually ships in 2-12 days

0

0010-30

Murray 798976

SCREW

$4.99

$

Usually ships in 2-12 days

0

0010-40

Murray 590457

WASHER

$3.49

$

Usually ships in 2-12 days

0

0050

Murray 703296

BOLT, Carriage, 5/16-18 x 1 1/2

$4.49

$

In Stock, only 4 left!

0

0060

Murray 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 20+

0

0070

Murray 703115

NUT, Flange Nylock, 5/16-18

$3.49

$

In Stock, Qty 20+

0

0090

Murray 1754039YP

PULLEY, Engine

$59.99

$

Usually ships in 2-12 days

0

0100

Murray 703298

WASHER, 5/16

$4.49

$

Usually ships in 2-12 days

0

0110

Murray 703299

CAPSCREW, Hex Head, 5/16-24 x 1-1/4, G5

$4.99

$

Usually ships in 2-12 days

0

0120

Murray 1753900YP

BELT, 3L 24.93

$23.99

$

Usually ships in 2-12 days

0

0130

Murray 1751417YP

BELT, Auger Drive, 4L 38.17

$28.99

$

Usually ships in 2-12 days

0

0140

Murray 1754043YP

BELT GUIDE

$5.49

$

Usually ships in 2-12 days

0

0150

Murray 703116

LOCKWASHER, Spring, 5/16

$3.49

$

In Stock, Qty 20+

0

0170

Murray 1754041YP

IDLER ARM

$6.99

$

Usually ships in 2-12 days

0

0180

Murray 1501065MA

BUSHING, Idler Bracket

$5.49

$

In Stock, only 2 left!

0

0190

Murray 165X159MA

SPRING, Extension Auger Idler

$6.99

$

In Stock, Qty 9

0

0200

Murray 1502120MA

IDLER, Plastic Ball Bearing

$21.99

$

In Stock, Qty 6

0

0210

Murray 703230

NUT, Hex Jam, 3/8-16

$4.99

$

In Stock, Qty 9

0

0220

Murray 703227

CARRIAGE BOLT, 3/8-16 x 1-1/4

$4.99

$

Usually ships in 2-12 days

0

0230

Murray 1501226YZMA

IDLER ASSEMBLY, Auger

$52.99

$

Usually ships in 2-12 days

0

0240

Murray 1501200MA

SPACER, 1/2 ID x 1 OD x 1-3/4"

$5.99

$

Usually ships in 2-12 days

0

0250

Murray 1960027SM

WASHER, Flat, 1/2
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

0270

Murray 703300

PIN, Hair, 3/32 x 1 5/8

$3.99

$

In Stock, Qty 20+

0

0290

Murray 1753969BMYP

COVER, Bottom

$75.99

$

Usually ships in 2-12 days

0

0300

Murray 703054

SCREW, Hex Washer Head, 1/4-20 x 5/8

$4.49

$

In Stock, Qty 5

0

0320

Murray 1754891BNYP

FRAME BOX

$136.99

$

Usually ships in 2-12 days

0

0350

Murray 703228

SCREW, Washer Head Taptite, 5/16-18 X 3/4

$4.49

$

In Stock, Qty 20+

0

0360

Murray 1754330YP

COVER, Belt

$34.99

$

Usually ships in 2-12 days

0

0370

Murray 1751355YP

SCREW, Hex Washer Head, Tap, SEMS, 1/4-20 x 3/4

$6.49

$

Usually ships in 2-12 days

0

0410

Murray 703301

BOLT, Hex, 5/16-24 x 1

$3.99

$

In Stock, only 2 left!

0

0500

Murray 703302

WASHER, 5/16

$4.49

$

In Stock, Qty 20+

0

0520

Murray 1754481YP

SPRING, Idler Extension

$3.99

$

Usually ships in 2-12 days

0

0530

Murray 6219MA

CORD, Electric, 10FT. 110V

$40.99

$

In Stock, only 2 left!

0

0540

Murray 7091890SM

WASHER, Internal/External Lock 1/4"

$4.49

$

Usually ships in 2-12 days

0

0550

Murray 703056

PULLEY, Idler

$42.99

$

In Stock, Qty 6

0

0560

Murray 017X53MA

WASHER, Flat 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0570

Murray 703303

CAPSCREW, Hex Head, 5/16-24 x 7/8, GR5

$4.49

$

Usually ships in 2-12 days

0

0580

Murray 017X53MA

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 19

0

0600

Murray 1670971SM

WASHER, Thrust

$4.49

$

In Stock, Qty 6

0
