7524 RS (1696266-00) - Murray 24" Snow Thrower, 7.5hp (2012) Discharge Chute Group Parts Diagram

24" Snow Thrower, 7.5hp

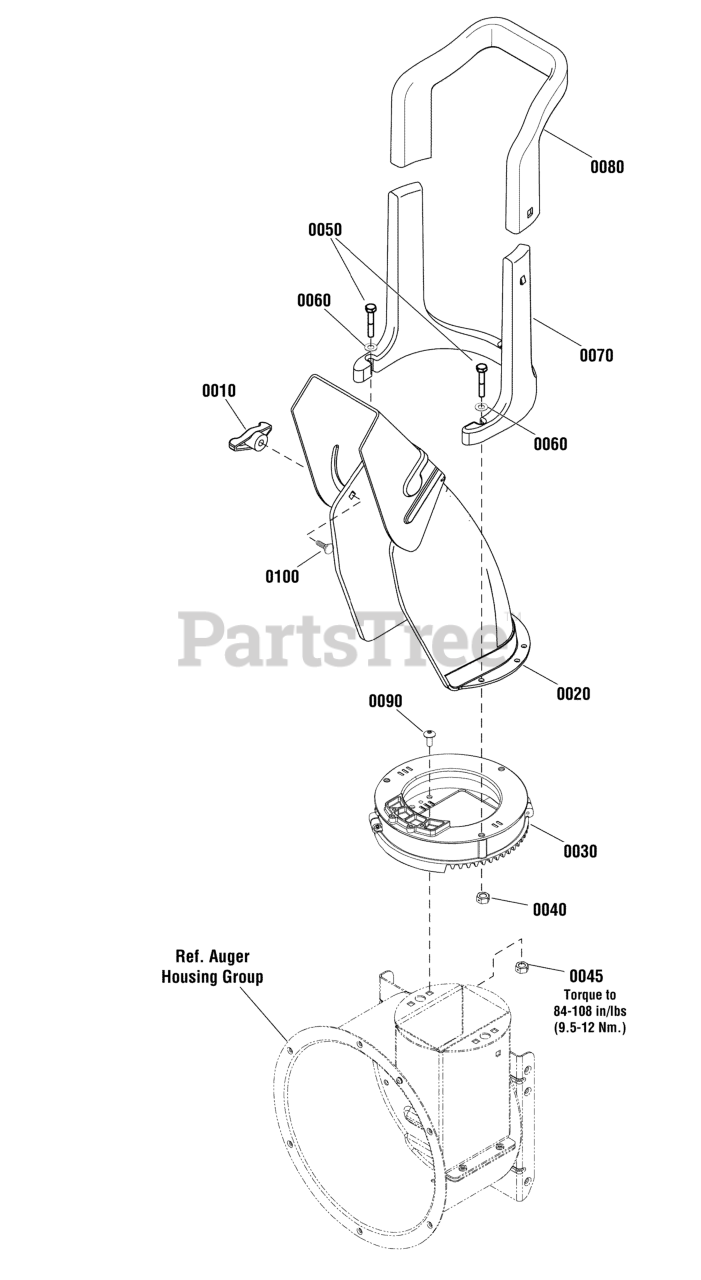

Discharge Chute Group Parts Diagram

  • Title
0010

Murray 7035744YP

KNOB, Wing, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

0020

Murray 1736313YP

CHUTE ASSEMBLY

$107.99

$

Usually ships in 2-12 days

0

0030

Murray 1751886YP

CHUTE ROTATION ASSEMBLY

$48.99

$

In Stock, only 1 left!

0

0040

Murray 15X145MA

NUT, Hex Nylock, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

0045

Murray 1923358SM

NUT, Hex Centerlock, 1/4-20
(Superseded to 703954)

$4.99

$

In Stock, Qty 20+

0

0050

Murray 51374YP

CAPSCREW, Hex Head, 1/4-20 x 1-1/2, G5
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

0060

Murray 017X37MA

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

0070

Murray 1752117YP

HANDLE, Lower

$49.99

$

In Stock, only 1 left!

0

0080

Murray 1752243YP

HANDLE, Upper

$48.99

$

In Stock, only 1 left!

0

0090

Murray 880845YP

SCREW, Torx, 1/4-20 x 5/8

$3.49

$

Usually ships in 2-12 days

0

0100

Murray 002X97MA

BOLT, Carriage, 5/16-18 x 1-1/2
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0
