7524 (31AS6R72101) - Troy-Bilt Storm 24" Snow Thrower (2004) Drive & Engine Accessories Parts Diagram

Storm 24" Snow Thrower

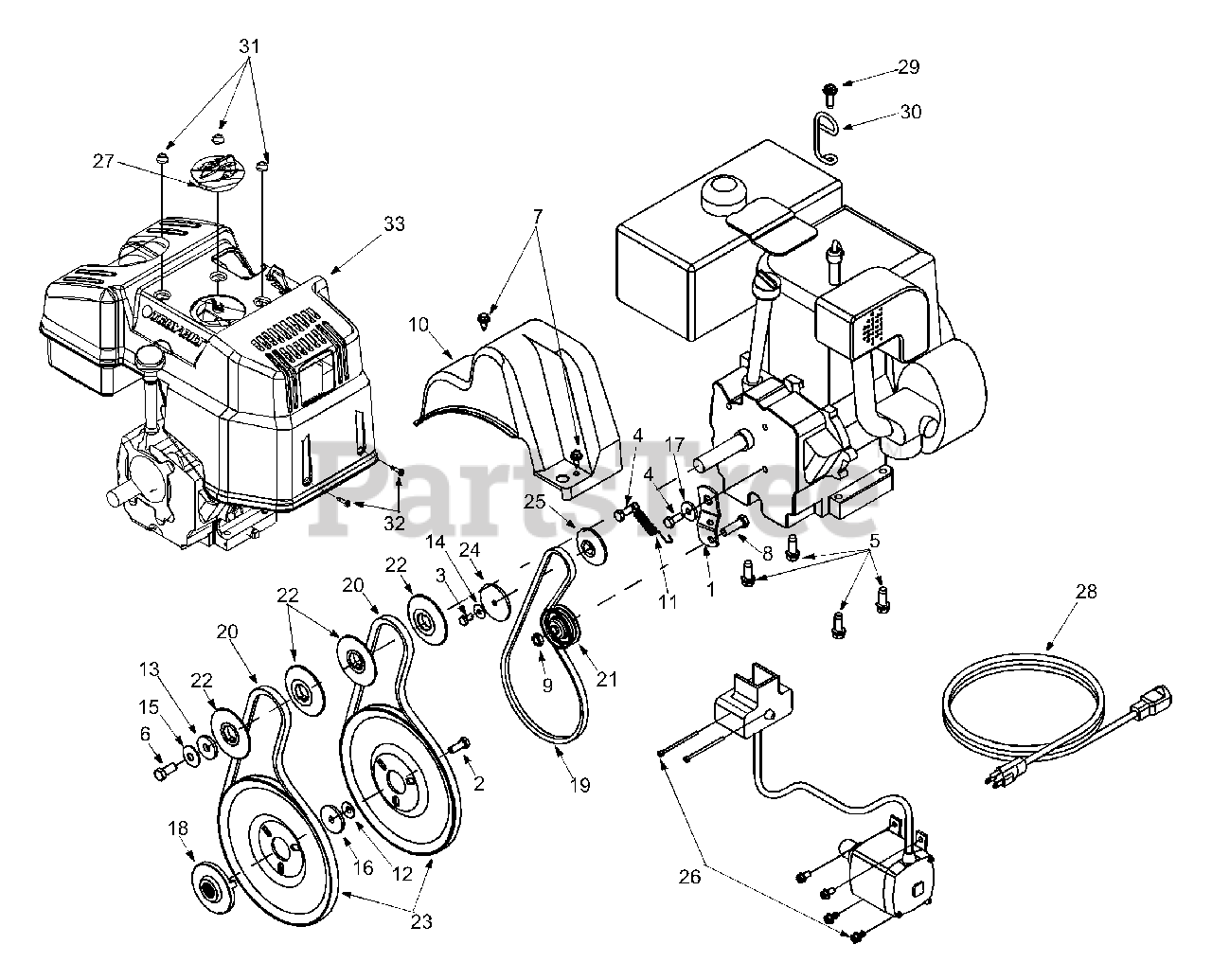

Drive & Engine Accessories Parts Diagram

  • Title

1

MTD 05896A

Idler Brkt.

Variations

Troy-Bilt 05896A-0637

BRACKET-IDLR-CLUTCH - POWDER BLACK (0637)

$

$

Not available

$

$

2

Troy-Bilt 710-1245B

Hex Hd. Cap Screw 5/16-24 Thd.

$8.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 710-0230

Hex Hd. Cap Screw 1/4-28 Thd.

$

$

Not available

4

Troy-Bilt 710-0627

Hex Hd. Cap Screw 5/16-24 Thd.

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-0654A

TT-Tap Screw 3/8-16 Thd.

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 710-0696

Hex Hd. Screw 3/8-24

$6.99

$

In Stock, only 2 left!

0

7

Troy-Bilt 710-1652

TT-Tap Screw 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-3005

Hex Hd. Cap Screw 3/8-16 Thd.

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 712-0181

Jam Nut

$4.49

$

In Stock, only 3 left!

0

10

Troy-Bilt 731-1324

Belt Cover

$21.99

$

In Stock, only 4 left!

0

11

Troy-Bilt 732-0710

Extension Spring
(Superseded to 932-0710)

$7.49

$

In Stock, Qty 16

0

12

Troy-Bilt 736-0242

Bell Washer

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0247

Fl-Washer .406 I.D. x 1.25 O.D.

$9.49

$

In Stock, Qty 12

0

14

Troy-Bilt 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 736-0505

Fl-Washer .34 I.D. x .50 O.D.

$6.49

$

In Stock, Qty 11

0

17

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 748-0360

Pulley Adapter
(Superseded to 948-0360)

$22.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 754-0346

V-Belt 3/8
(Superseded to 954-0346)

$28.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 754-0430B

Belt
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 756-0313

Flat Idler Pulley

$26.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 756-0569

Half Pulley

$10.99

$

Usually ships in 3-6 days

0

23

Troy-Bilt 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 756-0986

Half Pulley

$

$

Not available

25

Troy-Bilt 756-0987

Half Pulley
(Superseded to 956-0987)

$

$

Not available

26

Troy-Bilt OEM-390-987

Electric Start Kit
(Superseded to TC-33329H)

$

$

Not available

27

Troy-Bilt 684-04011

Spark Plug Cap

$15.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 629-0071

Extension Cord
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0

29

Part of Engine

$

$

Not available

30

Troy-Bilt 732-0705

Cable Control Wire

$11.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 710-04082

Screw, #10-16 x .75

$

$

Not available

33

Troy-Bilt 684-04014A

Engine Shroud
(Superseded to 984-04014A)

Note: (Incl. Ref. 27)

$

$

Not available
