7524 (31AS6R72063) - Troy-Bilt Storm 24" Snow Thrower (2004) Gear Box Parts Diagram

Storm 24" Snow Thrower

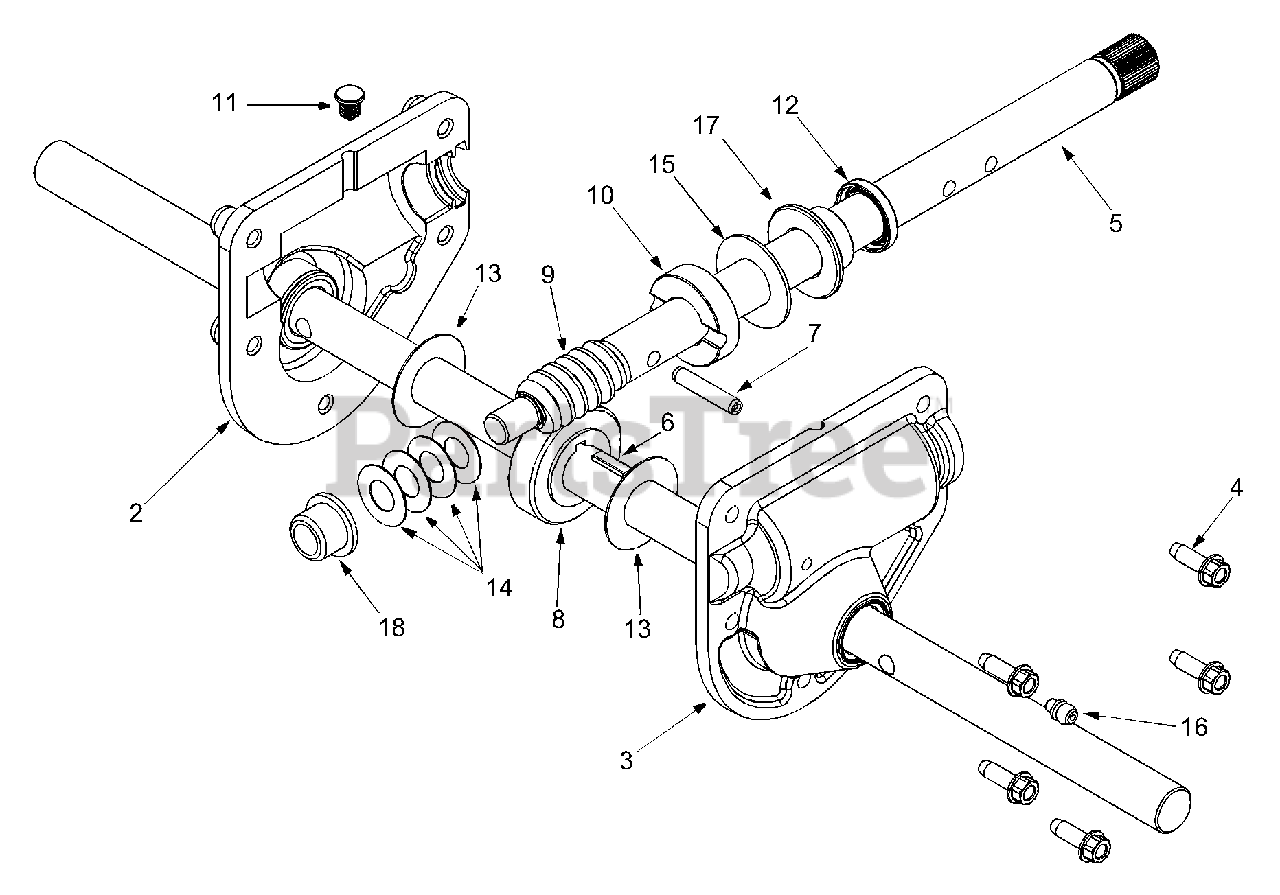

Gear Box Parts Diagram

  • Title

1

Troy-Bilt 618-0414A

Auger Gearbox Ass'y Comp.
(Superseded to 918-0414B)

$

$

Not available

2

Troy-Bilt 618-0123

Housing Assembly, RH
(Superseded to 918-0123A)

$52.99

$

In Stock, Qty 10

0

3

Troy-Bilt 618-0418

Housing Assembly, LH
(Superseded to 918-0418A)

$62.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0642

Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 717-0526

Worm Shaft .75 O.D.
(Superseded to 717P0526)

$108.99

$

In Stock, Qty 6

0

6

Troy-Bilt 714-0161

Hi-Pro Key
(Superseded to 914-0161)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 715-0143

Spirol Pin

$4.99

$

In Stock, Qty 15

0

8

Troy-Bilt 717-0528

Worm Gear 20T
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

9

Troy-Bilt n/a

n/a

Note: see ref 5

$

$

Currently unavailable

10

Troy-Bilt 718-0186

Thrust .75 I.D. x .415 O.D.

$8.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 721-0325

Plug 1/4 x .437

$4.49

$

In Stock, only 4 left!

0

12

Troy-Bilt 721-0327

Oil Seal .75 I.D. x 1.73 O.D.

$6.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 736-0351

Fl-Wash. .760 I.D. x 1.5 O.D.

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 736-0369

Fl-Wash. .508 I.D. x 1.0 O.D.

$4.49

$

In Stock, Qty 8

0

15

Troy-Bilt 736-0445

Fl-Wash. .76 I.D. x 1.50 O.D.

$4.49

$

In Stock, only 3 left!

0

16

Troy-Bilt 737-3000

Lube Fitting 3/16 Drive
(Superseded to 937-3000)

$4.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 741-0662

Flange Bearing

$10.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 741-0663

Flange Bearing

$9.99

$

In Stock, Qty 20+

0

Troy-Bilt 711-0908A

Auger Shaft 24"

$

$

Not available
